Dual camera 5Mega pixel VGA camera and USB camera document visual presenter

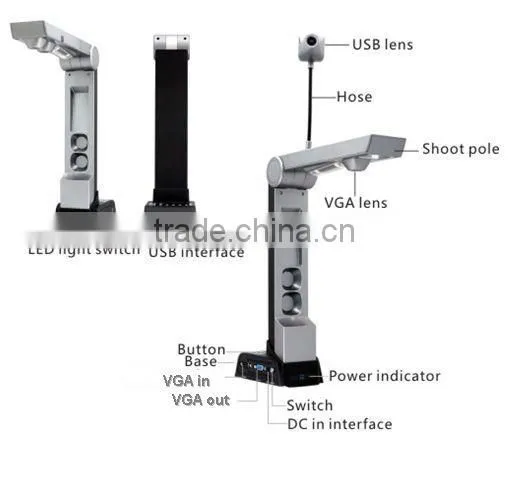

Features at a Glance
Dual-mode doc cam: stream live images directly to your projector or to PC or Mac
Swiveling head make your captures quick and effortless
Built-in LED light, automatic resolution and exposure, and a suite of other smart features
Captures docs, textbooks, devices, 3D objects and more without taking up too much space
Hardware Specifications:
| Interface | VGA out, VGA in, USB2.0, DC in | |
| Unfolded size | 312 x 305x 81 mm | |
| Folded size | 312 x 122x 81 mm | |
| Net weight | 856.7±0.3g | |
| Accessories | VGA Cable, USB cable, DC adapter, Remote controller, Software CD, Scanning mat | |
| Camera 1 | Camera 2 | |
| Output interface | USB | VGA |
| Sensor | 1/2.5inch CMOS, 3 megapixels | 1/2.5inch CMOS,2 mega pixels |
| Resolution | 2048x1536,1920x1080,800x600 | 1280x1024,1280x800,1024x768,800x600 |
| Frame rate | 15fps @2592x1944,1080P (16:9), 30fps@800x600 | max. 30fps@640x480 |
| Focus type | Fixed | Auto |
| Shooting area | A4 (210mm x 297mm) | 360 degrees ajustable angle |
| Power supply | 5V USB | 5V DC adapter |
| Connect to | Computer | Projector or LCD monitor |
| Micro phopne | Yes | No |
| Software | Yes | No need |
| Remote control | No | Yes |

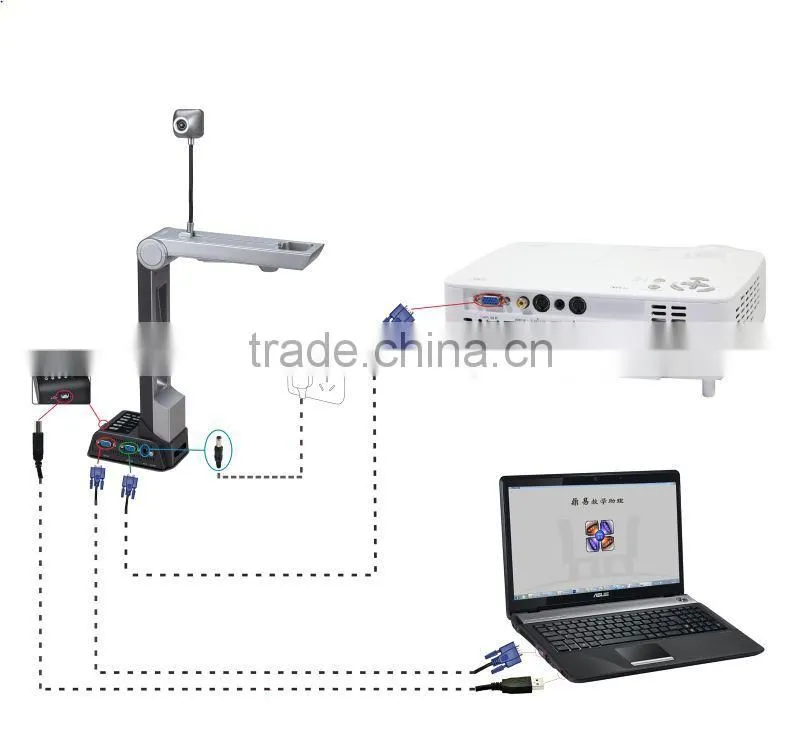

Hardware Operation
VGA mode: Connect it with any VGA displayer such as projector or LCD monitor via VGA cable, operate it through remote controller or key buttons.
USB mode: Connect it with PC via USB cable, operate it with the multifunctional application software which has been pre-installed in PC, whatever documents, books, pictures, objects and other teaching materials can be gained easily and quickly.
Working in VGA mode
1.Plug AC adapter to DC in port of the product, and press“ONOFF”button to turn on product.
2.Connect the product with projector or any VGA displayer via VGA cable
3.Press the function key or click the remote controller to operate the product
Working in PC mode
1.Power on product
2.Connect product to PC via USB cable, the scanner will be detected by computer.
(The way to check whether scanner connected with computer well is open “device management” from computer and see if there is new USB video device under option “Image device”.)
Remarks: In VGA mode, press the button of PC/Visualizer, the VGA signal will be transfer to PC mode.
When used with PC, there should be a special software be installed in PC.
Details about how to operate, please refer the software manual in software CD-ROM
Other products for optional choice
Company information
We are an ISO9001 2008 & ISO14001 2004 certificated manufacturer,specialized in portable office equipment and visual Educational device, product are portable fast speed scanner, foldable e document camera,apply for office and visual presenter,visualizer,all in one multi-media machine apply for classroom. Those products work as whiteboard accessories and have been sold out together with whiteboard. All product have been CE, FCC, RoHS certificated,we have our own brand, and sell products to many oversea countries.
