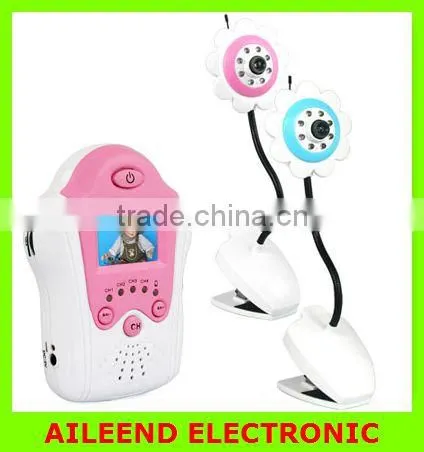

1.5 Inch 2.4GHZ Wireless Baby Monitor

Common factors

Frequency

2.4 GHz

Channel

4 channel (2411 MHz, 2432 MHz, 2450 MHz, 2468 MHz)

Type of Modulation

FM (Frequency modulation)

Antenna Types

Built-in Omni-directional antenna

Flower Camera

Image sensor

1/3" CMOS

Effective Pixels

PAL: 628 (H) x 582 (V) , NTSC: 510 (H) x 492 (V)

Night Vision Distance

5 m range

View Angles

62 degrees (Vertical)

Minimum Illumination

1.8 Lux, f/1.5

Lens

6.0mm f/1.8

Operating Temperature

0 ~ 40 °C (32 ~ 104 °F)

Transmission range

100 m (328 feet) without block

Power

DC 5 V AC Power Adapter only

Size

approx. 290 (L) x 84 (W) x 90 (D) mm (11.4' x 3.31' x 3.54' inch)

Weight

approx. 143 g

Receiver

Display

1.5" inch TFT Color LCD

Brightness

Adjustable brightness control

Volume

Adjustable voice control

Power

DC 5 V AC Power Adapter or 3.6 V Rechargeable Lithium ion Battery (Included)

Recharging Time

2 ~ 3 hours

Battery Life

1 to 2 hours for Rechargeable Battery (With low battery indication)

Receiver Sensitivity

-85 DBM

Operating Temperature

0 ~ 40 °C (32 ~ 104 °F)

Size

approx. 113 (L) x 78 (W) x 26 (D) mm (4.61' x 3.11' x 1.73' inch)

Weight

approx. 124 g
