Specifications

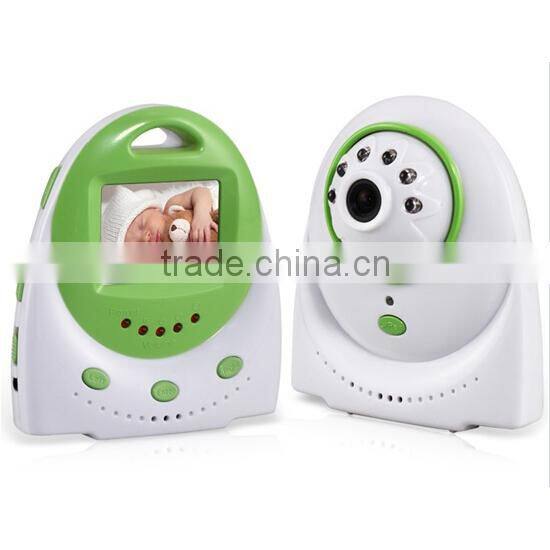

2.4GHz Wireless Digital Baby Monitor with Two Way Audio and Temperature Alarm and TV out function
2.4GHz Wireless Digital Baby Monitor with Two Way Audio and Temperature Alarm and TV out function
Hot spots:
- 1. high resolution 2.4 LCD display screen
- 2. Long-distance transmission: Up to 200-300m in open air
- 3. Receiving Frequency: 2,400~2483MHz (ISM Band)
- 4. Talkback: Two-way talk, half-duplex
Detailed introduction:
Features:
- 1. All of our items are brand new
- 2. Adopt 2.4GHz Frequency transmission,accord with FCC,CE Standard
- 3. high resolution 2.4 LCD display screen
- 4. Receiving Frequency: 2,400~2483MHz (ISM Band)
- 5. Support one receiver can connect 4 transmitters
- 6. Long-distance transmission: Up to 200-300m in open air
- 7. Day and night monitoring with clear images for 24 hours
- 8. Half-duplex Voice Transmission,Voice clear, volume of sound (0~10) is adjustable
- 9. Adjustable LCD screen,the brightness of LCD (0-10) is adjustable
- 10. Vox Alarm function,the volume of baby sound or happened in baby room over the volume which software of baby monitor has been fixed will alarm to monitor (screen automatically turn off, and then turn on with sound), to remind parents to pay more attention to baby.
- 11. Monitor with TV Out function,support TV display
- 12. Monitor with real time function, and display real time information
- 13. Inspecting baby rooms temperature ,and showing real temperature on LCD monitor
Specifications:
Function |
Description |
Frame Rate |
15-25 Frame,Signal strong ,frame high |
Signal strength indication |
6 grade |
Voice Volume |
10 grade |
Talkback |
Two-way talk, half-duplex |
VOX |
Switch on automatically when there is voice |
One monitor with 4 transmitter |
One receiver with 4 cameras ,switch CH display |
Temp Alarm |
Yes |
Real time clock |
Yes,24 hours system |
Temperature display |
Yes |
Music Player |
Yes |
LCD Size |
2.4inch 320x240 RGB color LCD |
Transmission safety |
Use after pair code |
Work Voltage |
DC:+6V/500MA;Battery:4xAAA=1.5x4 |
Frequency |
2.4GHz ISM Band |
Wireless Work Method |
FHSS |
Transmission Power |
19dBm@CW mode |
Transmission rate |
3Mbps |
Operating Range |
Open field:200-300 meter |
Work current‹Transmitter and receiver› |
TX:300mA MAX,RX:300mA MAX |
Work current for Auto sleep |
TX:35mA‹once every 0.5s›RX:20mA‹once every 0.5s› |
Audio rate |
16K |
Audio range |
120Hz~3KHz |
Sleep music function |
12 music looping |
Temp Alarm |
<-10°C or>36°C |
VOX Power |
-60dB@ MIC Input |
Camera resolution |
0.3 Mega |
Picture resolution |
320X240QVGA |
AV OUT function |
5-15 frame VGA from AV Output |
Video Rate |
15-25FPS |
Total harmonic distortion |
<5.0% |
SNR |
46dB |
Receiving Sensitivity |
-96dBm@BER=1e-3 |
Speaker |
0.25W |

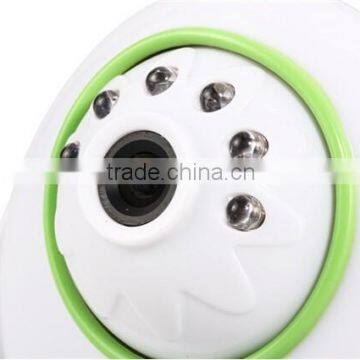

Night vision range |
2–3 meters |
Operating Humidity |
20~95% |
Operating Temperature |
0°C~38°C |
Package Includes:

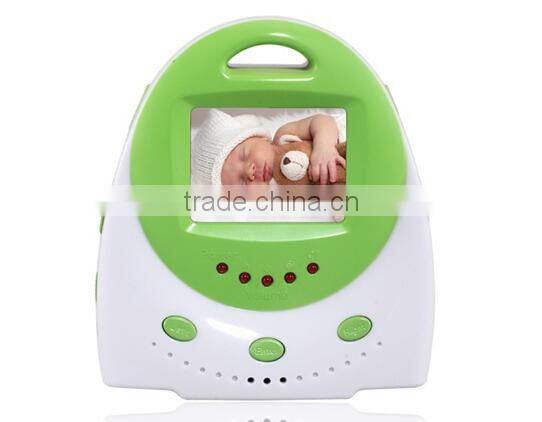

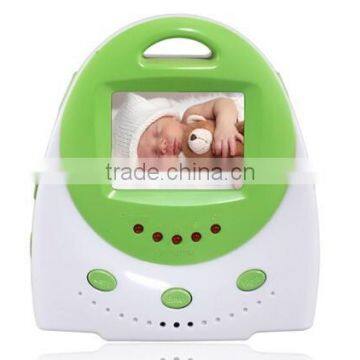

- 1x Receiver

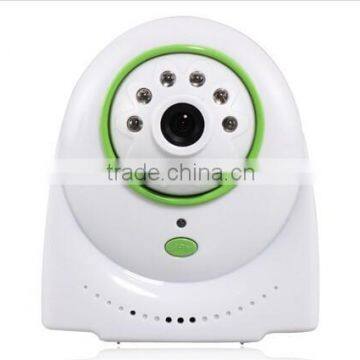

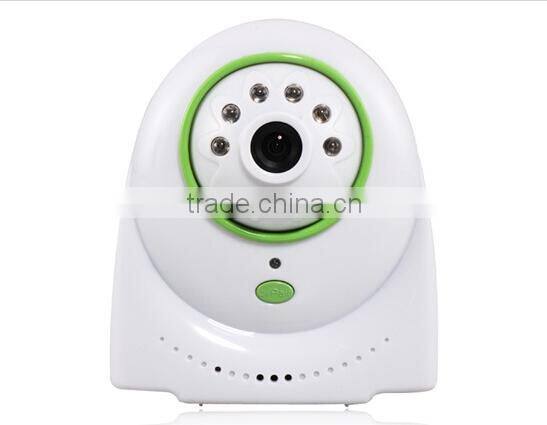

- 1x Camera

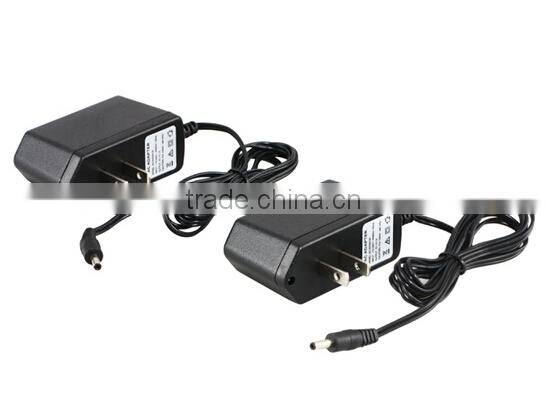

- 1x receivers the AC adapter (6V/500mA DC)
- 1x transmitter AC adapter (6V/500mA DC)

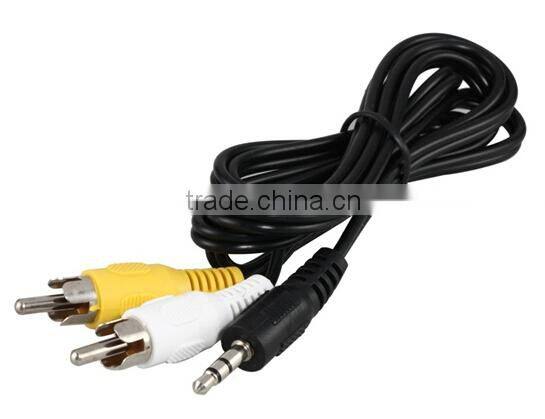

- 1x AV cable
- 1x Use manual
Weight: 669.82 g
Size: 31*18*7.5 cm
