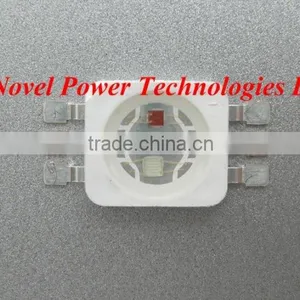

RGB LED

Name: RGB LED
Brand: NPT, AAA
SKU: 119506019
Availability: InStock

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

NPT, AAA

Model Number:

NPT1RGB306020E

Novel Power Technologies Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name NPT, AAA

Model Number NPT1RGB306020E

Type LED

Package Type Surface Mount

Specifications

High Power RGB LED. Full color, 6 pins SMD package. Can be driven independently, can be easily configure to different circuits.

FEATURES

Guaranteed minimum flux up to 20 for Blue, 60 for Green, 30 for Red at 350mA

Maximum drive current up to 400mA.

Max junction temperature :120 ^oC

Patented thermal management process, industries lowest thermal resistance from Chip base to STAR heat sink.

Electrically neutral thermal path

Long lifetime of 50,000 hours.

RoHS-compliant

TYPICAL APPLICATIONS

Stage lighting

Exterior and interior decorative lightings for shops, restaurants, hotels, discos, pubs, etc

Signage lighting.

Landscape lightings like parks, bridges, buildings.

Edge-lit signs.

Characteristics	Unit	Minimum	Typical	Maximum
Viewing Angle	degrees	145	150	155
DC forward current	mA			370
DC pulse current (@ 1kHz, 10% duty cycle)	mA			400
Reverse voltage	V			5
Reverse Leakage current @5V	uA			10
Forward Voltage @350mA Green, Blue	V	3.0	3.4	3.6
Forward Voltage @350mA Red	V	2.0	2.4	2.6
LED Junction Temperature	°C			120
Suggested operating case temperature	°C			80
Storage temperature	°C	-40		100
Electrostatic Discharge Threshold (HBM)	V			2000
