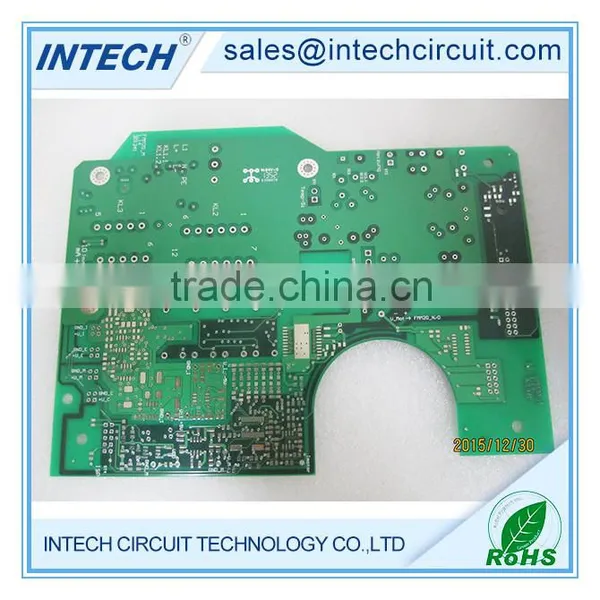

Multilayer PCB air conditioner inverter pcb board

Name: Multilayer PCB air conditioner inverter pcb board
Brand: INTECH
Price: USD $0.1 - 10 / Piece

FOB Price

USD $0.1 - $10 / Piece

1 Piece(Min.Order)

Supply Ability 20000 Square Meter / Square Meters per Month
Port SHENZHEN
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	INTECH	Model Number:	INTECH-ML-013
Number of Layers:	Other, 1-40 layers	Base Material:	FR-4	Copper Thickness:	0.5oz-10oz
Board Thickness:	0.4-8mm	Min. Hole Size:	0.2MM	Min. Line Width:	2mil
Min. Line Spacing:	2mil	Surface Finishing:	HASL

Product Description

Multilayer PCB air conditioner inverter pcb board

Product Description

Rigid PCB capability:

Item	Technical Parameters	Specification
Layers	1-40 layers	_
Min. line width	2/2mil	Partial 2mil lines is allowed
Min. line space	2/2mil	Partial 2mil lines is allowed
Min.annular ring width: vias	3mil	_
Min.annular ring width: component holes	7mil	_
Min.hole size(board thickness <2mm)	4mil	_
Min.hole size(board thickness ≥2mm)	Aspect ratio≤16	_
Max.board thickness(single&doule sided)	6mm	_
Max.board thickness(multilayer)	8mm	_
Min.board thickness(single&doule sided)	0.2mm	_
Min.board thickness(multilayer)	4layers:0.4mm;6layers:0.6mm;8layers:1mm; 10layers:1.2mm	_
Max.board size (single&doule sided)	700*1200mm	_
Max.board size (multilayer)	700*1200mm	_
Distance between line to board edge	Outline: 0.2mm V-CUT: 0.4mm	_
Solder mask bridge	4mil	Between IC pins
Solder mask color	White,black,blue,green,yellow,red,ect	_
Legend color	White,black,yellow,ect	_
Surface finish	HAL(with Pb free),plated Ni/Au,Immersion silver,Imm Ni/Au,Imm Sn, hard gold,OSP,ect	_
Plating thickness(Technique: hard gold)	Plating type: Ni, Min./Max thickness:100/150U'' Plating type: Au, Min./Max thickness:5/120U''	_
Plating thickness (Technique:Immersion Ni/Au)	Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U''	_
Plating thickness (Technique: gold finger)	Plating type: Ni, Min./Max thickness:120/150U'' Plating type: Au, Min./Max thickness:5/120U''	_
Copper plating hole	Copper thickness: Min.20um/Max.25um	_
Base copper thickness(Inner and outer layer)	Min. thickness:1/3 OZ Max.thickness:6OZ	_
Finished copper thickness	Outer layers: Min.thickness 1 OZ,Max.thickness 10 OZ Inner layers: Min.thickness 0.5 OZ,Max.thickness 6 OZ	_
Min.insulation layer thickness	2mil	_
Line width/space: 3/3mil,4/4mil,4/5mil	Max. Copper thickness 0.5 OZ	Line width shouldn't be less than the required value under ensure of space
Line width/space: 4/6mil,5/5mil,6/5mil	Max. Copper thickness 1 OZ
Line width/space: 5/6mil,6/6mil	Max. Copper thickness 2 OZ
Line width/space: 6/8mil,7/8mil,8/8mil	Max. Copper thickness 3 OZ
Line width/space: 8/10mil,9/10mil,10/10mil	Max. Copper thickness 5 OZ
Board materials	FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic,PTFE,nelcon,ISOLA,polyclad 370 HR); thick copper
Hole size tolerance	±0.03mm
Hole position tolerance	±0.03mm
Board outline tolerance	L≤100mm:0.1mm; 200mm300mm:0.4mm
Finished product thickness tolerance	0.2mm
Impedance control	± 10%
Bow and twist	≤ 0.5%

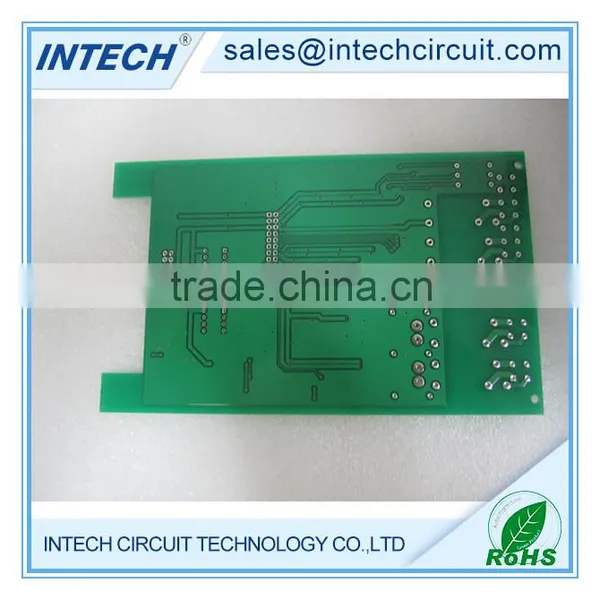

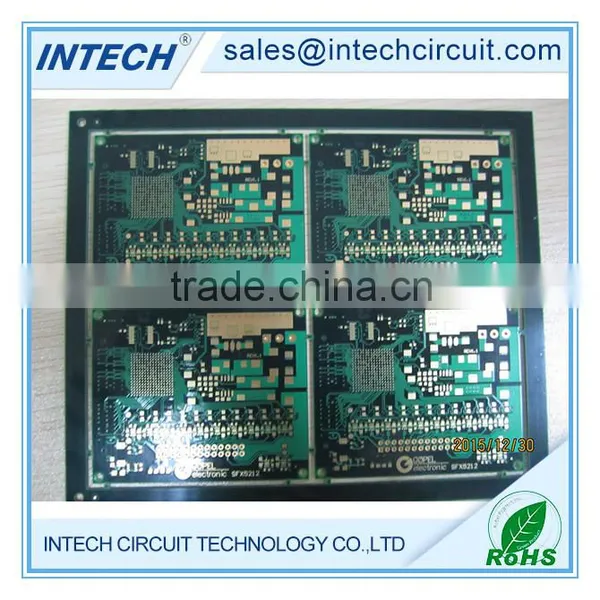

More product pictures:
