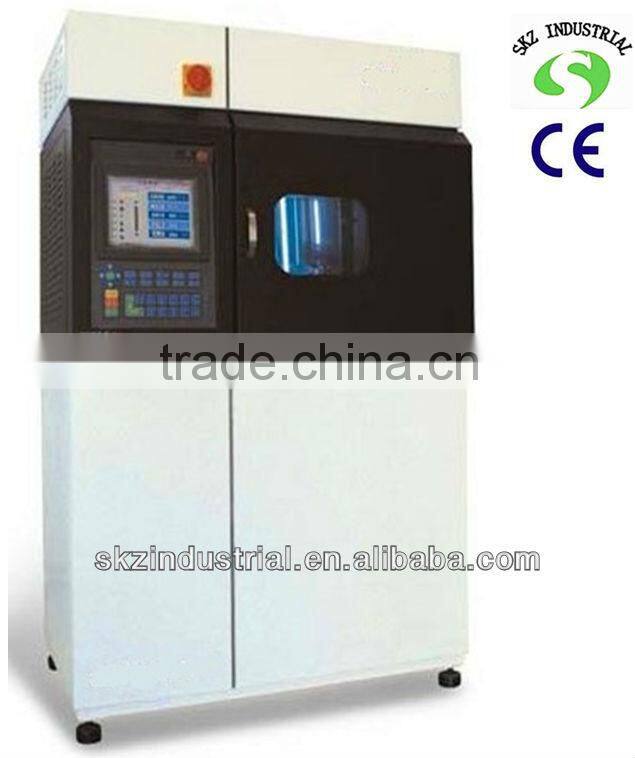

Color Fastness to Sunlight and Weather color fastness testing equipment
Solar radiation simulation Wind cooling Tester
Used for testing the color fastness-to-light, color fastness-to-weather of various colored textiles in color fastness experiments and also for the testing of the color fastness-to-light, light aging of paint, pigment, coating, rubber, plastic, wood floor, paper and other materials.
Relevant Standards
GB/T8427(national standards technical committees) GB/T14576, GB/T15102-2006, GB/T15104-2006 GB/T8430, AATCC TM16, ISO105-B04, ISO105-B02
Instrument characteristics
1.Digital setting of light intensity , real-time monitoring, automatic adjustment, to meet the different standards for testing the stability of light source
2.The sample is tested with black plate thermometer(BPT),black plate standard thermometer(BST),irradiance detector at the same position(in equidistance) to really indicate measuring state of the sample, the tested data is transmitted synchronously by using technology of radio frequency and indicated on the color screen in the forms of digit, chart, curve, etc. after CPU process, without shutdown for observation.
3.Test and radio transmission are powered by using light conversion technology, no additional power supply is required.
4.10.4 inch color touching screen display control and various test monitoring modules(animation, digit, chart)make operation easy, visual and clear
5.Individual timing of each sample clamp may enable different sample test in a same tester and facilitate test monitor and reduce operation cost
6.Rated 2500W long-arc xenon lamp technology adopted to real simulate sunlight spectrum
7.With industrial temperature control (refrigeration) system for smoothly and fast adjusting temperature in test chamber
8.Ultrasonic humidification and professional dehumidification system guarantee the accuracy and stability of testing humidity
9.Natural circulation system and air filter system inside reduces the environmental requirements greatly
10.One test can run for 1000 hour continuously with quality guarantee
Technical parameters
Atype:
1.Working pattern: Simulating and strengthen the effects of environmental factors on specimens, offering light, temperature, humidity, rain and other quantitative indicators
2.Light source:2500W air-freezing xenon-arc light
3.Test chamber temperature control:25~50°C:Distinguishability:0.1°C
4.Test chamber humidity control:10~95%RH, Distinguishability:0.1%
5.Testing time control:1000h
6.Irradiance:1.00~1.50W/m2/420nm;Accuracy:±0.03W/m2/420nm;Digital setting automatic compensation
7.Sample clamps: GB: 135×45mm, 10 pieces. AATCC: 100×75mm, 5 pieces both sides can clamp samples
8.Slewing speed of sample frame: revolution 5r/min, rotation 180°/rpm
9.Sample clamps time individually: ≤1000h 1
0.Black standard thermometer :40~80°C, Distinguishability:0.1°C
11.Power source: AC220V±10%, 50Hz, 5.5kW
12.External dimensions: 1000×550×1570mm
13.Weight: 220kg
B type
Technical parameters
Test compartment temperature control |
30~50°C, Resolution: 0.1 °C |
Storage humidity control test |
Light condition:10-65% RH, humidity fluctuations ±3%RH; Dark condition:40-95% RH, humidity fluctuate ± 5% RH; |
Time control experiments |
0min~999:59h, Accuracy ± 1min |
Irradiance control |
1-1.5W/m2/420nm Accuracy: ± 0.03W/m2/420nm; digital set, automatic compensation |
Control and monitoring wavelength |
Optional 340nm, 420nm ,300-400nm ,300-800nm, |
Xenon arc lamp rated power |
3.5KW |
Sample holder rotation speed |
5rpm |
Maximum exposure area |
1170cm2 |
Sample holder can be mounted with the number of dimensions |
145 × 75mm model 18; 145 × 45mm model 26 |
Timing of each sample holder, respectively, |
≤10000h |
Photoperiod |
≤10000h |
Spray cycle |
≤10000h |
Blackboard temperature range |
(BPT) 40-75°C±2°C;(BST) 45-80°C±2°C |
Display control |
10.4-inch touch screen |
Data Output |
Digital color display (A4 print in English optional) |
Sample holder type |
Double |
Requirements within the recycled water |
High water flow: 0.5L/min |
Power supply |
AC380V±5% 50Hz 6kW |
Dimensions |
1250×1000×1800mm |
Weight |
400kg |
C type
Technical parameters
Test compartment temperature control |
30~50°C, Resolution: 0.1 °C |
Storage humidity control test |
Light condition:10-65% RH, humidity fluctuations ± 3% RH; Dark cycle:40-95% RH, humidity fluctuate ± 5% RH; |
Time control experiments |
0min~999:59h, Accuracy ± 1min |
Irradiance control |
1-1.5W/m2/420nm , Accuracy: ± 0.03W/m2/420nm; digital set, automatic compensation |
Control and monitoring wavelength |
Optional 340nm, 420nm ,300-400nm ,300-800nm |
Xenon arc lamp rated power |
4.5KW |
Sample holder rotation speed |
5rpm |
Maximum exposure area |
1755cm2 |
Sample holder can be mounted with the number of dimensions |
145 × 75mm model 27; 145 × 45mm model 39 |
Timing of each sample holder, respectively, |
≤10000h |
Photoperiod |
≤10000h |
Spray cycle |
≤10000h |
Blackboard temperature range |
(BPT) 40-75°C±2°C;(BST) 45-80°C±2°C |
Display control |
10.4-inch touch screen |
Data Output |
Digital color display (A4 print in English optional) |
Sample holder type |
Three |
Requirements within the recycled water |
High water flow rate: 0.5L/min |
Power supply |
AC380V±5% 50Hz 6.5kW |
Dimensions |
1350×1050×1900mm |
Weight |
460kg |
