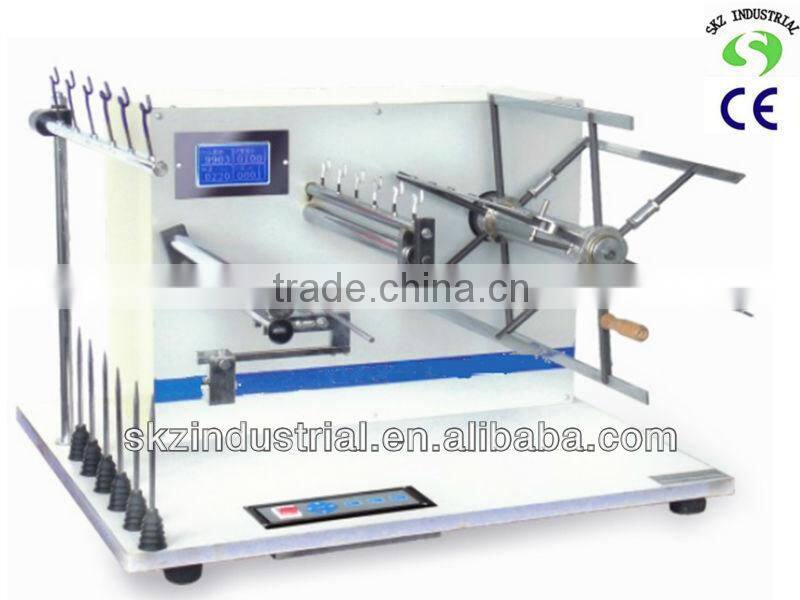

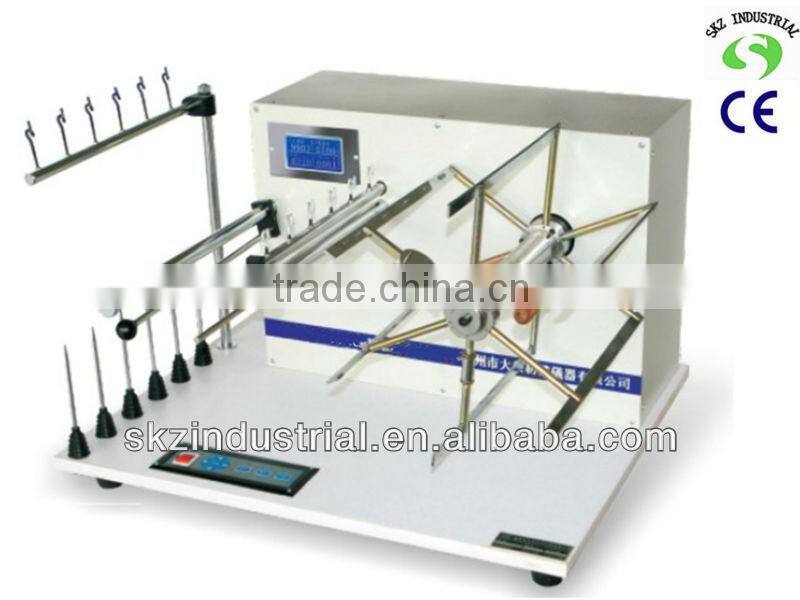

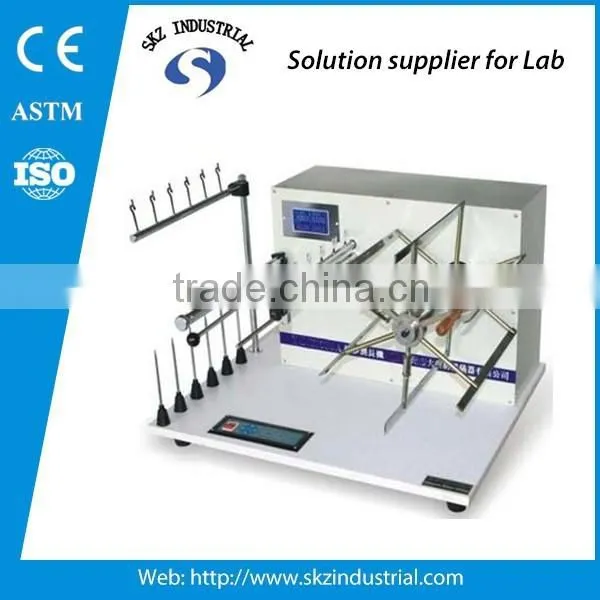

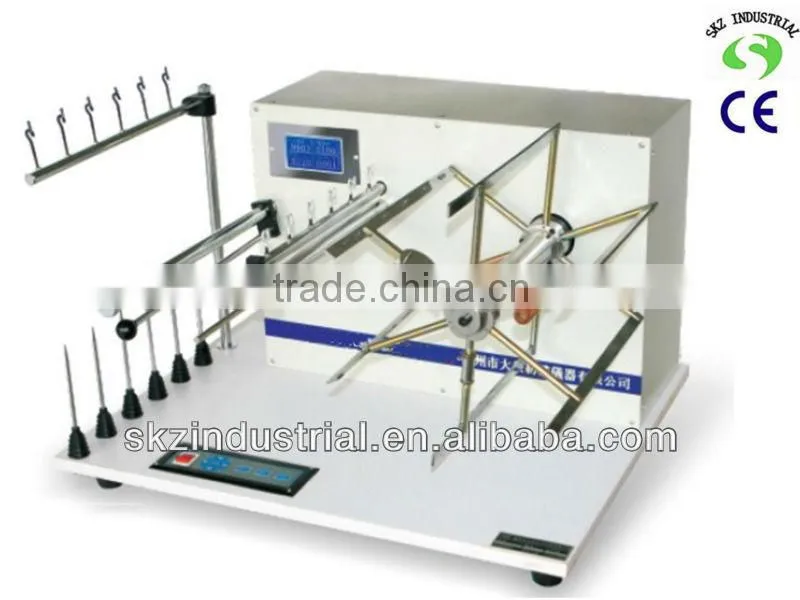

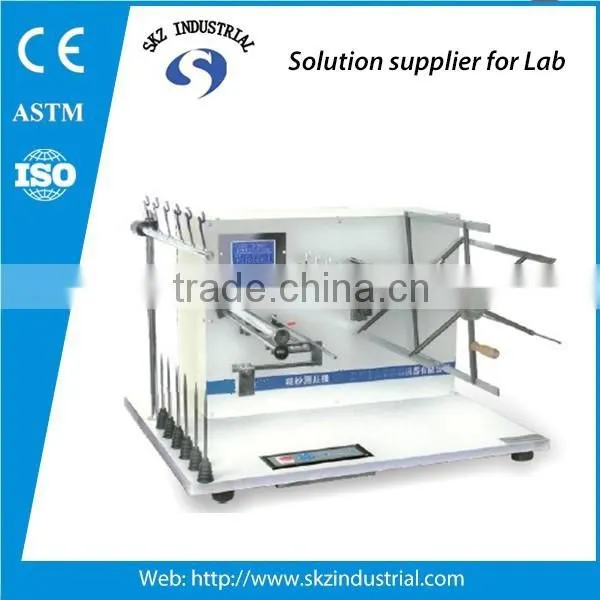

fabric yarn fiber length measuring machine
To determine the accurate length of yarn, reference to tests of Yarn linear density, yarn count and Yarn strength.
Standard:
ISO 2060.2, ISO2060, ASTM D1907
Instrument characteristics
1.Timing cog belt of direct transmission, No-lap skid
2.Countint by Optocoupler
3.Import electronic tension sensors, dynamic display the around yarn tension, no additional tension impact (B type)
Technical parameters.
1.Testing spindle numbers: 6 magentas
2.Spindles space: 60mm
3.Winch circumference: 1000±1mm
4.Winch speed: 20~250rpm(Stepless speed regulation)
5.Palygorskite yarn laps: 1~9999
6.Shake yarn peciprocating distance of horizontal travel:35±0.5mm
7.Single yarn tension range:0~100±1cN
8.Power source:AC220V 50Hz 100W
9.External dimension:780×660×480mm
10.Weight:53kg
