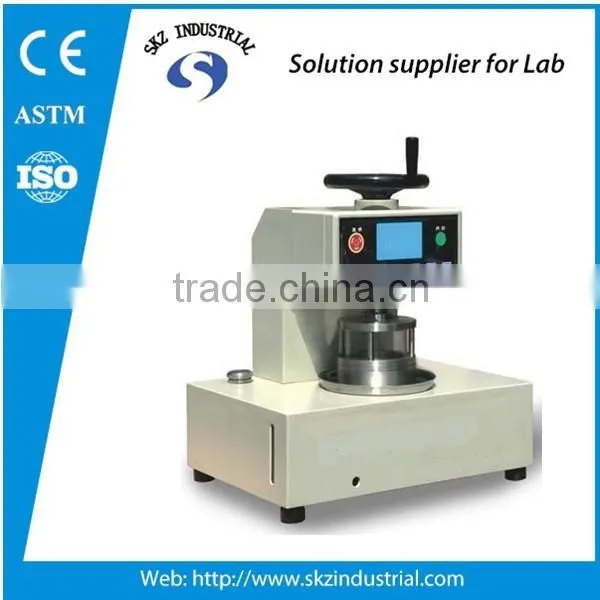

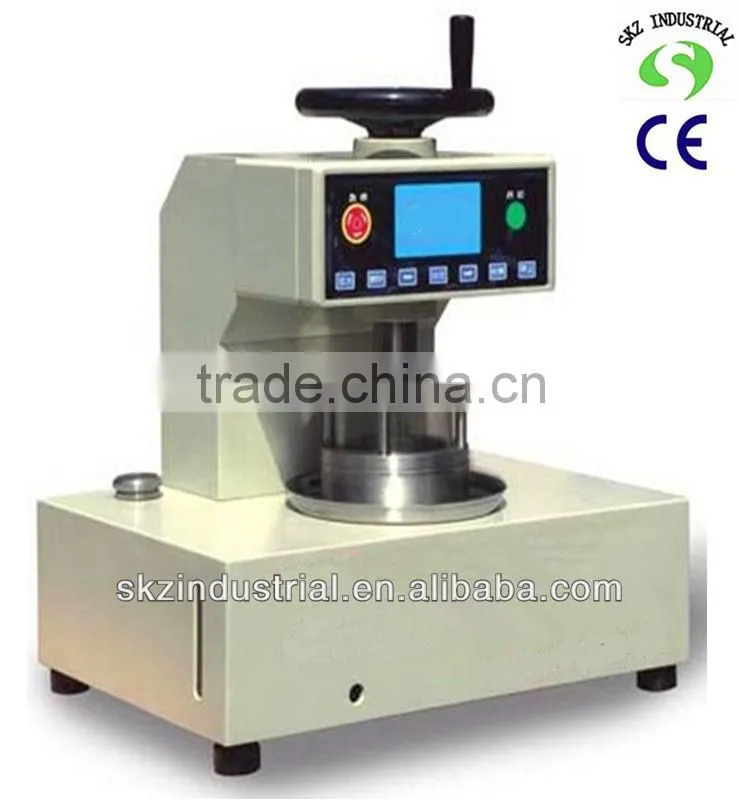

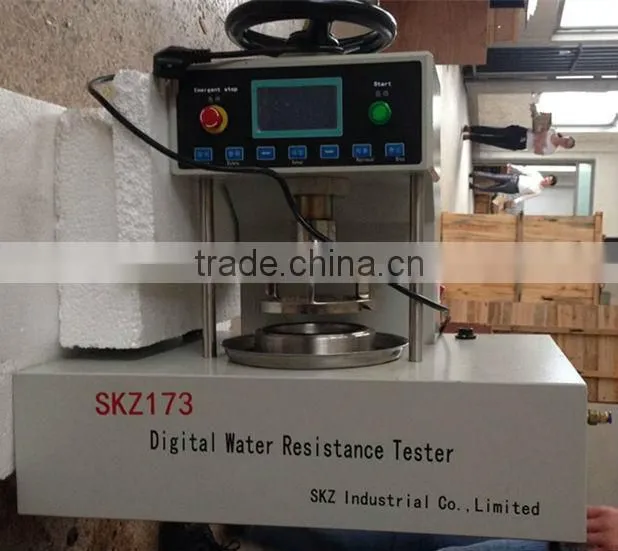

Digital Fabric Hydrostatic Pressure Tester
To determine the resistance of a fabric to the penetration of water under hydrostatic pressure. FZ/T01004, AATCC 127, DIN 53886, JIS L1092.
Testing mode
1.Turbocharged;
nstant pressure time;
nstant pressure regularly;
4.flexing resistance relaxation method;
5.leakage water method
Technical Specifications
Model |
Test range |
Water tank lifting speed |
Area of specimen grip holder |
SKZ173A |
500pa-50kpa |
1kpa-20kpa |
100cm2 |
500pa-200kpa |
1kpa-30kpa |
||
SKZ173B |
5kpa-500kpa |
1kpa-100kpa |
8cm2 |
Technical parameters
1.Power source: Ac 220V±10% 50HZ 100W
2.External dimension:550×400×500mm
3.Weight:50kg

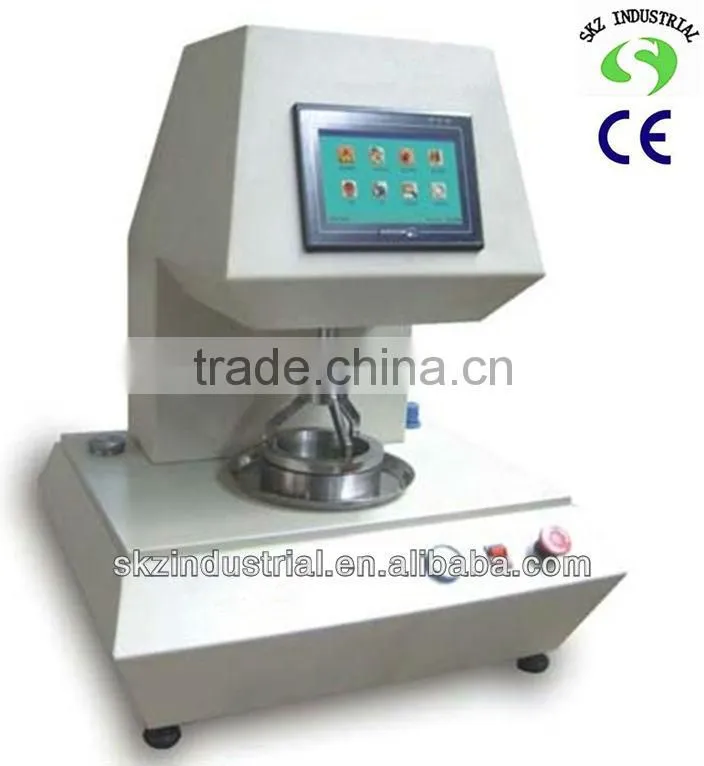

Pneumatic Auto Water Resistance Tester
To determine the resistance of a fabric to the penetration of water under hydrostatic pressure. FZ/T01004, AATCC 127, DIN 53886, JIS L1092.
Testing mode
1.Turbocharged;
nstant pressure time;
nstant pressure regularly;
4.flexing resistance relaxation method;
5.leakage water method
Technical Specifications
Model |
Testing range |
Water tank lifting speed |
Area of specimen grip holder |
SKZ173C |
500pa-50kpa |
1kpa-20kpa |
100cm2 |
500pa-200kpa |
1kpa-30kpa |
||
SKZ173D |
5kpa-500kpa |
1kpa-100kpa |
8cm2 |
Instrument characteristics

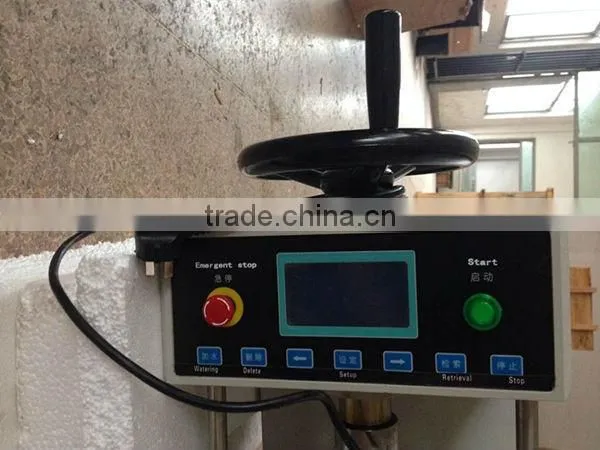

1.Mirco-Computer program-controlled, LCD menu, built-in five sets of measurement mode
2.Built-in water tank design, original water rate balance system, with stable and accurate lifting speed
3.Pneumatic clamp
Technical parameters
1.Power source: Ac 220V±10% 50HZ 200W
2.External dimension:560×400×600mm
3.Weight:60kg
