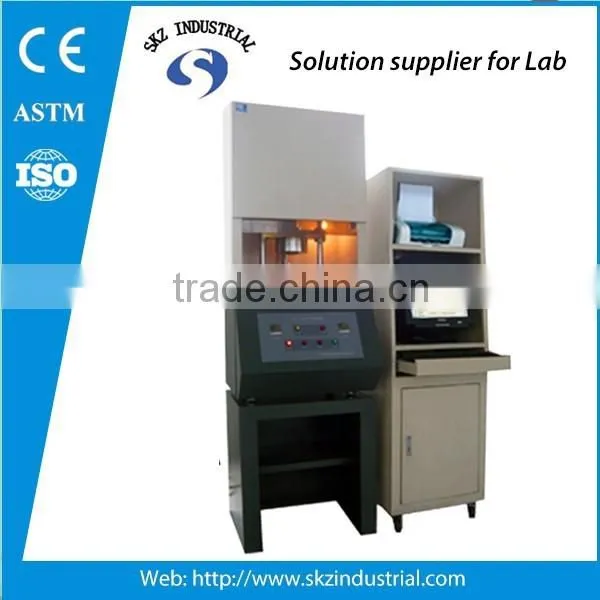

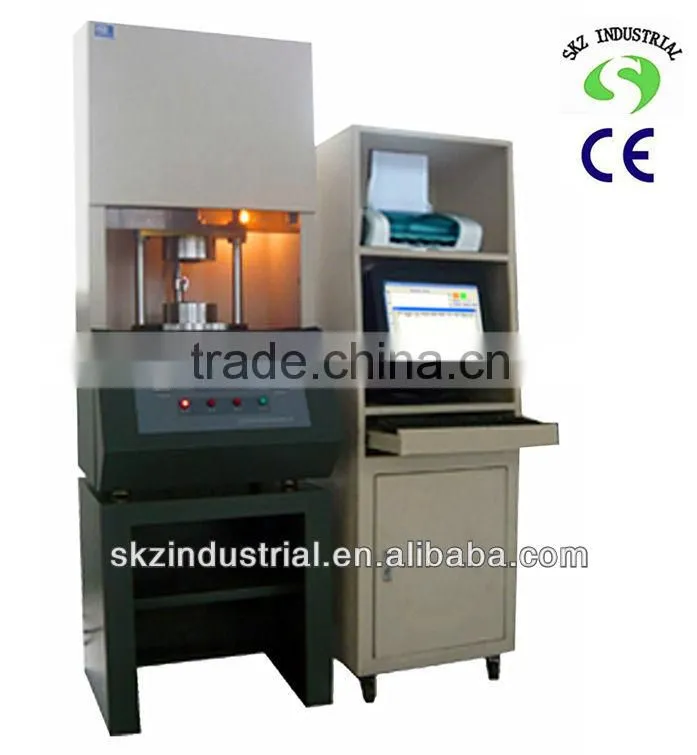

PC system foam rubber Rheometer
Used to Raw rubber or rubber compound for the determination of Viscosity, scorch and curing index
Feature of host:
1. Computer control, Data display, Automatic calibration
2. Imported intelligent digital temperature controller, easy to adjust the settings, a wide temperature range
3. Using the latest principles of a "host + computer + printer" structure
Feature of Control Software:
1. Unit of options: kgf-cm, lbf-in Nm, the dN-m, the MV;
2. Test data: contains the Mooney viscosity, scorch various data;
3. Test curve: Mooney viscosity curve, Mooney scorch curve, temperature curve of the upper and lower mold
4. Modify the time during testing
5. The test data can be saved automatically
6. A number of test data and curves can be displayed on one piece of paper, and used the mouse click to read the value of any point on the curve
7. Historical data can be added together to analysis and can be printed out.
8. The color of the curve can be modified.
9. Software platform for Windows98/Me/NT/XP other versions
Technical Specifications
1. Test data: Mooney viscosity, Mooney scorch
2. Standard: ISO289, ISO667, GB/T1232-92 HG/T3432-1989
3. Temperature measuring:
(1) The temperature measuring range: room temperature ~ 200 °C
(2). Temperature Resolution: 0.1 ° C
(3). Temperature fluctuation: ± 0.3 ° C (after feeding)
4. Temperature rise time: ≤ 10min
5. The maximum test time: Mooney: 10min;
Scorch: 120min (modification time during testing)
6. Mooney value of measuring range: 0 to 200
7. Mooney value resolution: 0.1 Mooney value
8. Mooney value measurement accuracy: ± 0.5 Mooney value
9. Calibrate accuracy: 100±0.5 Mooney value
10. Rotor speed: 2 ± 0.02r/min
11. Rotor dia. : big: 38.1±0.03mm, small: 30.48±0.03mm
12. Power supply: AC220V ± 10% 50HZ
13. Dimensions: 645mm × 580mm × 1300mm
14. Weight: 210kg
PACKING LIST
Host 1PC
Mooney software 1PC
Calibration Poise 1UNIT
Large and small rotor 2 PER
Seal Ring 4PCS
Canvas gloves 1PAIR
Copper screwdriver, Phillips screwdriver, slotted screwdriver 1PER
3,4,5,6 inside hexagonal wrench 1UNIT
Scissors 1PAIR
Wire brush 1PC
