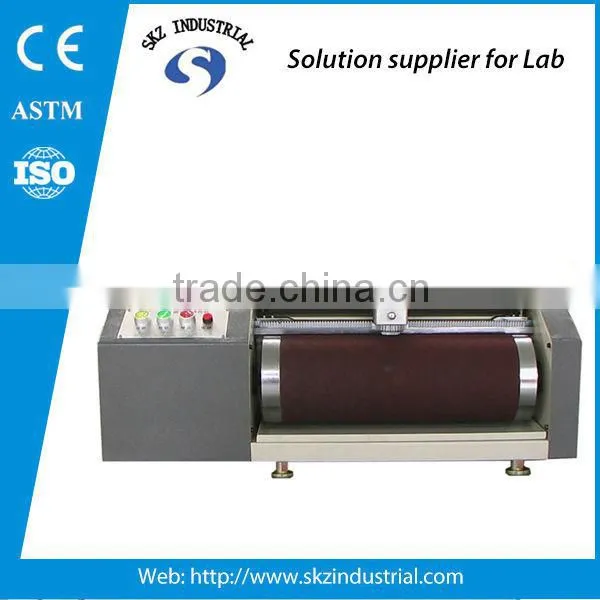

Schopper abrasion din wear resistance tester

Schopper abrasion din wear resistance tester

 For determination of abrasion resistance of rubber tires, rubber overshoes, adhesive tape, to identify the quality of rubber products. Rubber compounds were friction with the cloth in a certain load to determine the amount of abrasion of the sample within a predetermined stroke. ISO4649, DIN 53516

Technical parameters:

1.Sample load: 2.5N, 5N,10N

2.Stroke: 40m or 20m

3. Roller speed: 40 ± 1r/min

4. Roller diameter: 150 ± 0.2mm

5. Roller length: 460mm

6.Sample dia.: 16 ± 0.2mm

7. Power: AC220V ± 10% 50Hz

8. External dia.: 700mm × 340mm × 300mm

9 Weight: 63kg
