LCD melt flow index tester
LCD Melt Flow Indexer To determine the melt mass-flow MFR (g/10min), the melt volume-flow rate MFV(cm3/10min)and the melt density of thermo resin, for the engineering plastics of polycarbonate, nylon and fluorine plastics, etc, whose melt temperature are higher, but also fit for the plastics tests of polyethylene, polystyrene, polypropylene, ABS resin and poly-formaldehyde resin, etc, whose melt temperature are lower, it is widely applied to the fields of plastics materials, product, petrochemical
Standards: GB 3682, ISO 1133, ASTM D 1238, DIN 53735, UNI-5640, JJB878, and made according to JB/T5465 (Technical Standard of Melting Flow Rate Instrument).
Tests performed:
adopts PID temperature control, digital display, it can cut material automatically, has two measuring method, MFR and MVR, print out the test report
Main technical parameter:
Measuring range: 0. 01-600.00 g/10min (MFR)
0. 01-600.00 cm/10min(MVR)
0.001-9.999 g/cm (melt density)
Temperature range: 50-400°C
Temperature precision: ±0.5°C resolution: 0.1°C
Material canister inside diameter 9.55±0.025mm length: 160mm
Piston diameter 9.457±0.01mm mass: 106g
Mould inside diameter 2.095mm length: 8±0.025mm
Load: full load
Base weight: 0.325Kg.
Weights: 0.875Kg, 1.290Kg, 1.835Kg, 3.475Kg, 4.675Kg, 5.000Kg, 5.000Kg one each (may freewill combination )
Accuracy: 0.5%
Cleaning accessories: clear material pole
Calibration accessories: water level bubble
Measuring method: MFR MVR/ DENSITY
Supply Power: 220V±10% 50Hz Heat up power: about 550W
Outline size: (length*width*height ) 600*400*500 (unit: mm)
Net weight: 85Kg Gross weight: 135Kg
Packing list:
Mainframe one
Base weight one
Weight one (six sort’s seven pieces)
Piston one
Mould one
Oriented sheath one
Water level bubble one
Hopper one
Clear material pole one
Mould bore one
Material check one
Provide English explanation one each

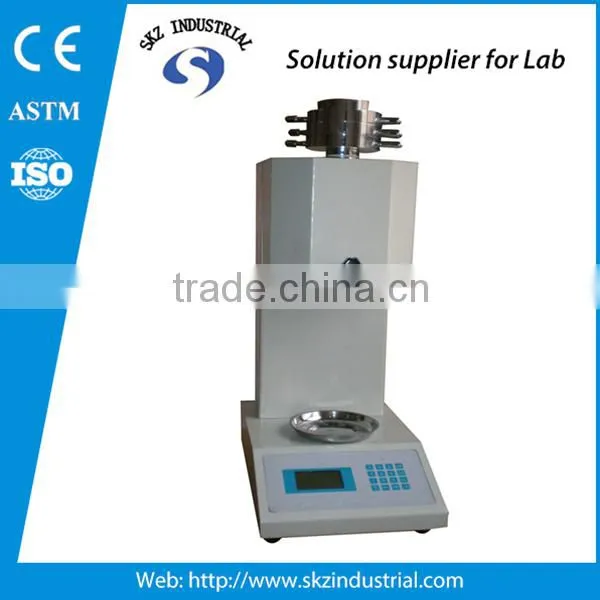

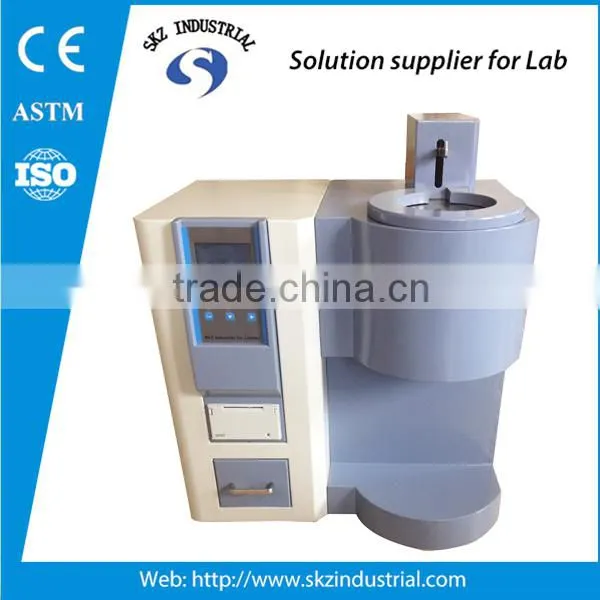

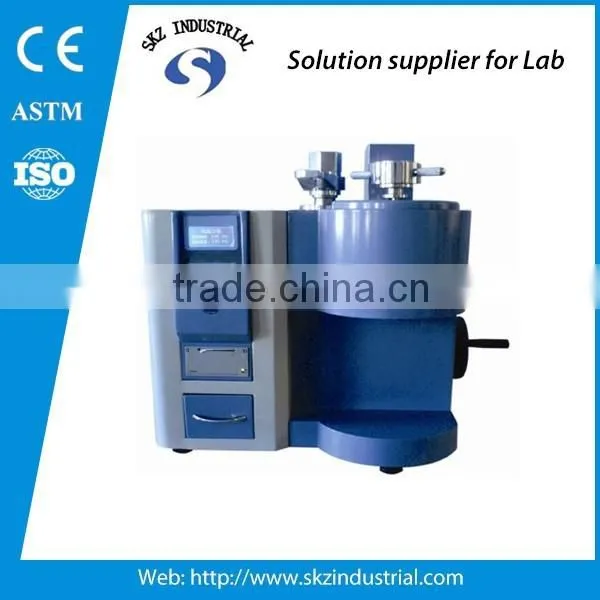

outward appearance of front: LCD display and with built-in printer
Detailed picture of its LCD display and control panel and printer
Its name card, with unique ID
outward appearance of its backside
Wrapped by plastic film, and filled with foam
Packed by ply-wooden cases, Free fumigation
Solid packages with marks
