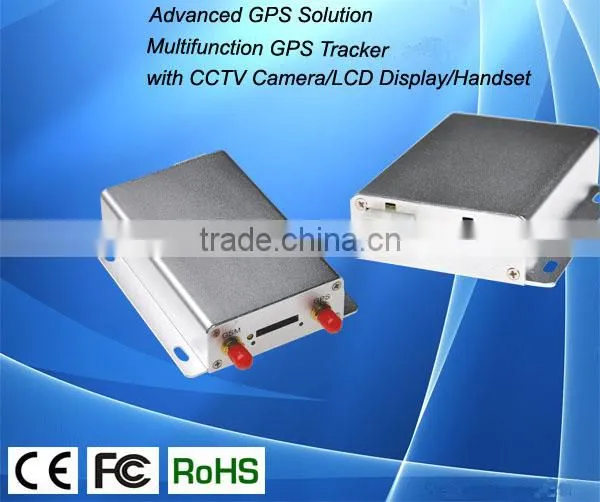

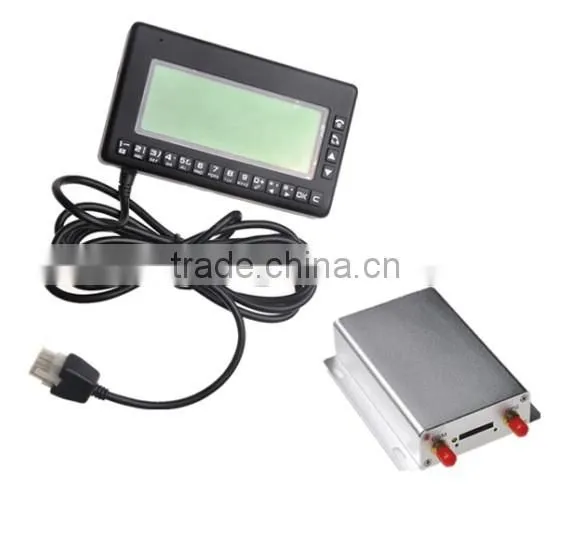

Help CenterGPS Vehicle Tracker With Camera ,fuel Sensor ,with Android and IOS APP
Related Products
-
Micro Gps Tracking With Small Gps TransmitterUS$ 30 - 50MOQ: 100 Units -
GPS Vehicle Tracker With IOS App and Andriod AppUS$ 75 - 85MOQ: 100 Units
-
Vehicle GPS Car Tracker With ACC Alarm and Anti-theft Alarm/GPS LBS Double Tracking SolutionUS$ 75 - 85MOQ: 100 Units
-
GPS Car Tracker and Car Key Gps Tracker for Fleet ManagementUS$ 68 - 85MOQ: 50 Units
-
Car Gps Traker Tracking by SMS or GPRS or GSMUS$ 76 - 85MOQ: 1 Unit
Specifications
1.wide operating2.Intelligent crash prevention
3.The static drift handling
4.High and low temperature resistance
Main functions

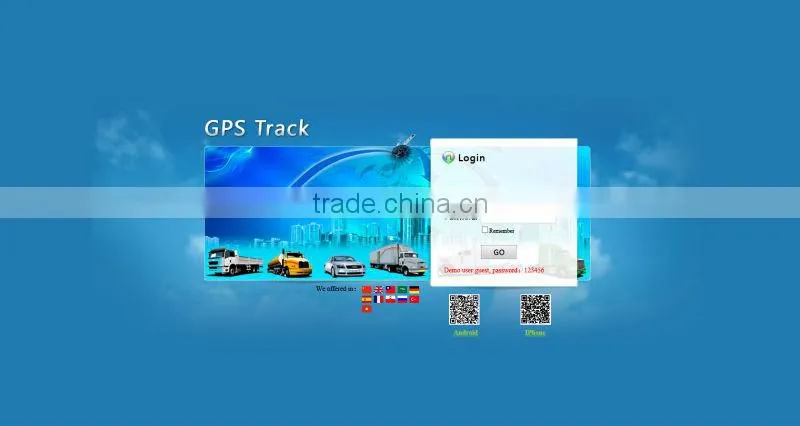

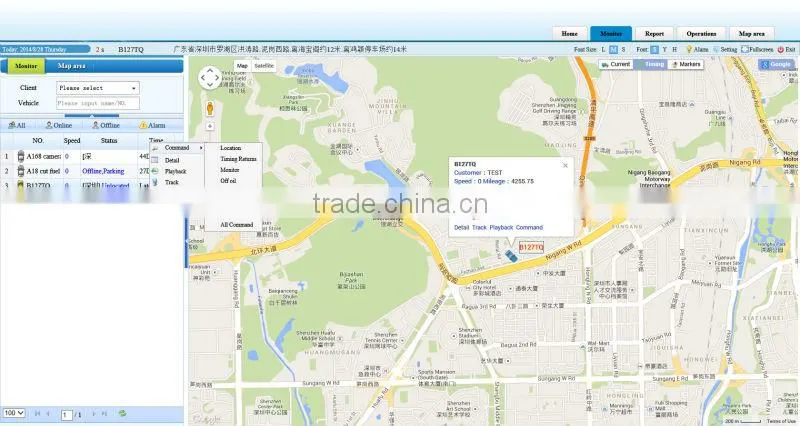

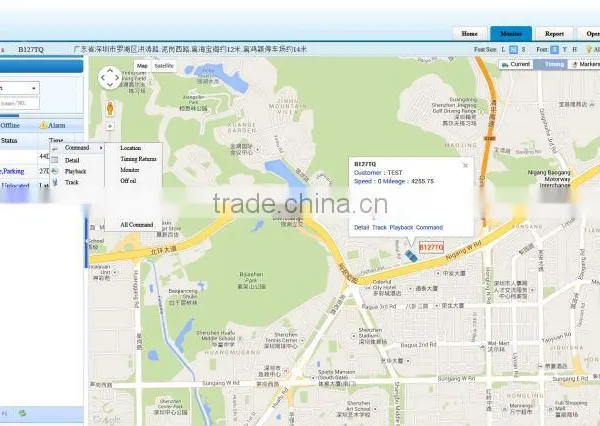

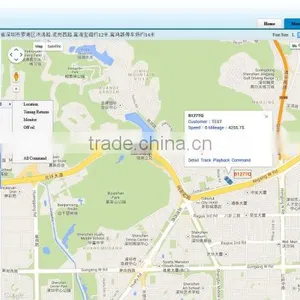

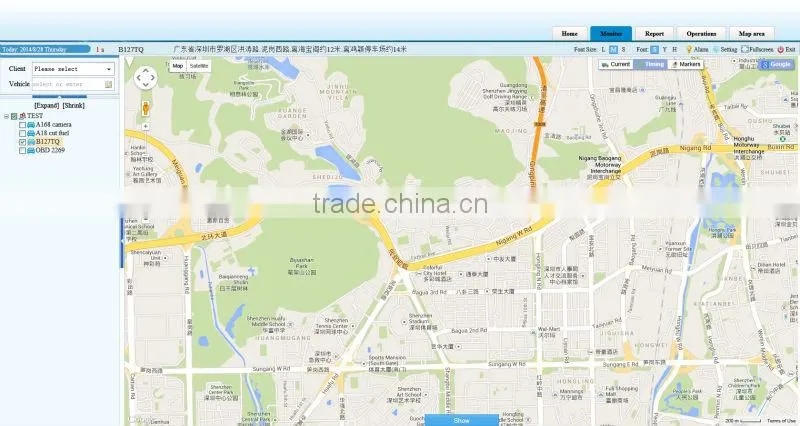

1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.
3. Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.
4. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
5. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
6. Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.

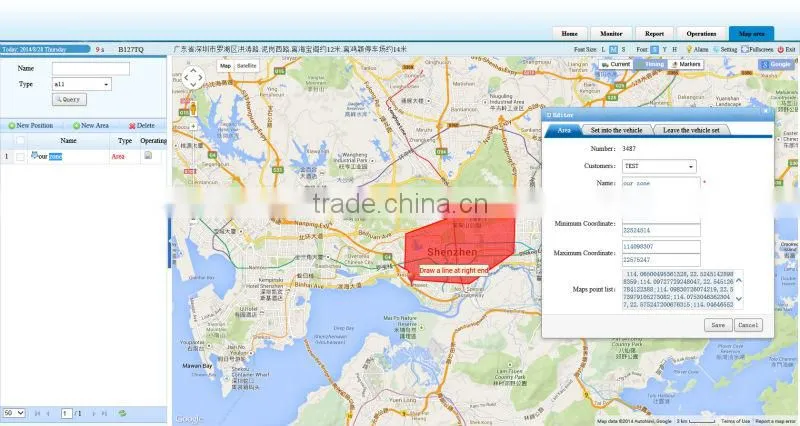

7. Geo-fence: Set up a geofence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
8. Restart the unit: send SMS to resume the default of unit.

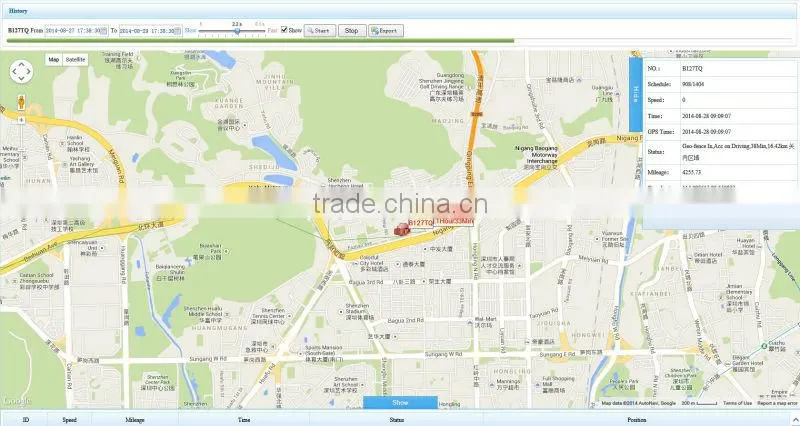

9. Auto Track: You can set up auto track by SMS or on-line positioning platform.

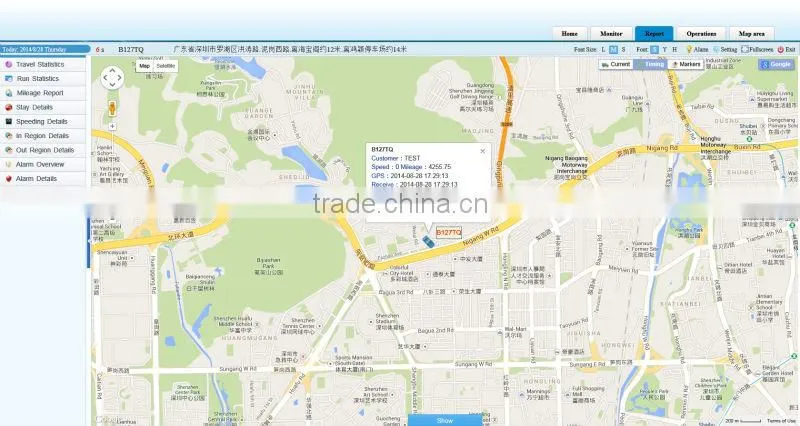

10. Mileage statistics; ACC checking; cutting off power and alarm.

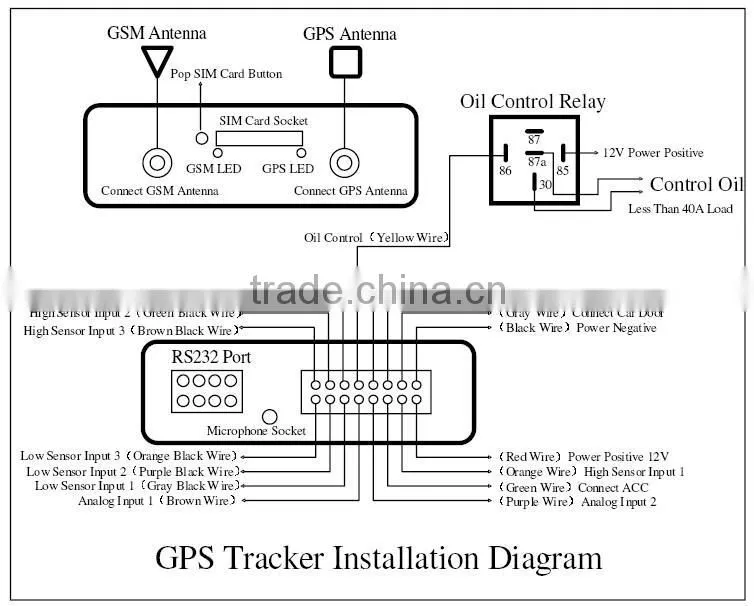

Installation diagram of The Tracker
Application
- 1. Vehicle Rental/Special Tracking System
- 2. Finance and Insurance Business Tracking System
- 3. Car Commanding and Dispatching System
- 4. Heavy Construction Vehicles Tracking Device
-
5. Shipping Cargoes Tracking
Specs.
Content
Specs.
Dim.
87 * 64 * 26 (mm)
Weight
495g
Network
GSM/GPRS/GPS
Band
900/1800MHz or 850/900/1800/1900MHz
GPS chip
SiRF III chip
GSM/GPRS Module
SIM900 or SIM900A
GPS sensitivity
-159dBm
GPS accuracy
5 m
Time To First Fix
Reacquisition 0.1s
Cold status 45s
Warm status 35s
Hot status 1s
Work Voltage
DC 9V-30V
Battery
Chargeable changeable 3.7V / 1.2Ah Li-ion battery
Standby work current
< 30mA
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +70°C
Humidity
5%--95% non-condensing
