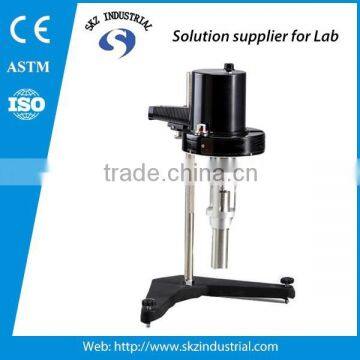

High Quality Manual Pulp Rotating Viscometer

High Quality Manual Pulp Rotating Viscometer photo-1
High Quality Manual Pulp Rotating Viscometer photo-2
US$ 600 - 2,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SKZ
Model Number:
SKZ1037
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name SKZ
Model Number SKZ1037
Power Electronic
Usage Other, analogue rotary viscometer

High Quality manual pulp rotating viscometer



It is a mechanical Analogue rotary viscometer, to measure viscosity resistance and dynamic viscosity of liquid, It can be widely applied to oil, paint, plastics, food, medicines, adhesives, and pulps.



Feature

1. Using synchronous motor rotates at a steady speed, connecting scale disc, and then through the spring and the shaft to drive the rotor.

2. Using variable speed gear system and clutch, by the dedicated rotary knob operation, fourth selectable speed,

3. Nos. 1 to 4 with four kinds of rotor rotation speeds can be preset, based on the measured viscosity of the liquid used in conjunction with the level of choice speed to meet the diverse range of measurement requirements.

4. With fixed pointer control device (pointer control lever), easy to read when the speed is fast and accurate readings.



Parameter

1. Measuring range: (10 ~ 100000) mPa • s (A type), 10 ~ 2000000mPa • s (B) type.

2. Measurement error: ± 5% (F • S);

3. Measuring Rotor: Rotor No. 1,2,3,4;

4. Rotor speed:

(6,12,30,60) r/min (A type)

     L (Slow): 0.3 rev/min, 0.6 rev/min, 1.5 r/min, 3 rev/min (B type)

    H (Quick): 6 revolutions/min, 12 rev/min, 30 rev/min, 60 cycles/min (B type)

5. Power supply: AC 220V ± 10% 50Hz ± 10%;

6. Dimensions: 300 × 300 × 450mm;

7. Net weight: 2kg (not including bracket).



High Quality manual pulp rotating viscometer
