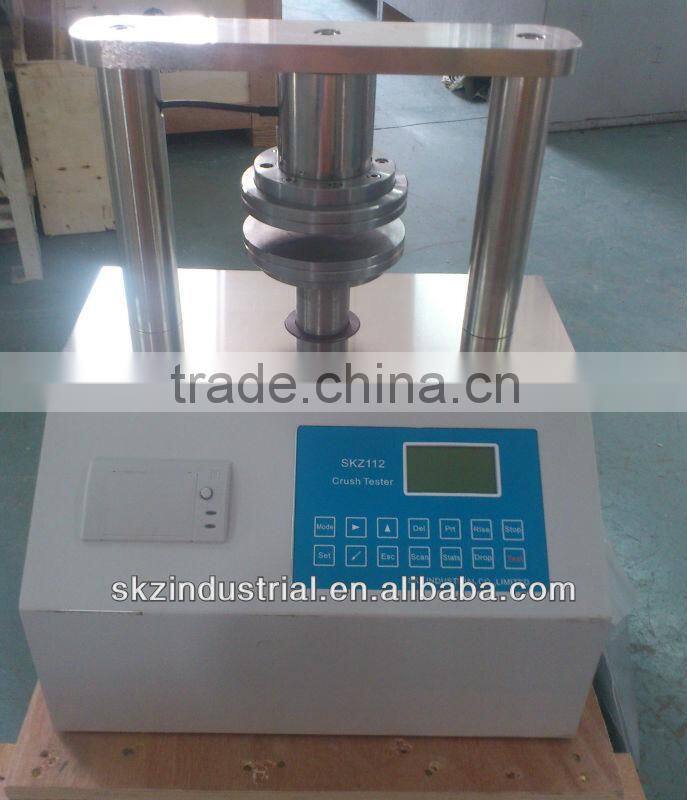

Help CenterPaper Board Edge Crush Tester
Related Products
-
Digital Puncture Resistance TesterUS$ 1,800 - 2,500MOQ: 1 Unit -
Cardboard Taber Stiffness TesterUS$ 1,300 - 1,500MOQ: 1 Unit
-
Elmendorf Tearing Strength TesterUS$ 800 - 3,500MOQ: 1 Unit
-
Paper Tube Compressive Strength TesterUS$ 2,700 - 4,000MOQ: 1 Unit
-
Touch Screen Paper Tube Compression TesterUS$ 7,500 - 20,000MOQ: 1 Unit
Specifications
Test the RCT, FCT, ECT and Pin adhesive strength of paper and cardboard. Compression strength for paper tube. ISO3035; ISO3037Paper board edge crush tester
It is applying to do the Ring Crush Test, the Pin Adhesive Strength Test, the Flat Crush Test, the Edgewise Crush Test and Paper-tube Strength Test. It is the ideal testing Equipment for papermaking, packaging, quality inspection department and so on.
Standards: ISO3037, ISO3035
Characters

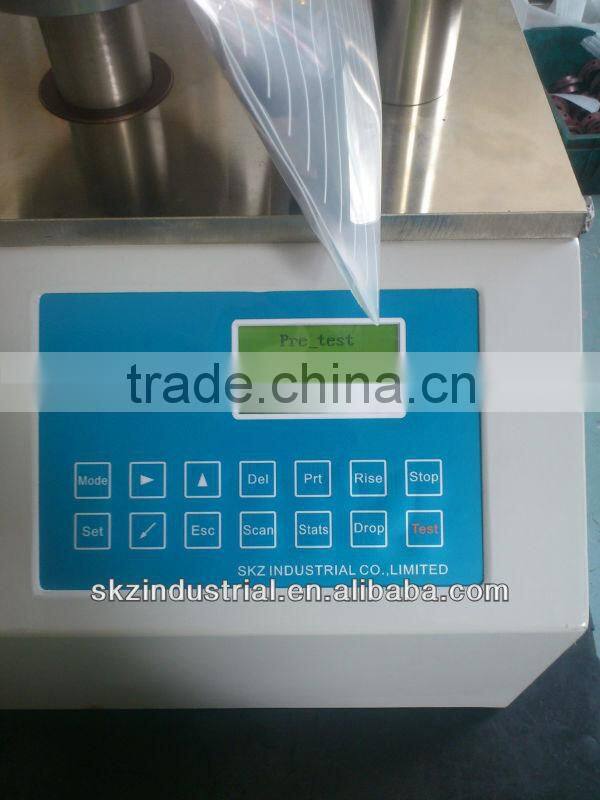

Microprocessor control, automatically carry the test according to testing requests. Protect
press sensor through the protection switch for over- loading. Analyzing the group of
testing data and to show the maximum, minimum, average, standard deviation and
coefficient of variation by LCD, print out the data.
Technical parameter
Press measuring range: 0-5000N, Resolution: 1N.
Accuracy: ±1%
Speed: 12.5±2.5mm/min
Platen distance from top to bottom: 75mm (customized for special dimension)
Mini printer
Dimension: 500×270×520 (mm)
Weight: 70kg
Accessory:
RCT Sample Cutter
ECT/PAT Sample Cutter
FCT Sample Cutter
PAT Clamps
RCT Central Plates
ECT Blocks
