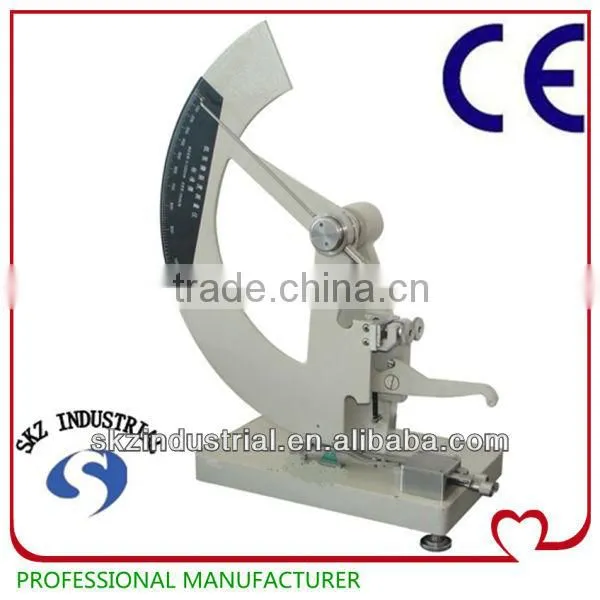

Elmendorf tearing strength tester
It is designed according to ISO 1974(paper--tearing strength test method), GB455.1, It is the special instrument for paper tearing strength test. It is the ideal test instrument for papermaking, scientific research and quality-control department.
Technical parameter:
parameter |
index |
|
Test range |
|
(10~1000)Mn, Standard arm and Light arm are the standard fittings. Lightest arm special customization according to need. |
Standard arm |
(10~1000)mN,degree minimum: 10mN |
|
Light arm |
(10~500)mN, degree minimum: 5mN |
|
Lightest arm |
(10~200)mN, degree minimum: 2mN |
|
Veracity |
Error |
Maximum range20%~80% ±1%, out range±0.5%FS |
Repeat error |
Maximum range20%~80% ≤1%, out range≤0.5%FS |
|
Tearing arm |
(104±1)mm |
|
Beginning angle for tearing |
27.5±0.5 |
|
Tearing distance |
(43±0.5)mm |
|
Specimen size |
(25×15)mm |
|
Clamp distance |
(2.8±0.3)mm |
|
