Specifications
led digital pixel1.Waterproof IP66
2.WS2811/UCS1903 IC, programmable
3.warranty:3years
4.smd 5050 3leds
D26mm digital RGB super brightness cheap price led module pixel
- led digital pixel led digital pixel from YiGao company, the China LED factory since 1995
- D26mm led digital pixel with inlay IC WS2811/UCS1903 , you can design the program and show your attractive idea.
- It can show different color at the same time, specially design for the signs and logo.
- DC12V low voltage drive, low power consumption, and long working life 50000hours.
Specification:
This digital pixel D26mm smd 5050 lighting has 2 covers, one is frosted and another one is
transparent, Its the preferred Pixels for the demanding lighting designers.Each LED pixel has its own
3pin connectors and controlled by WS2811/UCS1903 IC.It can be perfectly work with DMX
controller,SPI (SD card controller).
1. International Protection Rating:IP65.
2.Ideal light sourxce is used in large-scale outdoor advertising pixel light and lighting engineering,not lonly high brightess,can make your signs colorful.
3.LED can be easily removed from the hole,and the installation and maintenance more convenient.
4.LED line length is 100 mm ±5%
Application rang:
1.Outside advertising led sign display board and signage.
2.Amusement lighting
3.DJ,Nigh club ,window display lights
4.LED screen,supermarket.hotel lighting
5.Any place needs color chaning.
Note:
1.Please make sure the power of the transformer bigger than the total power of your project.
2.Please take care of the positive and negative pole of the module when you connect it with the transformer.
3.Do not make the transformer full load.
4.Please make sure the IC and controller when you ma D26mm led digital pixel ke the program.
How to install the smd 5050 D26mm led digital pixel DC 12v di on the led sign display board
1.Calculate the quantity of waterproof size 26mm smd 5050 LED pixel lighting DC 12v you need and the space between two modules according to your led sign display board .
2.Fix the led pixel module light or LED pixel /point light on the led sign display board by screw.
CONNECTION:
1. Signal wire: DC+, DAT, GND (RED:DC12V,GREEN:DAT,YELLOW:GND)
2. DC+ and GND connect to power supplier;DAT and GND connect to controller
3. Relative Controller: SPI controller support ws2801UCS1903; when use DMX decorder, can connect to DMX system
4. Support offline control

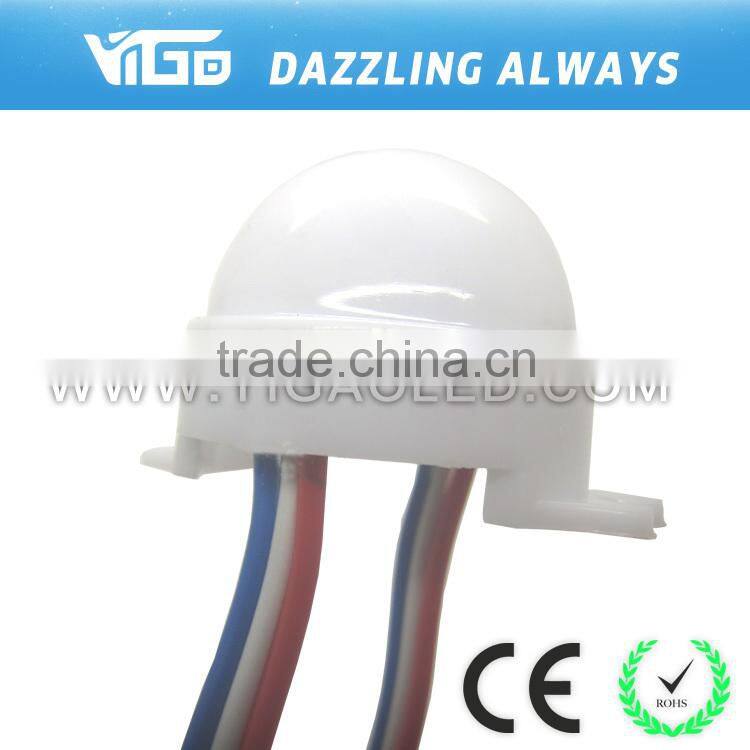

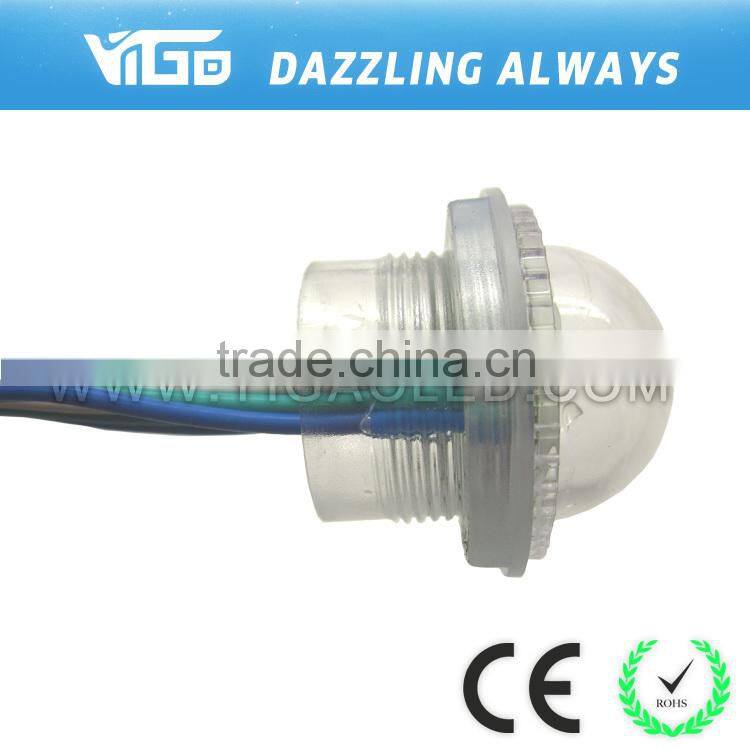

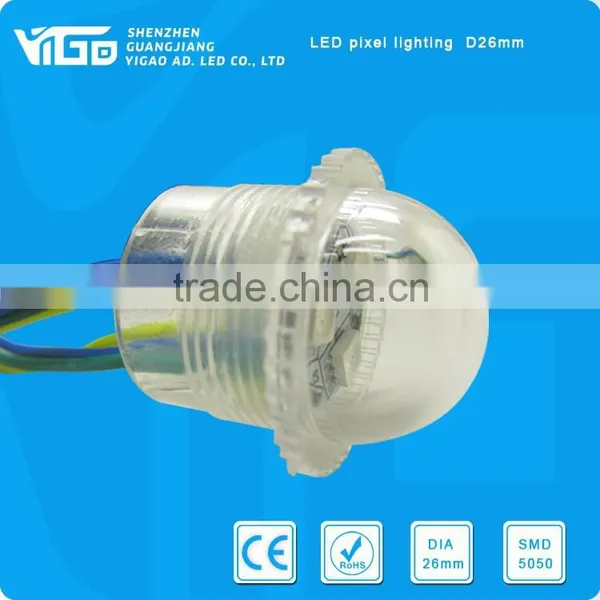

waterproof smd 5050 D26mm led digital pixel photo show

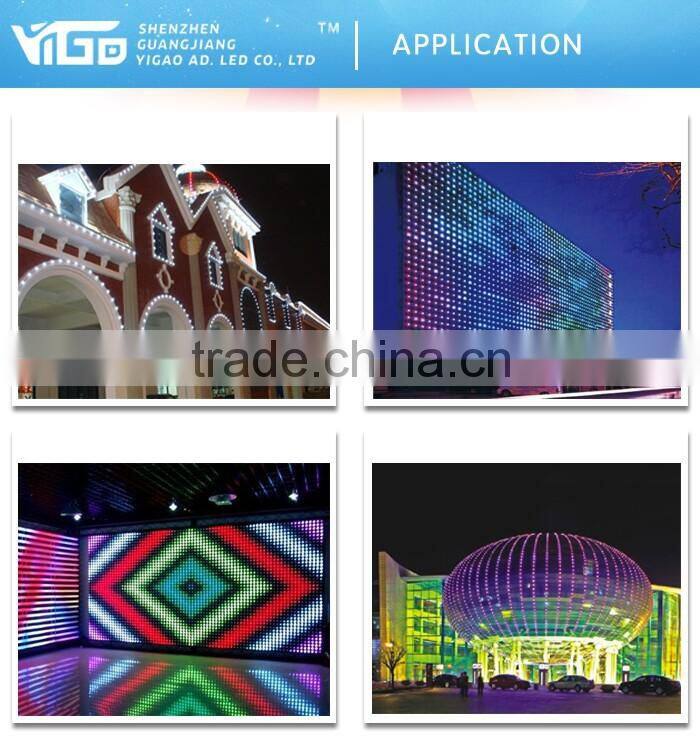

waterproof size 26mm smd 5050 LED digital pixel lighting application show
waterproof size 26mm smd 5050 LED digital pixel lighting product certification show
