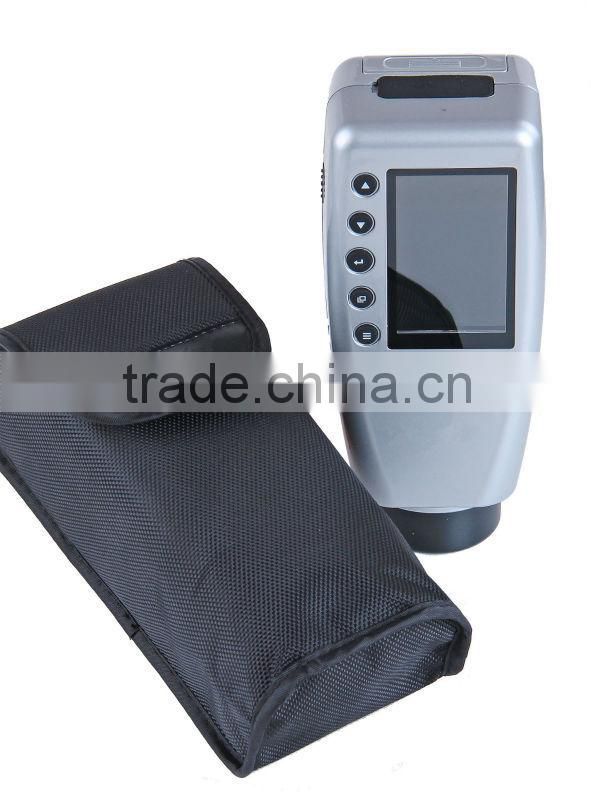

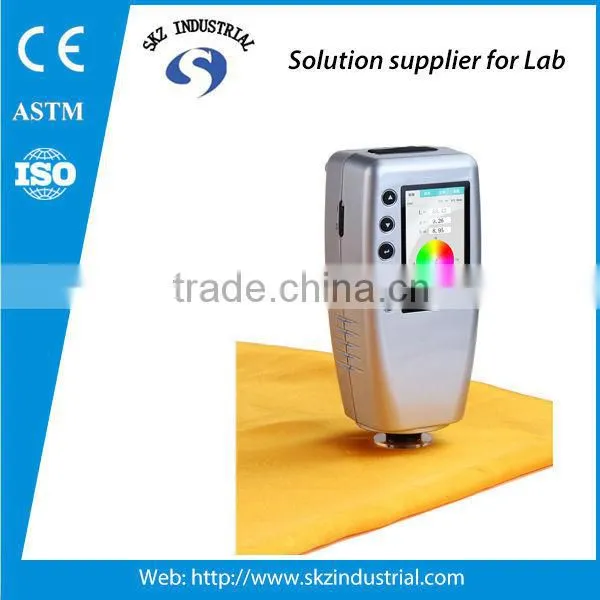

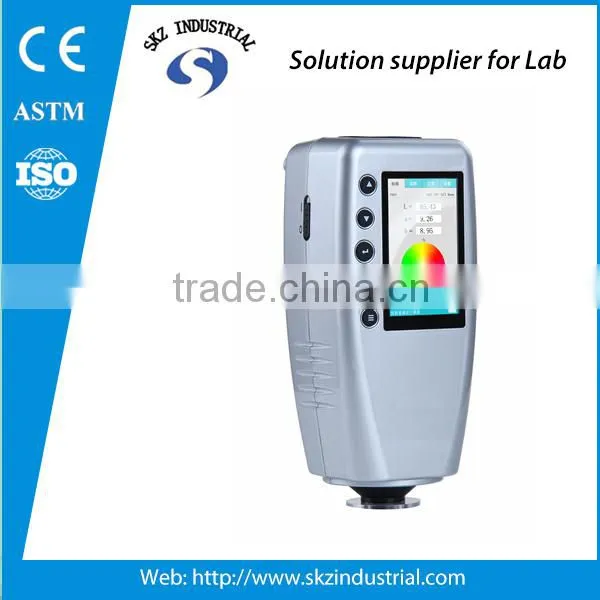

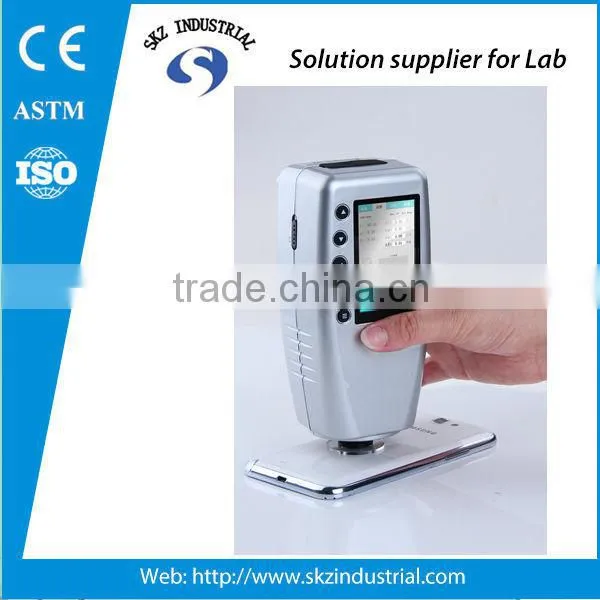

digital portable CIE D65 CWF colorimeter
Color Space |
CIELAB CIELCH CIEXYZ sRGB |
Color Difference Formula |
E*ab E*LCH |
Measurement Caliber |
Φ40mm/φ8mm/φ4mm Alternative |
Illumination Condition |
CIE Recommendation:8/d |
Light Source |
D65 A F(CWF) |
Sensor |
Photodiode array |
Observer |
CIE 10° Standard observer |
Measurement Range |
L: 0 to 100 |
Repeated Accuracy |
E<0.06 |
Table Difference |
E<0.2 |
Measurement Interval |
0.5 Sec. |
Storage Capacity |
Type sample data : 100 groups with testing sample data: 200 groups |
Lifetime of Bulb |
5 years more than 1.6 million measurements |
Display Screen |
TFT true color 2.8inch@(16:9) |
Language |
English |
Interface of External |
USB2.0 (USB-B) RS-232 (115200bps) |
Working Temperature Range |
0℃-40℃(32℉-104℉) |
Storage Temperature Range |
-20℃-50℃(-4℉-122℉) |
Humidity Range |
Relative humidity less than 85%,without condensation |
Weight |
700g |
Size |
199*68*90mm |
Package Size |
400*240*340mm |
Battery Charging Time |
8 hrs |
Battery |
Li-ion battery, 5000 times Measurement |
Standard Accessories |
AC adapter/ 3000mAH Li-ion battery |
Optional Accessories |
powder measuring device/Micro printer |
Pictures for reference:
Picture of Caliber
Use following accessory,If measured material is Liquid:
Use following accessory,If measured material is Powder:
Please feel free to call, or e-mail!
