12v-24v led rgb remote controlzigbee rgb led controller ler

Specifications

Summarization

RGB amplifier applies to all the voltage-controlled LED controller in our company,it can receives PWM(Pulse Width Modulation), each time add one RGB amplifier, the connecting number of led will be more

 than twice, in theory, numerous RGB amplifiers can be connected.

Technical parameters

Size: 176*135*46mm

Shell Type: Iron housing

Net Weight : 560g

Mode of Connection: common anode

Power Supply:DC5V-24V

Input Type :RGB 9 channels

Maximum Load Current :10A/CH

Maximum Load Power:5V/450W,12V/1080W,24V/2160W

Direction for Use

according to the silk-screen prompts on the panel of RGB amplifier, to connect input and output signal wires in order to ensure

 short circuit can not occur between wires,and then connect power for RGB amplifier,and RGB amplifier

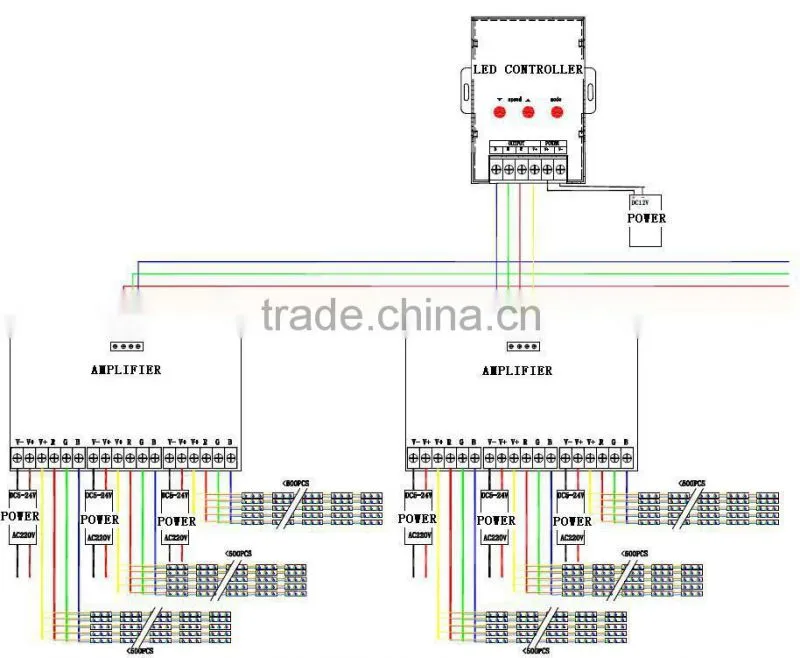

goes hand in hand with LED controller,please refer to the following < Typical applications>.

Technical Application

why choose YIGAO

1. devoting in advertising lighting industry since 1995

2. 16 years depth cooperation & the best supplier of China biggest ad. Equipment chain supermarket

3. Exported from 2006,more than 20 international Customers keep the friendly cooperation so far

4. Durable and economic ,Dazzling always" is our reputation
