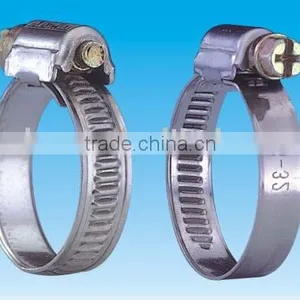

Help CenterZebra Hose Clamps
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
WS
Model Number:
HF-3101
Payment & Shipping
Payment Methods:
Port of Shipment:
by order
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Taiwan, China
Brand Name
WS
Model Number
HF-3101
Material
Stainless Steel
Standard or Nonstandard
Other, by order
Specifications
Well and High Quality hose clampThere are two different kinds of materials, Galvanized Steel and Stainless Steel .
| SIZE | NO. | MM | Packing List | ||||
| Pcs/Box | Pcs/ctn | N.W. | G.W. | CUFT | |||
| HF-3101 Zebra Hose Clamps With band Width 9mm | |||||||
| 1.2" | 9-14 | 200pcs | 2000pcs | 20kgs | 21.0kgs | 0.84' | |
| 5/8" | 4 | 10-15 | 200pcs | 2000pcs | 20.7kgs | 21.7kgs | 0.84' |
| 3/4" | 6 | 10-19 | 200pcs | 2000pcs | 21.5kgs | 22.5kgs | 1.23' |
| 7/8" | 8 | 12-22 | 200pcs | 2000pcs | 22.0kgs | 23.0kgs | 1.23' |
| 1" | 13-26 | 200pcs | 2000pcs | 29.2kgs | 29.2kgs | 1.32' | |
| 1 1/16" | 10 | 16-27 | 200pcs | 2000pcs | 28.4kgs | 29.4kgs | 1.32' |
| 1 1/4" | 12 | 16-32 | 100pcs | 1000pcs | 15.1kgs | 16.1kgs | 1.23' |
| 1 3/8" | 25-35 | 100pcs | 1000pcs | 16.2kgs | 17.2kgs | 1.32' | |
| 1 1/2" | 16 | 26-38 | 100pcs | 1000pcs | 16.5kgs | 17.5kgs | 1.32' |
| 1 3/4" | 20 | 26-44 | 100pcs | 1000pcs | 17.0kgs | 18.0kgs | 1.47' |
| 2" | 24 | 32-50 | 100pcs | 1000pcs | 18.5kgs | 20.0kgs | 1.94 |
| 2 5/16" | 40-60 | 100pcs | 1000pcs | 19.1kgs | 20.6kgs | 2.50' | |
| 2 3/4" | 36 | 50-70 | 100pcs | 1000pcs | 20.7kgs | 22.2kgs | 2.5 |
If you are afraid that the screw lines will damage the surgace of your products,then you can use this type of hose clamps. The part of band is saw edged without a hole so that the screw lines will not contact with hose.You need to use this especially when you are dealing with pipes that are very dangerous. There are two different kinds of materials, one is Galvanized Steel and the other is Stainless Steel.
Well Clamps Co., Ltd. is famous for all kinds of hose clamps. The leader, Mr. Chen, is a manufacturer specializing in hose
clamps with over 30 years of experience in the industry. Well Clamps is the leader and the largest producer of hose clamps in
Taiwan area. Our products own patents in over 20 countries and regions including Taiwan area, Germany, the USA, Italy, and
others. Our brand of WS is famous in the hose clamp market.
