Clamp (auto Parts)

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Taiwan, China

Brand Name:

Model Number:

HF-2203

Well Clamps Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Taiwan port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Taiwan, China

Brand Name WS

Model Number HF-2203

Material Other, Galvanized Steel

Standard or Nonstandard Other, by order

Specifications

Auto parts

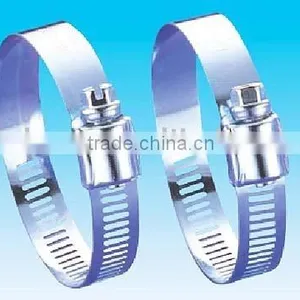

Well and High Quality Hose Clamp
This style with 12.7mm width band and the thickness is 0.6mm.
Galvanized Steel

SIZE	NO.	MM	Packing List
SIZE	NO.	MM	Pcs/Box	Pcs/ctn	N.W.	G.W.	CUFT
HF-2203 12.7mm
1/2"		8-13	100pcs	1000pcs	14.1kgs	15.1kgs	0.61'
5/8"	4	10-16	100pcs	1000pcs	14.2kgs	15.2kgs	0.61'
3/4"	6	13-19	100pcs	1000pcs	15.4kgs	16.4kgs	0.84'
7/8"	8	16-23	100pcs	1000pcs	15.5kgs	16.5kgs	1.23'
1"	10	19-27	100pcs	1000pcs	15.7kgs	16.7kgs	1.23'
1 3/16"		19-30	100pcs	1000pcs	16.0kgs	17.0kgs	1.32'
1 1/4"	12	16-32	100pcs	1000pcs	16.5kgs	17.5kgs	1.32'
1 1/2"	16	21-38	100pcs	1000pcs	19.1kgs	20.1kgs	1.32'
1 3/4"	20	19-44	100pcs	1000pcs	19.5kgs	21.0kgs	1.94'
1 7/8"		29-47	100pcs	1000pcs	20.5kgs	22.1kgs	2.36'
2"	24	32-51	100pcs	1000pcs	21.6kgs	23.1kgs	2.36'
2 1/4"	28	38-57	100pcs	1000pcs	22.4kgs	23.9kgs	2.50'
2 5/16"		38-59	100pcs	1000pcs	22.7kgs	24.2kgs	2.50'
2 1/2"	32	40-64	100pcs	1000pcs	23.7kgs	25.2kgs	2.50'
2 3/4"	36	46-70	100pcs	1000pcs	24.0kgs	25.5kgs	3.42'
3"	40	57-76	50pcs	500pcs	12.6kgs	14.1kgs	1.94'
3 1/2"	48	65-89	50pcs	500pcs	13.1kgs	14.6kgs	2.36'
4"	56	78-101	50pcs	500pcs	15.3kgs	16.8kgs	2.50'
4 1/2"	65	91-114	50pcs	500pcs	15.5kgs	17.0kgs	3.42'
5"	72	105-127	50pcs	500pcs	16.8kgs	18.3kgs	3.42'
These series of products are the common type of the Hose Clamps. They are of different width and thickness. This style with 12.7mm width band and the thickness is 0.6mm. The material of the products are Galvanized ,#300 series Stainless and #400 series Stainless.All of the Galvanized Steel have Zinc Plated. auto parts
