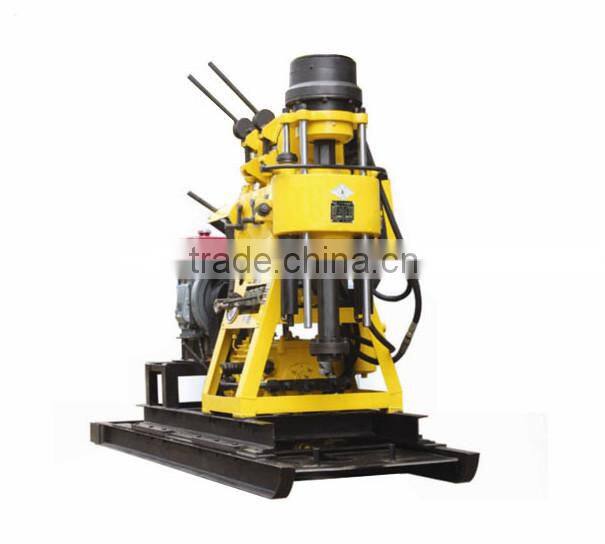

New small portable shallow well drilling used cheap water well drilling rig price for sale
Our drilling rigs are widely used in water well drilling,geological exploration,construction building exploration,drilling inspection of concrete structure holes,river dam construction,subgrade grouting hole drilling abd direct grouting,ground temprerature central conditioning construction,etc..
Drilling rig and accessaries technical parameters and specification is as the following:
1.Drilling Rig Technical Parameters | |
Drilling Depth(m) |
50~100m |
Max. Open Hole Diameter(mm) |
260 |
End Hole Diameter(mm) |
75 |
Drill Rod Diameter |
50mm |
Drilling Angle |
90~75 |
Drill Weight (No include power) |
810kg |
Overall Dimension |
2500*900*1300mm |
2.Spindle | |
Spindle Speed |
142,285,570r/min |
Spindle Stroke |
450mm |
3.Hoist | |
Max. Single Line Hoisting Capacity |
960kg |
Reel Lifting Speed |
0.41,0.82,1.64m/s |
Tightrope Diameter |
10mm |
Tightrope Cubic Measure |
27mm |
Hug Follgate Belt Width |
70mm |
4.Mud Pump | |
Type |
Horizontal Single Urn Twin-action |
Discharge/Displacement |
95/77L/Min. |
Diesel |
S1105 18HP |
Electric Motor |
11KW,1440r/min |
Max. Pressure |
1.2Mpa |
Work Pressure |
0.7Mpa |
Water Inlet Diameter |
30mm |
Water Outlet Diameter |
25mm |
Triangle Conveyre Belt |
B1575mm |

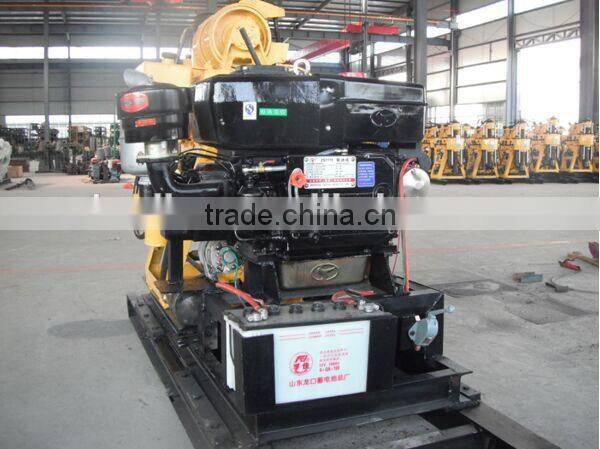

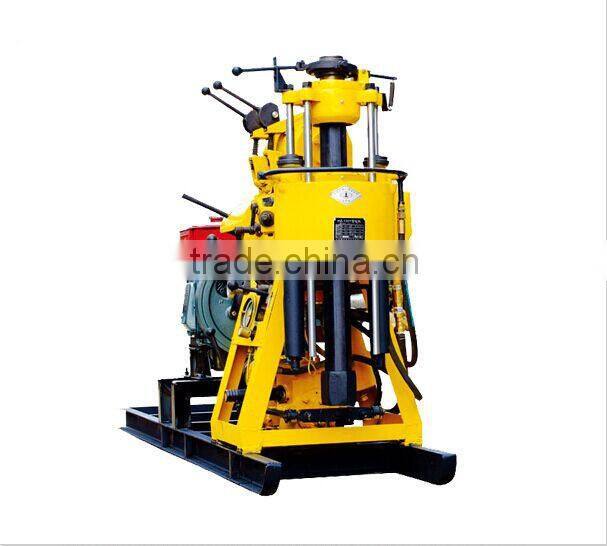

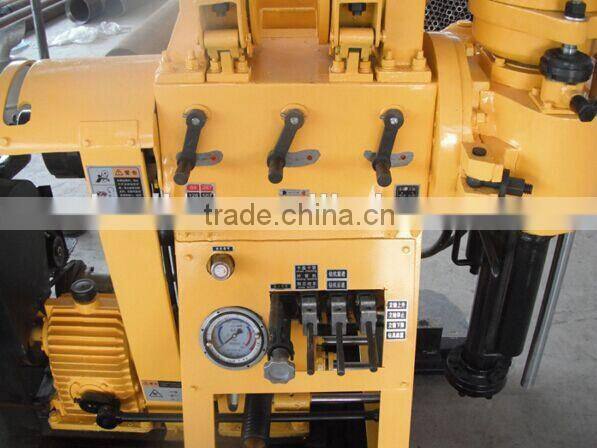

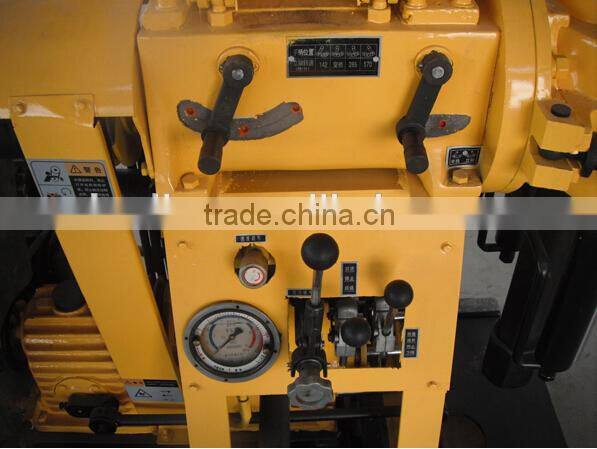

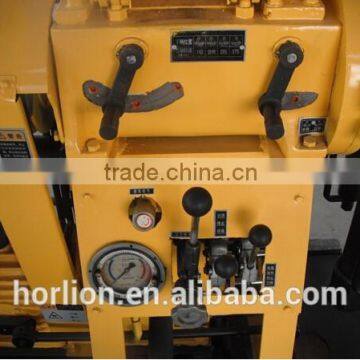

HL-130Y water well drilling rig,control panel and diesel engine picture

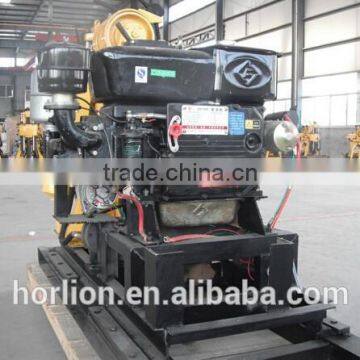

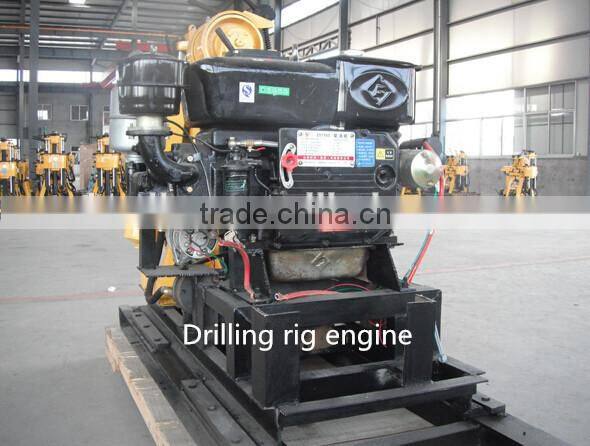

HL-200YY water well drilling rig and engine picture

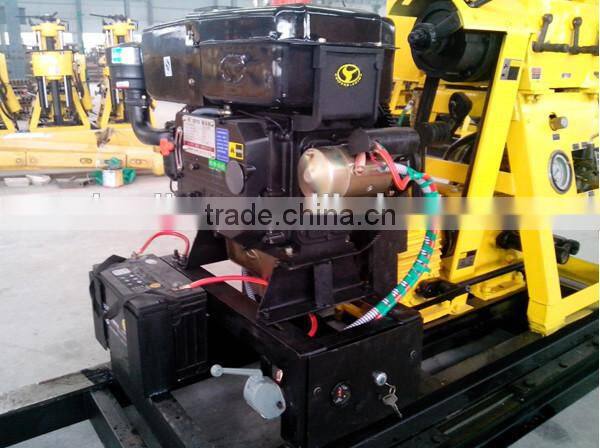

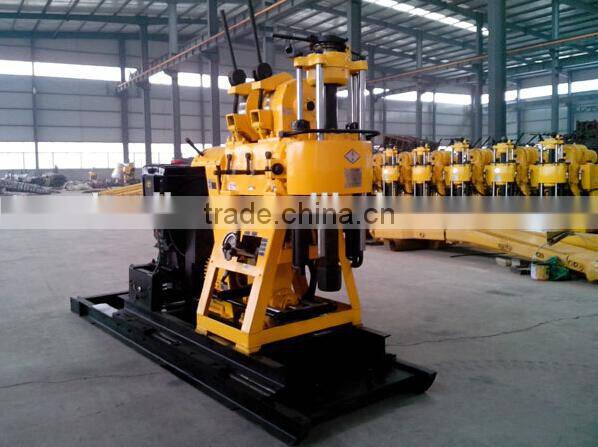

HL-200GT water well drilling rig control panel and diesel engine
Water well drilling rig and accessories is packed with wooden box or according to customer requirement.Packinging & shipping picture as reference:
(1)Produce water well drilling rig,oil well drilling rig,diamond core drilling rig and drilling accessories.
(2)All model drilling rigs are available,MOQ is only 1 set.Many sizes in stock.OEM,ODM. Export to USA,Europe,Asia,Africa,America and Australia.
(3)Fast production for big orders,delivery by sea,truck,air,express.Works on FOB,CFR,CIF.
Shenzhen Horlion Machinery is a raising quality machinery exporter,as we own several drilling rig and tools factory,which ones produce tricone bit,PDC bit,DTH hammer and bit,drag bit,drill pipe (rod),casing pipe water well screen,centralizers,,diamond wireline drilling tools.We have strong support in research,development,production and shipping from our partners.It make us more competitive in quality,price and service.
(1)What type drilling rig do you produce?
Answer: Water well drilling rig,oil well drilling rig,diamond core drilling rig and drilling accessories.
(2)What specification is your drilling rig?
Answer: We have different types and models drilling rig for different drilling purpose.
(3)We are interested in your drilling rig,we have some questions.How can I get your offer?
Answer:Kindly send us E-mail or call us,we will try all best to support you and give you good price.
