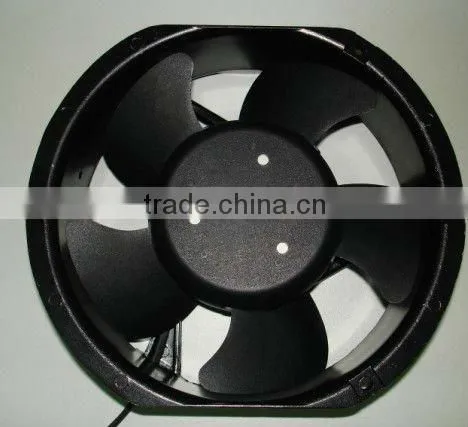

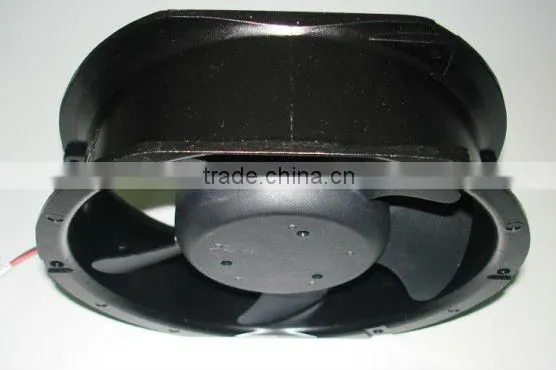

low noise high air flow industrial cooling fans 172*150*51mm
USD $7 - $11
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
You May Like
Product Details
Electric Current Type: | DC | Mounting: | Other, cooling fan | Blade Material: | Plastic |
Place of Origin: | Guangdong, China | Brand Name: | YIMENG | Model Number: | YM2417ANB1 |
Voltage: | 24V | Power: | 14.40 | Air Volume: | 205CFM |
Speed: | 3000RPM | Certification: | CE, CCC, UL, ROHS, Other, UL, CE, CE, CCC, UL, ROHS, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
172*150*51 axial fan,motor protection,
low noise and long life expectancy,
plastic impeller,
dual ball bearing
axial cooling fan 172*150*51
General Specifications:
Frame | Die-cast Aluminum |
Impeller | plastic(UL94v-0) |
Bearing type | Dual Ball Bearing |
Leadwire | UL1007AWG#20 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Expected Life:
Ball Bearing 50,000 hours(40°c)
Specifications:
Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
YM1217ANB1 | 12 | 7.0 to 13.8 | 1.05 | 12.6 | 2800 | 205 | 0.75 | 49 | 740 |
YM1217ANB2 | 12 | 7.0 to 13.8 | 0.9 | 10.8 | 2500 | 183.34 | 0.67 | 44 | 740 |
YM2417ANB1 | 24 | 14.0 to 27.6 | 0.6 | 14.4 | 3000 | 220 | 0.8 | 52 | 740 |
YM2417ANB2 | 24 | 14.0 to 27.6 | 0.5 | 12 | 2700 | 195 | 0.72 | 47 | 740 |
YM4817ANB1 | 48 | 28.0 to 56.0 | 0.38 | 18.24 | 3000 | 220 | 0.8 | 52 | 740 |
YM4817ANB2 | 48 | 28.0 to 56.0 | 0.27 | 12.96 | 2700 | 195 | 0.72 | 47 | 740 |
