dc Fan 172 X 150 X 51mm

dc Fan 172 X 150 X 51mm thumbnail-1
dc Fan 172 X 150 X 51mm photo-1
US$ 1 - 15 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Electric Current Type:
Other, DC / AC
Mounting:
Ceiling Fan
Blade Material:
Plastic
Contact Supplier Request Quote Chat Now
Shenzhen Topfan Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Electric Current Type Other, DC / AC
Mounting Ceiling Fan
Blade Material Plastic
Place of Origin Guangdong, China
Brand Name topfan
Model Number YM4817ANB1
Voltage 48V
Power 18.24W
Air Volume 220.00CFM
Speed 3000rpm
Certification CE, UL, Other, CE,UL, TUV, RoHS

Specifications

Newest ac fan F172 X 150 X 51mm
1.Wildly used in industrial equipment
2.The newest smart fan
3. Price competitive

Discription of Newest ac fan F172 X 150 X 51mm:



 1. Expexted life

1). Ball Bearing  50,000 hours(400C)



2. Allowable Ambient Temperature Range:

1). -100C~+700C (Operating)

2). -400C~+700C (Storage)

3). non-condensing environment



 General Specification

Model YM4817ANB1
Frame Die-Case Aluminum(UL94V-0)
Impeller Plastic(UL94V-0)
Bearing Ball Bual Ball Bearing
Leadwire UL1007AWG24 or Equivalent (+): Red (-0 Black
Motor Impedance Protected and Reverse Polarity Protected



Product Features



Size(mm) Model Rated voltage (v)      Operating Voltage Range(v)    Current amp    (Amp) Rated Input Power  Watt Speed (rpm)  Max air Flow(CFM) Max Static Pressure (Inch-H2o) Noise Leve (dB-A) Weight (g)
172 *150*51 YM4817ANB1 48 28.0 to 56.0 0.38 18.24 3000 220 0.8 52 740

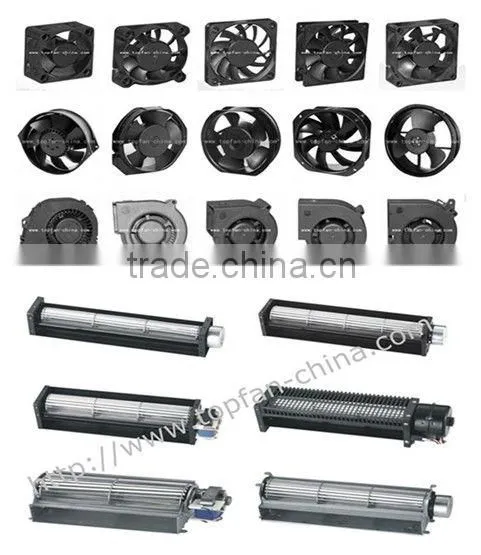

 Our Series of 172 X 150 X 51mm



Size(mm) Model Rated voltage (v)      Operating Voltage Range(v)    Current amp    (Amp) Rated Input Power  Watt Speed (rpm)  Max air Flow(CFM) Max Static Pressure (Inch-H2o) Noise Leve (dB-A) Weight (g)
172 *150*51 YM1217ANB1 12 7.0 to 13.8 1.05 12.6 2800 205 0.75 49 740
  YM1217ANB2 12 7.0 to 13.8 0.9 10.8 2500 183 0.67 44 740
  YM2417ANB1 24 14.0 to 27.6 0.6 14.4 3000 220 0.8 52 740
  YM2417ANB2 24 14.0 to 27.6 0.5 12 2700 195 0.72 47 740
  YM4817ANB1 48 28.0 to 56.0 0.38 18.24 3000 220 0.8 52 740
  YM4817ANB2 48 28.0 to 56.0 0.27 12.96 2700 195 0.72 47 740

dc fan 172 X 150 X 51mmdc fan 172 X 150 X 51mm
