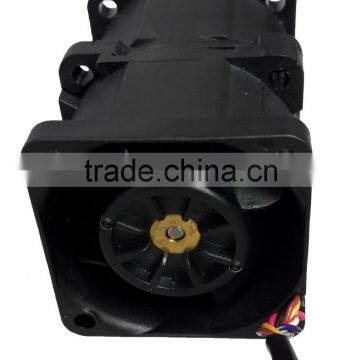

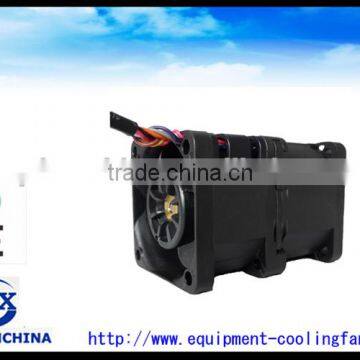

40mmx40mmx56mm Industrial Exhaust Fan 12V DC
Purpose:
Brushless axial dc fan 40mm, low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Expeceed Life:
Ball Bearing 70,000 hours
Description:
Brushless DC Fan, Axial DC Fan, DC Motor Fan, Cheap Fan, Portable Fan, CPU Fan, Computer case fan, laptop fan, PWM Fan, FG cooling fan, LED Digital signage
High speed , Middle speed, Low speed
Plastic Frame and Plastic impeller
5 blades
5V DC 12V DC 24V DC or 48V DC
Ball bearing or Sleeve bearing or Hydraulic bearing
Terminal or Lead wire
Waterproof explosion proof or high proof are can be satisfied.
A: Specifications:

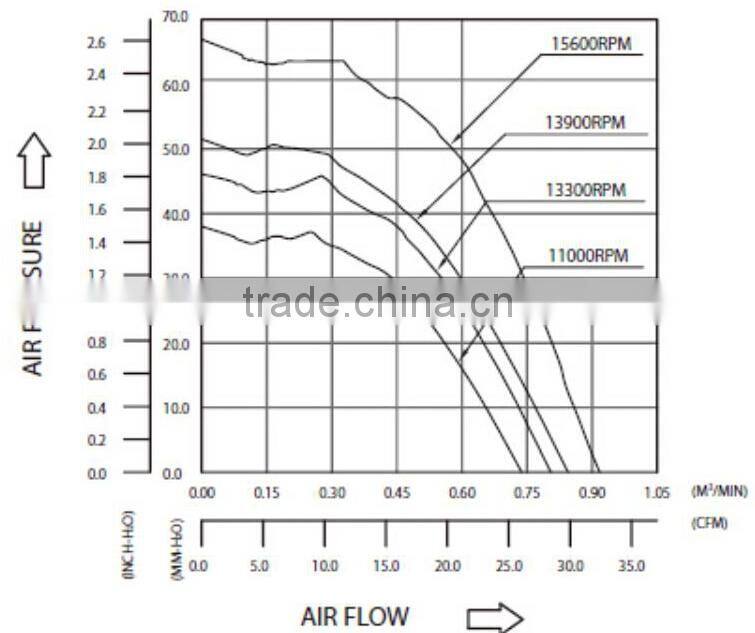

| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight | |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | dB-A | g |
| MX4056ABM1 | B | 12 | 7.0-13.2 | 0.85 | 10.20 | 11000 | 26.05 | 0.74 | 1.50 | 58.00 | 96.00 |
| MX4056ABH1 | B | 12 | 7.0-13.2 | 1.25 | 15.00 | 13900 | 29.83 | 0.85 | 2.03 | 61.50 | 96.00 |
| MX4056ABU1 | B | 12 | 7.0-13.2 | 1.50 | 18.00 | 15600 | 32.41 | 0.92 | 2.64 | 64.50 | 96.00 |
B: Electrical Specification:
ITEM |
|
Specification. Condition |
|||
Locked Rotor Protection |
◊ |
Safety Condition |
|||
|
Auto power off after locked at rated voltage for 1sec |
||||
Polarity Protection |
♦ |
Open circuit when Vcc&GND are exchanged |
|||
◊ |
Circuit won’t be burned within 5 seconds when Vcc &GND are exchanged |
||||
Insulation Resistance |
10MΩ Between unshielded wire and frame at 500VDC/min |
||||
Dielectric Strength |
5mA Max/ Measured b/w lead wire(+)and frame at 500VAC/min |
||||
Special Function |
◊ |
Soft Start |
◊ |
Current Limiter |
|
C. (Main Materials, Parts Specification)
Bearing |
♦ (Dual Ball Bearing) |
◊ |
(Sleeve Bearing) |
|||||||
Frame |
♦ |
PBT of UL94V-0. |
◊ |
Die-cast Aluminum Alloy |
||||||
Impeller |
♦ |
PBT of UL94V-0. |
◊ |
Steel |
||||||
Bobbin |
PBT of UL94V-0. |
|||||||||
Lead Wire |
♦ |
Red(+) |
♦ |
Black(-) |
◊ |
Blue(PWM) |
UL 1571 28# |
|||
◊ |
Yellow(FG) |
◊ |
White(RD) |
2 wires 100±10mm |
||||||
Connector |
No |
|||||||||
Tube |
No |
|||||||||

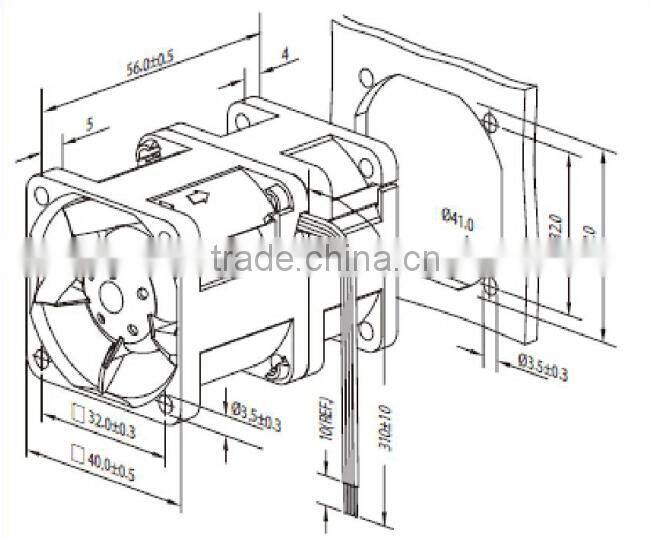

D: Dimensions (Unit:mm)
