Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 3phase 200KW/250Kva Electric Generator Set Powered by VOLVO TAD734GE Engine Supplier's Choice

3phase 200KW/250Kva Electric Generator Set Powered by VOLVO TAD734GE Engine Supplier's Choice

Name: 3phase 200KW/250Kva Electric Generator Set Powered by VOLVO TAD734GE Engine Supplier's Choice
Brand: diesel generator
SKU: 119465951
Availability: InStock

3phase 200KW/250Kva Electric Generator Set Powered by VOLVO TAD734GE Engine Supplier's Choice thumbnail-1

3phase 200KW/250Kva Electric Generator Set Powered by VOLVO TAD734GE Engine Supplier's Choice photo-1

US$ 17,000 - 30,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

diesel generator

Model Number:

TAD734GE

Contact Supplier Request Quote Chat Now

Shenzhen Horlion Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI/SHENZHEN/GUANGZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name diesel generator

Model Number TAD734GE

Output Type AC Three Phase

Speed 1500RPM/1800RPM

Frequency 50HZ/60HZ

Rated Power 200KW/250KVA

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 288A

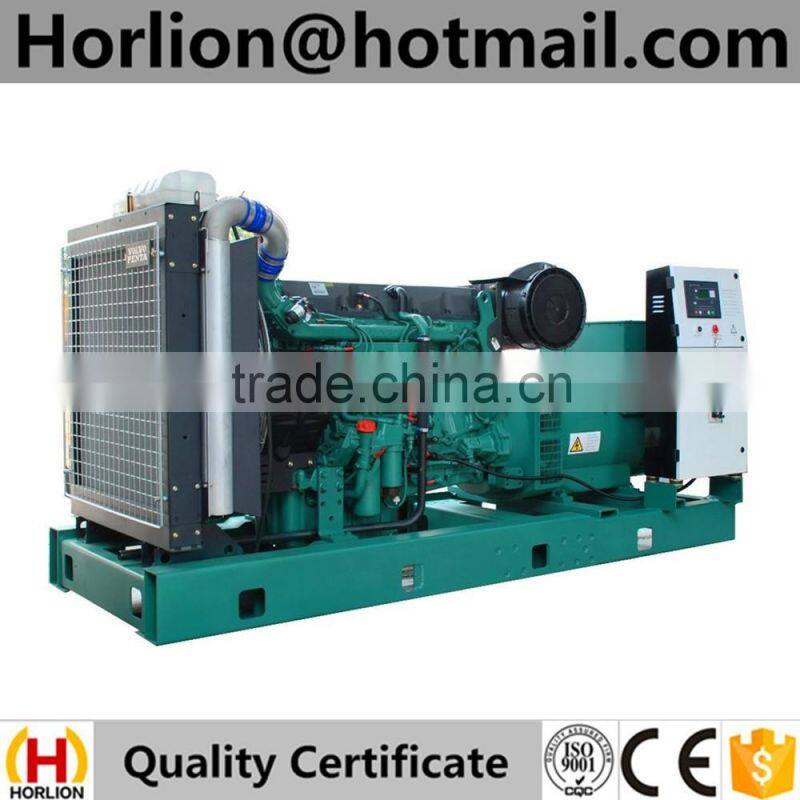

3phase 200KW/250Kva electric generator set powered by VOLVO TAD734GE engine

Product Description

Product details

3phase 200KW/250Kva electric generator set powered by VOLVO TAD734GE engine

Engine

Engine Model	TAD734GE
Engine manufacturer	VOLVO
Number of Cylinders	6 cylinders
Cylinders arrangement	Vertical in line
Cycle	4 stroke
Aspiration	Naturally
Bore×Stroke	108mm x130mm
Displacement	7.15L
Compression ratio	16.5:1
Prime Power/Speed	200KW / 1500rpm
Standby Power/Speed	220KW / 1500rpm
Speed Governor	electrical
Cooling System	Forced water cooling cycle
Steady speed droop	≤1%
Total lubrication system capacity	15L
Fuel Consumption at 100% Load	198 g/kw.h
Starter Motor	DC24V,
Alternator	AC24V

3phase 200KW/250Kva electric generator set powered by VOLVO TAD734GE engine

Alternator

Alternator brand	Stamford, Marathon, Leroy Somer, Mecc-alte, TWGII…
Prime power	200Kw
Frequency/speed	50HZ/1500rpm (60Hz/1800rpm)
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

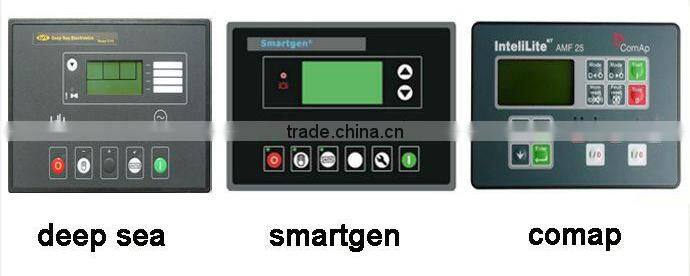

Control panel

Brand

Deepsea/ComAp

The control module gives digital readouts of:

Generator voltage;

Output frequency;

Engine speed;

Battery voltage;

Engine hours run.

The control module has indicators for failure

information:

Overspeed/underspeed,

Emergency stop

Low oil pressure;

High water temperature

Failure to start

Battery charger failure

Automatic shutdown occurs under:

Low engine oil pressure;

High engine water temperature;

Overspeed/underspeed;

Failure to start after three attempts.

The following Gensets spare parts: engine brands, alternator brands and Control panel for optional

Rated power	Engine	Alternator	Control panel
20kw~1300kw	Cummins	Stamford Leroy somer Marathon Mecc alte ABB Chinese alternators	Deepsea ComAp Harsen Smartgen
8kw~1600kw	Perkins
68kw~504kw	Volvo
20kw~500kw	Deutz
220kw-2400kw	MTU
280kw-800kw	MAN
600kw-1800kw	Mitsubishi
50kw-650kw	Doosan Daewoo
2kw~2500kw	Chinese engines

Warranty

1). Guarantee period: one year or one thousand hours, take the first as standard.

2). Any trouble of breakdown caused by installation, design or material, we will take charge of the repairment

3). Any trouble or breakdown of the easily damaged parts and other parts which caused operation or no maintenance will not included in the guarantee, but we offer spare parts with cost price, and our engineers can help to repair the generator to work again.

Criterion

Industry Standard:GB1105/GB2820

International Standard:ISO9001:2000

Generator type

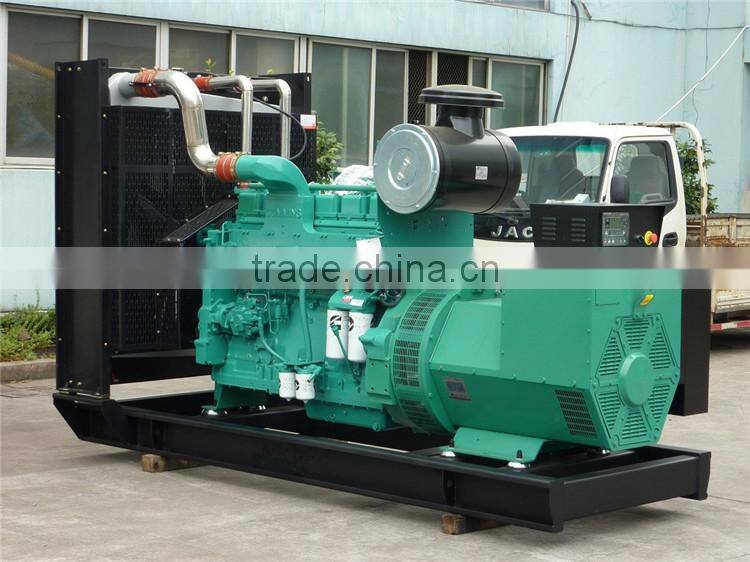

Open Type but not contains Base fuel Tank

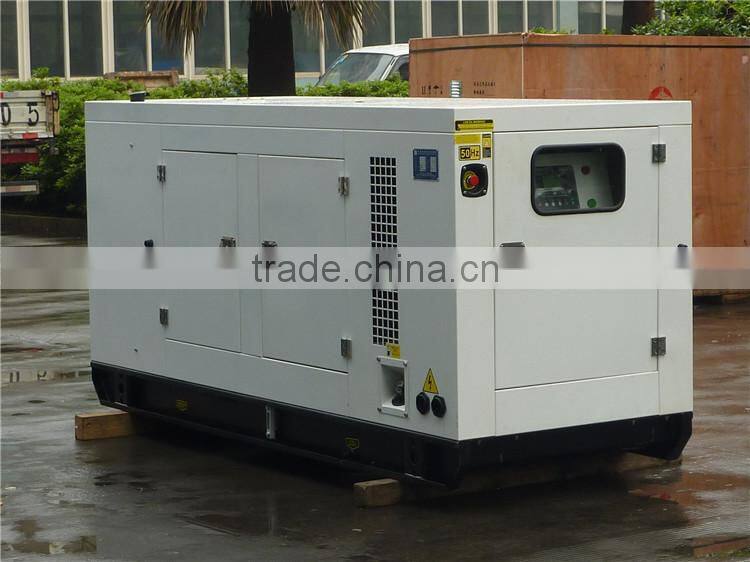

Soundproof Enclosure Type

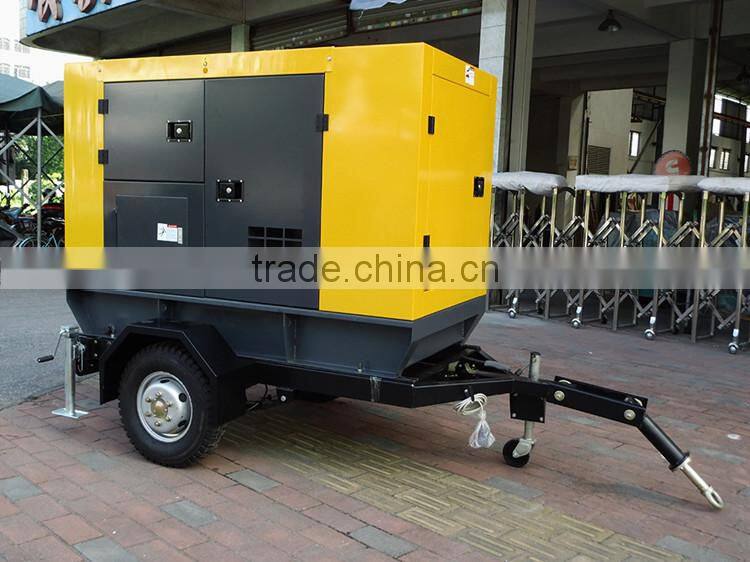

Portable Silent Type

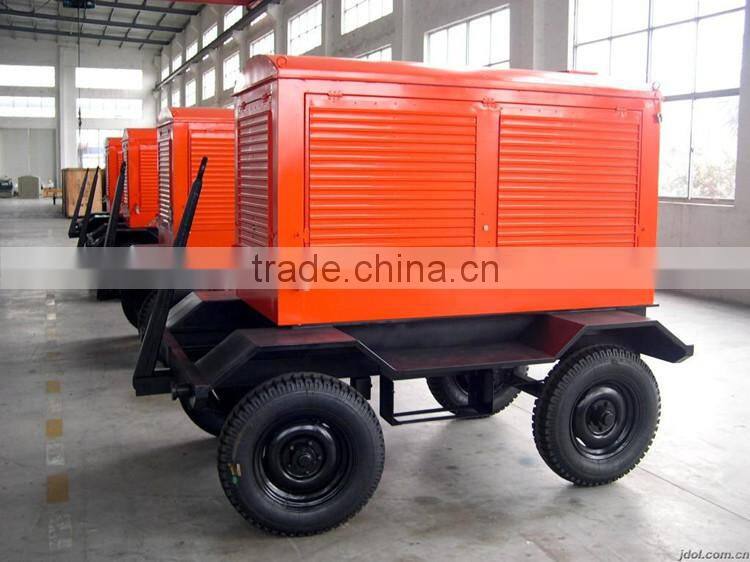

Portable canopy Type

Control Panel

Application Area

Standby Use: Shopping Mall,Factory,Office Buliding,Bank,Farms,Hospital,School etc,any places

need backup power;

Prime Use:Oil Field,Road Construction,Mining etc,any places without City Power.

Trade Process

Trade Terms:EXW,FOB.CFR,CIF,DDU.

Payment Term: 30%TT as deposit,70%TT before Shipment.

Delivery Time: 3-15 working days.

Packing:Plywood Pallet,Plywood Case,Plastic Film.

Shipping Port:Shanghai,Ningbo,Qingdao etc.

Packaging & Shipping

Our Services

Presale: Expert engineers offer technical consultation and assort guidance to our customers, such as choose the generator type, assort, design the generator room, and so on. To solve any questions and offer technical help during any time.

Onsale: Once we get inform from our customer, we send technical engineers to scene and help to installation and debug the generator, and cooperate with customer to check and accept the generator.

After-sale: 1. Design machine room and the power distribution of the generator.

2. Installation and debug the generator.

3. Train the technical engineer of operating and the maintenance for the customer.

4. Establish record system and offer follow-up service and regular inspection.

5. Offer spare parts and technical help at any time.
