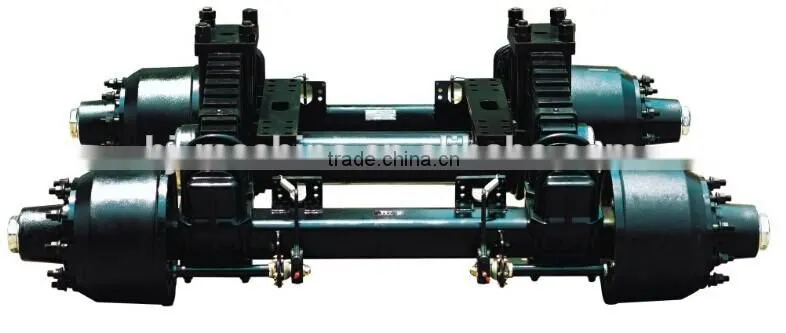

HJ Low bed ten holes bogie for trailer
- 20000 Set / Sets per Month
- GUANGZHOU HUANGPU
- T/T
- 2024 Cast steel EQUALISER 065000
- High quality and beautiful oil seal ring wheel bearing ring for BPW 0301006120
- High quality and nice center ring for BPW 0311200420
- High quality and beautiful oil seal ring wheel bearing ring for BPW 0301006120
- Rail Aligner for Track Welding
- Portable Railway ballast Tamper for railway maintenance work
Product Details
Parts: | Trailer Suspension | Max Payload: | 24TON | Place of Origin: | Guangdong, China |
Brand Name: | HJ | Model Number: | HJBLK24006138560000D980 |
Product Description
Product feature
Technology introduction
1. Upper and lower spring seat welding process
Welding the plate first and then mill to ensure parallelism tolerance less than or equal to 0.1mm;use specialized tool to ensure the distance tolerance of seats s within 0.5mm.
2.Lesf spring technology process
On the process of positioning four pins, the key is to ensure the position of center hole of leaf spring and pin hole. We use drilling jig for leaf spring based on the center hole of leaf spring, and that three holes are machined at the same time to ensure the three holes on the same line; reduce the distance tolerance of pin hole between center hole to ensure the axle and leaf spring is vertical.
3.Assembly technology

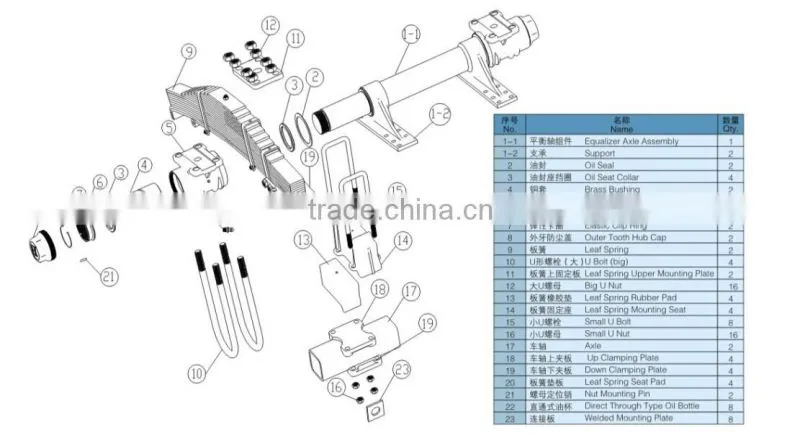

We adopt our special technology: expect for using small u bolt to fix the leaf spring and axle, also fixed by the four pins on the leaf spring pad and upper plate(shown as below )
se specialized tool to ensure two axles parallel when assembly,ensure two axles parallel by the pin positioning even the fully loaded vehicle on strong impact. Ensure vehicle work under bearing stress evenly and reduce the wear for the tyre .
Most domestic company use small u bolt to fix only but not using the positioning on the four pins .It will be overproof between the axle and leaf spring when vehicle in operation without four pin positioning. The two axles will not be parallel thus will cause uneven on the car, which will make the tyre wear.
1,Huangjing Machine manufacture Co.,LTD was found in 2002 and is an ISO9001:2000 and TS14969 manufacturer of semi trailer axles assembly,providing all kinds of suspension system and other trailer parts.
2, We have automatic stamping machine,multi-stage stamping machine,Welding robot,advanced painting equipment,enable to new automatic assembly production line and automated painting line.
3,Optimized design,reasonable techniques,ensure HJ to provide customers with assorted and high performance 9T-18T semi trailer axles assemble,24T-36T single point suspension(bogie) assembly,2-4 axles mechanical suspension assembly,28T cantilever bogie and semi trailer spare parts.
The certification
Thanks very much for your time and interests in our products. for more detailed information,please contact with us by skype:HJ-Crystal, any of your action or thoughts will be highly appreciated by us, of course, we sincerely welcome your visiting at any time.
