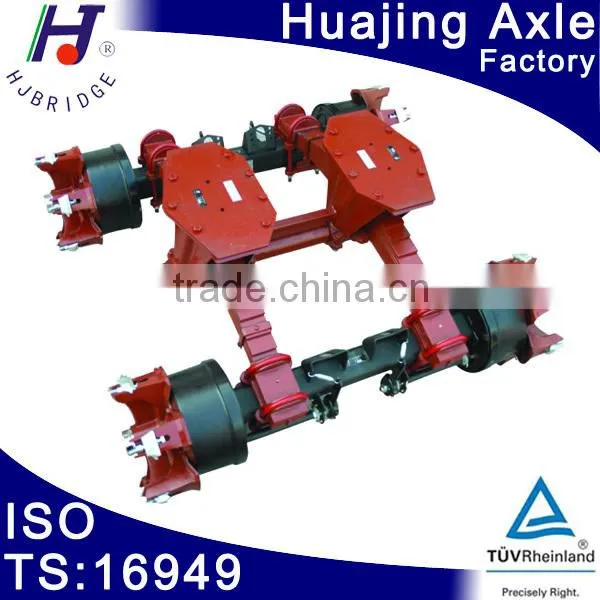

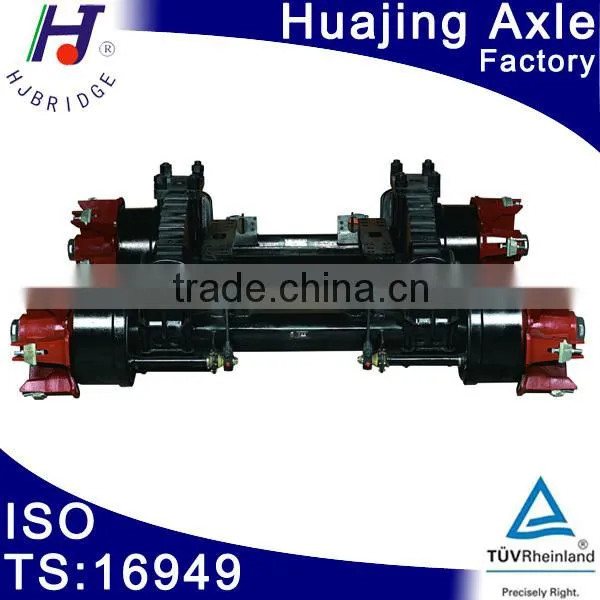

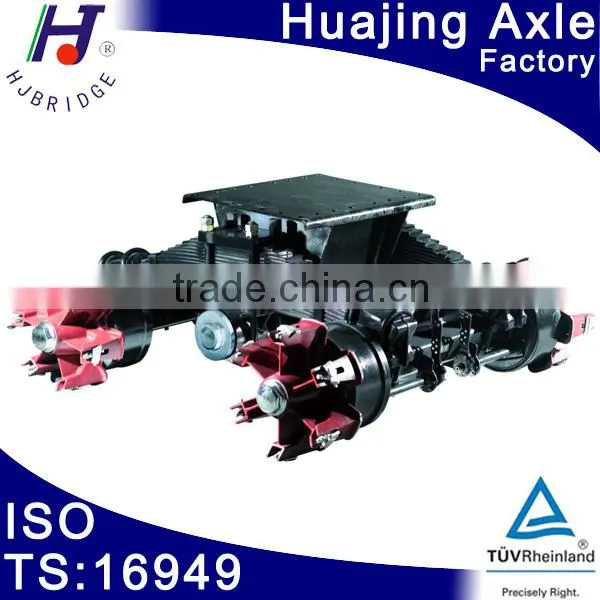

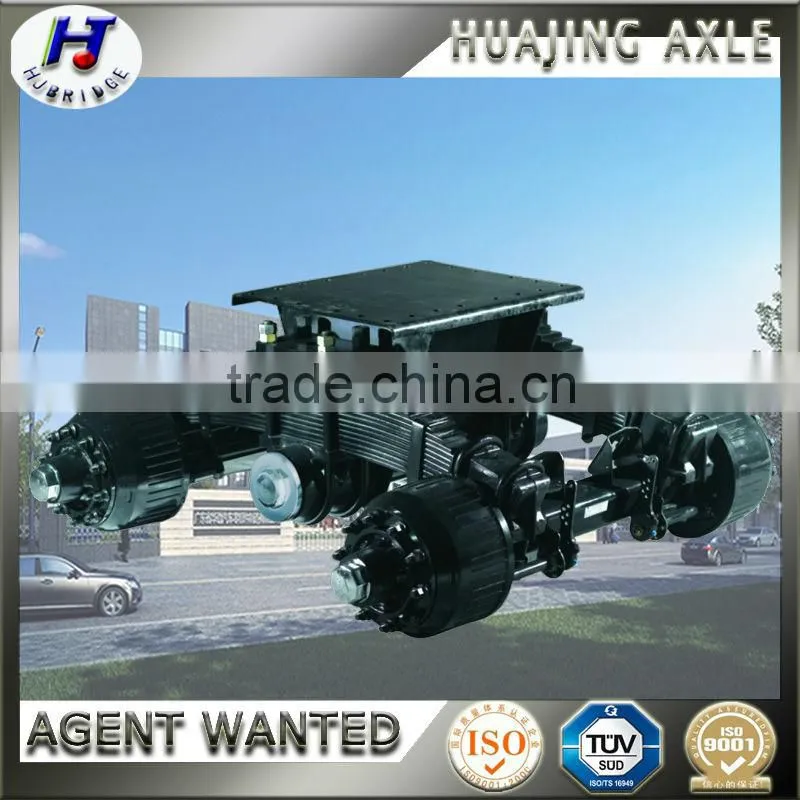

24Ton heavy duty semi-trailer spider bogie
| Item No. | Max capacity | Bearing | Track size | Axle tube thickness | Brake size | Wheel rim PCD | Bolt | Axle spacing | Leaf spring center distance | Weight(kg) |
|
HJBPH2400613854A12C12D980
|
24T | 33118/33213 | 1840 | 14 | 420*200 | 335*280.8 | 10-M22*1.5 | 1385 | 900 | 1900 |
|
HJBPH280061550A12C12D900X
|
28T | 33215/32219 | 1840 | 16 | 1550 | 2348 | ||||
|
HJBPH320061550A12C12D900X
|
32T | 32314/32222 | 1840 | 16 | 1550 | 2404 | ||||
|
HJBPH260061550A12C12D1150X
|
36T | 32314/32222 | 2090 | 18 | 420*220 | 1550 | 1150 | 2468 |
Packaging Details: assembly or in bulk
Delivery Detail: within 10 days when confirm order
After service:
--Our company holds the notice all the time"frist -class goods,reasonable price.
--Perfect after - service', we always think of your demand ahead of time never.
--Ignore every bit demand of clients during the service.Let our sincereness and specialized technique be always with you!
Name: Guangzhou Huajing Machine Manufacture Co.,Ltd
Address:Lanyuan road Zhaidong Xintang town,Zengcheng Guangzhou province, China
Year of establishment: 2002
Company type: professional trailer parts manufacturer
Employees: around 800
Areas: 400,000 square meters & 8 modern workshops for tatal Guangzhou and Qingyuan
Certificates: ISO9001;TS16949
Maximun production of capacity is: 430,000 alxes/year
40,000 suspension/year
100,000 landing gears/year
1,000,000 brake shoes/year
8000 tons forging parts/year
Characteristics of Heavy Duty Single Point Suspension Semi-trailer Bogie :
1. HJ 24T,28T ,32Tand 36T heavy duty single point suspension semi-trailer bogie with high precision, which can ensure diagonal tolerance of two axle (L1-L2) less than or equal to 5mm, also can ensure distance of two axle (L3-L4) less than 3mm. If have special requirement, it can be control within 1.5mm.
2.HJ 24T heavy duty single point suspension semi-trailer bogie with axle use advanced punching techology,distance between holes on the mounting plate control within 0.5mm.
3. HJ 24T drum type bogie with axle, upper and lower spring seat use qualified forging material. Interior metal is more compacting, long service life andc high yield strength. Tensile strength reachs 420MPa, yield strength reachs 235MPa.
4. HJ heavy duty single point suspension semi-trailer bogie use H62 pure brass bush and Mobil grease, work steadily and efficiently even in the extreme case.
5.Equalizer beam welding: there are special requirement to machine a groove onthe oil seal seat and use specialized tools to press the oil seal seat in order to ensure the distance torlerance less than or equal to 1mm.
6.Upper and lower spring seat welding: welding the plate first andf then mill to ensure parallelism tolerance less than or equal to 0.1mm; use specialized tool to ensure the distance tolerance within 0.5mm.
7.On the process of positioning four pins, the key is to ensure the position of center hole of leaf spring and pin hole. We use drilling jig for leaf spring based on the center hole of leaf spring, and that three holes are machined at the same time to ensure the three holes on the same line; reduce the distance tolerance of pin hole between center holwe to ensure the axle and leaf spring is vertical.
8.Except for using small U bolt to fix leaf spring and axle, also fixed by four pins on the leaf spring pad and upper plate. Use specialized tool to ensure two axles parallel when assembly, ensure two axles parallel by the pin positioning even fully loaded vehicle on the strong impact. Ensure vehicle work under bearing stress evenly and reduce wear for tyre.
Customer question: How long is the warranty of your products?
Our sincerely answer: 3 years of axle beam, under normal use situation if any brake, we can change one on for free.
Customer question: Your company are factory or trading company?
Our sincerely answer: We are factory and also one of the biggest semi-trailer spare parts manufacture in Asia.
