AC 120V Housing Centrifugal Fan Diameter 150MM / Blower Fan Motor
- shenzhen
- T/T
You May Like
-
3.3V - 5V Micro DC Brushless Blower Fan 18x18x4mm
-
12V 24V DC Centrifugal Blower Fan With PWM And FG 100*25mm
-
4.7inch High Speed dc Centrifugal Fan/air Puifier Cooling Centrifugal Fans
-
1 Inch Industrial Blower Fan 25mmx25mmx8mm
-
High Temperature 120mm Air Purifier Fan 24v DC Centrifugal Fan
-
China 4.7 Inch High Temperature Centrifugal Axial Fan 120x120x32mm 12v/24v/48v
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Other, blower fan | Place of Origin | Guangdong, China | |
| Brand Name | MX/OEM/ODM | Model Number | MX16060GBH22 | |
| Power | 85-198W | Voltage | 115/120V,220/240V | |
| Air Volume | 207-283CFM | Speed | 1670RPM-2300RPM | |
| Certification | CE, ROHS | After-sales Service Provided | No overseas service provided |
Product Description

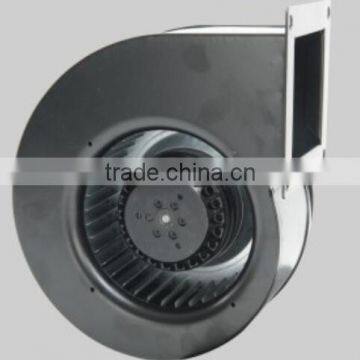

AC 120V Housing Centrifugal fan Diameter 150MM / Blower Fan Motor
Applications:
Topfan’s Φ150mm AC Centrifugal fan products are utilized by all type of machines which required heat reduction systems, such as computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
General Specification
Material :
* Impeller : Steel Sheet, Rotor : Aluminum Casting
Protection Class: IP44
Insulation Class: F
Bearings: Ball Bearin gs
*Allowable Ambient Temperature Range: -10℃ to +70℃ (Operation)
-40℃ to +70℃ (Storage)
Competitive Advantage :
*Qualified , cost effective and easily operated
*Small in shape , have compact structure
*UL , CE , Rohs , CUL , CCC
* Competitive Pricing
* Keep Investing and Developing In New Products
* The Most Advanced Testing and Measuring Equipment
* On - Time Delivery

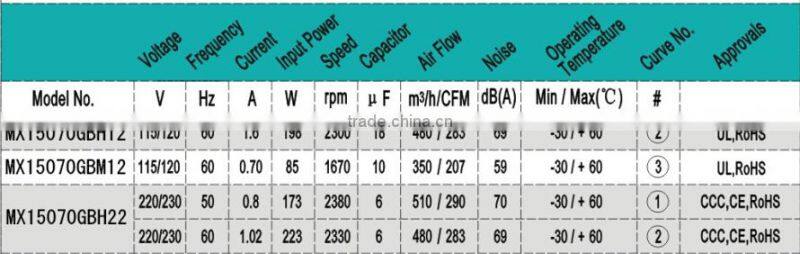

Specifications:

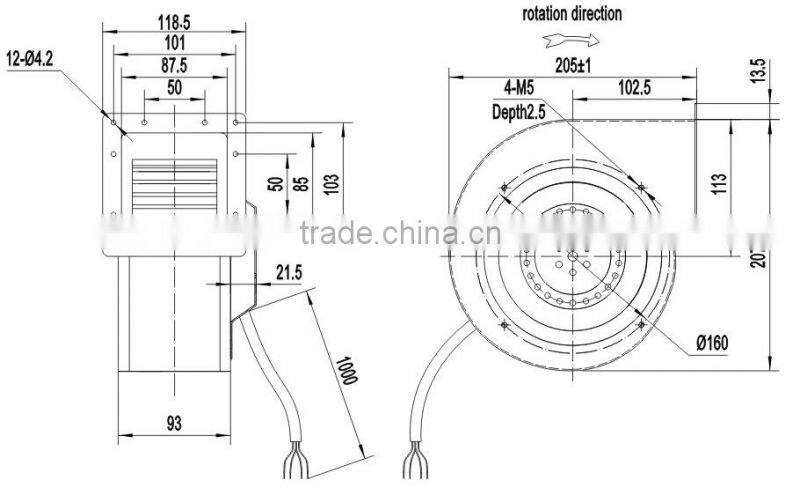

Dimension (Unit:mm)

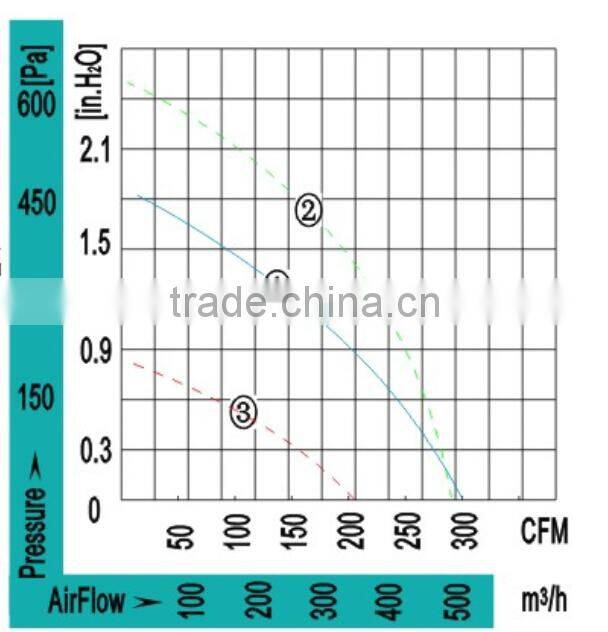

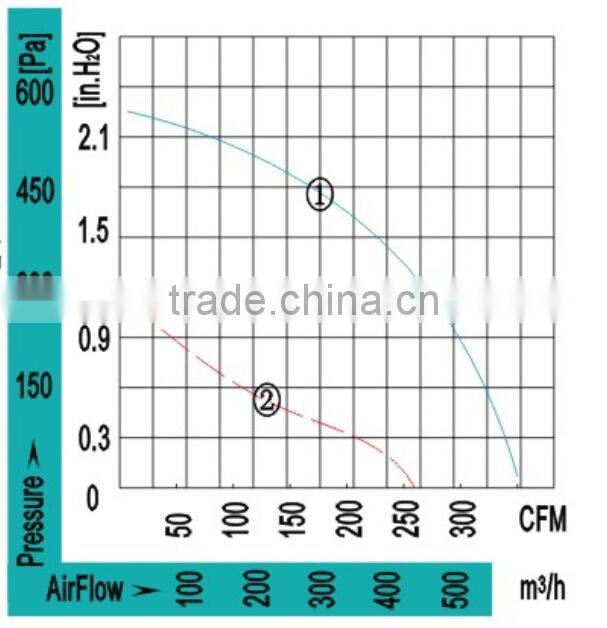

Fan Performance Curve
FAQ:
Q1. Are you factory?
A1. Yes.welcome to visit our factory.
Q2. All products have a warranty?
All kinds of products at least 1 year warranty.
Q3. Can we design packaging?
A3. Yes.Default is regular packing,we can make customer's own packing.
Q4. Can we add our logo on products?
A4. Yes.
Q5. How to control the quanlity of products in your company.
A5: 100% total testing before each of fan leaves our factory.
Q6. can we customize product?
A6. Yes, OEM&ODM.
