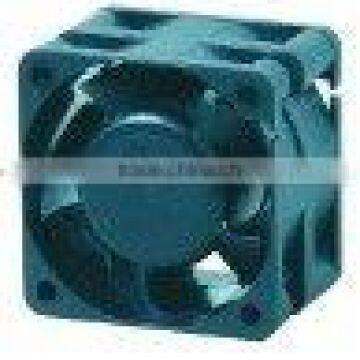

40mm Brushless Fan 40x40x28mm With Big Airflow
US$ 1 - 15
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Application:
Other, computer case, Hard Drive, Power supply
Type:
Heatsink
Heatsink Material:
Other, plastic cooling fan
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Application
Other, computer case, Hard Drive, Power supply
Type
Heatsink
Heatsink Material
Other, plastic cooling fan
Brand Name
topfan
Model Number
YM1204PAZB1
Place of Origin
Guangdong, China
Discription of New cooler fan Z40 X 40 X 28mm
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow (CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 40*40 *28 | YM1204PAZB1 | 12 | 7.0 to 13.8 | 0.52 | 6.24 | 13000 | 24 | 1.08 | 52 | 40 |
1. Frame: Plastic(UL94V-0)
2. Impeller: Plastic(UL94V-0)
3. Bearing type: Dual Ball Bearing
4. Leadwire: UL1007AWG#24 or Equipment (+): Red (-): Black
5. Motor: Impedence Protected and Reverse Polarity Protected
6. Certification: ISO9000, UL ,CE, RoHS, TUV
7. long life time expectancy: 50,000 hours(400C)
8. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment
Discription of our series Z40 X 40 X 28mm:
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow (CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 40*40 *28 | YM1204PAZB1 | 12 | 7.0 to 13.8 | 0.52 | 6.24 | 13000 | 24 | 1.08 | 52 | 40 |
| YM1204PAZB2 | 12 | 7.0 to 13.8 | 0.36 | 4.32 | 10000 | 15.9 | 0.6 | 42 | 40 | |
| YM2404PAZB1 | 24 | 14.0 to 27.6 | 0.26 | 6.24 | 13000 | 24 | 1.08 | 52 | 40 | |
| YM2404PAZB2 | 24 | 14.0 to 27.6 | 0.17 | 4.08 | 10000 | 15.9 | 0.6 | 42 | 40 |
