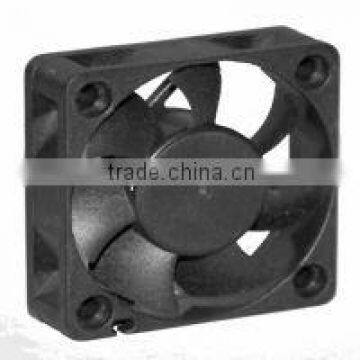

50*50*15mm dc Brushless Fan
US$ 1 - 15
/ Piece
500 Pieces(Min. Order)
- SZ/ Hongkong
- T/T
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | topfan | |
| Model Number | YM1205PHS(B)2 |
Product Description
Specifications
50*50*15mm 12V dc brushless fanHign speed, Plastic frame, Quiet
CE,UL,ROHS,TUL certifications
Sleeve/Ball bearing, leadwire
50*50*15mm 12V dc brushless fan for LED power supply cooling:
Shenzhen Topfan Tecnology Development has 14 years expirence in manufacturer and reseacher the cooling fan. Our product are widely used for cooling system of kinds of electric product and other product.
CE,UL,ROHS,TUV ISO9001:2000 certifications
specifications:
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 50 * 50 * 15 | YM1205PHS(B)1 | 12 | 7.0 to 13.8 | 0.14 | 1.68 | 6000 | 15.2 | 0.28 | 33 | 29 |
| YM1205PHS(B)2 | 12 | 7.0 to 13.8 | 0.12 | 1.44 | 5500 | 14.1 | 0.23 | 30 | 29 | |
| YM1205PHS(B)3 | 12 | 7.0 to 13.8 | 0.1 | 1.2 | 5000 | 12.8 | 0.19 | 27 | 29 |
Detail introduction
1. Expexted life
1). Ball Bearing 50,000 hours(400C)
2). Sleeve Bearing 30,000 hours(400C)
2. Allowable Ambient Temperature Range:
1). -100C~+700C (Operating)
2). -400C~+700C (Storage)
3). non-condensing environment
General Specification
| Frame | Plastic(UL94V-0) |
| Impeller | Plastic(UL94V-0) |
| Bearing Type | Sleeve Bearing & Bual Ball Bearing |
| Leadwire | UL1007AWG24 or Equivalent (+): Red (-0 Black |
| Motor | Impedance Protected and Reverse Polarity Protected |
More detail information, please contact with me as soon as possible ! Thanks
