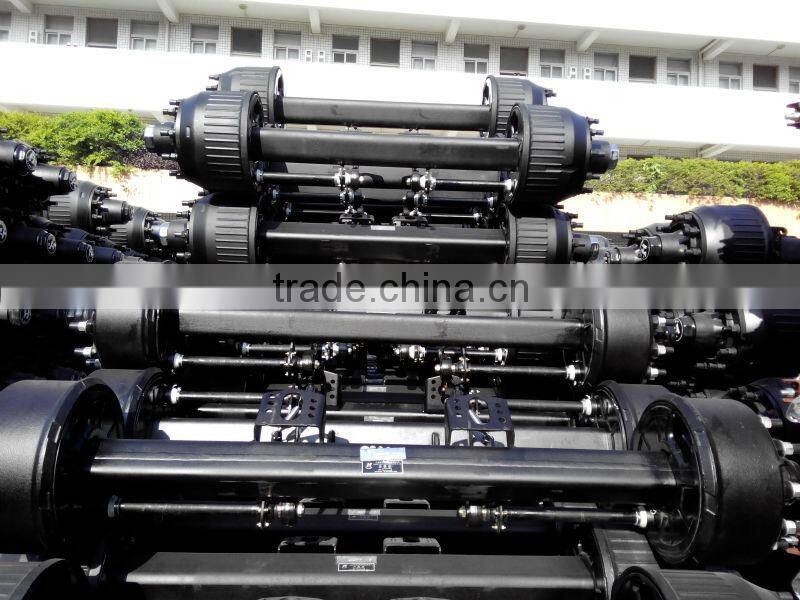

BPW type Semi trailer bogie
| Item NO. |
Rated load (kgs) |
Weight (kgs) |
Axle Tube (mm) |
Brake linning (mm) |
Track (mm) | P.C.D (mm) | Tyre Screw | Steel Turn position (mm) | Dual spacing(mm) |
leaf spring distance(mm) |
bearing type |
| HJBPH24006B | 24000 | 2040 | 150*150*14 | 420*200 | 1870 | 335 | 10-M22*1.5 | 281 | 1400 | 980 | 33213/33118 |
| HJBPH28006 | 28000 | 2450 | 150*150*16 | 420*200 | 1870 | 335 | 10-M22*1.5 | 281 | 1550 | 900 | 33215/32219 |
| HJBPH32006 | 32000 | 2515 | 150*150*16 | 420*200 | 1870 | 335 | 10-M22*1.5 | 281 | 1550 | 900 | 32314/32222 |
About Us:
Name: Guangzhou Huajing Machine Manufacture Co.,Ltd
Address:Lanyuan road Zhaidong Xintang town,Zengcheng Guangzhou province, China
Year of establishment: 2002
Company type: professional trailer parts manufacturer
Employees: around 700
Areas: 250,000 square meters & 8 modern workshops
Certificates: ISO9001;TS16949
200,000 sets of axle assembly; 20,000 sets of suspension; 1 million sets of brake shoes and other parts
Our products as follow:
Wheel rim: Tube type , different size for truck, semi-trailer
Axle: American type & German type with different capacity.
Leaf Spring: Conventional and parabolic type with different size.
5th wheel & King pin: 2'' & 3.5'', Forging type
Suspension: 1axle, 2axle & 3axle with different steel plate thickness, Bpw type,American type
Air Suspension: 1axle, 2axle & 3axle with or without lifting
Bogie: 24tons, 28tons, 32tons,drum and spoke type
Landing Gear: Gear outside & Gear inside with capacity 25tons, 28tons, 30tons and 35tons
Air Chamber: T14, T16, T24, T30, T24T30, T24T24, T30T30
Brake shoe:420*180,420*200,420*220
Drake drum:12T ,14T,16T,18T etc.
Slack adjuster: manual and automatic slack adjuster

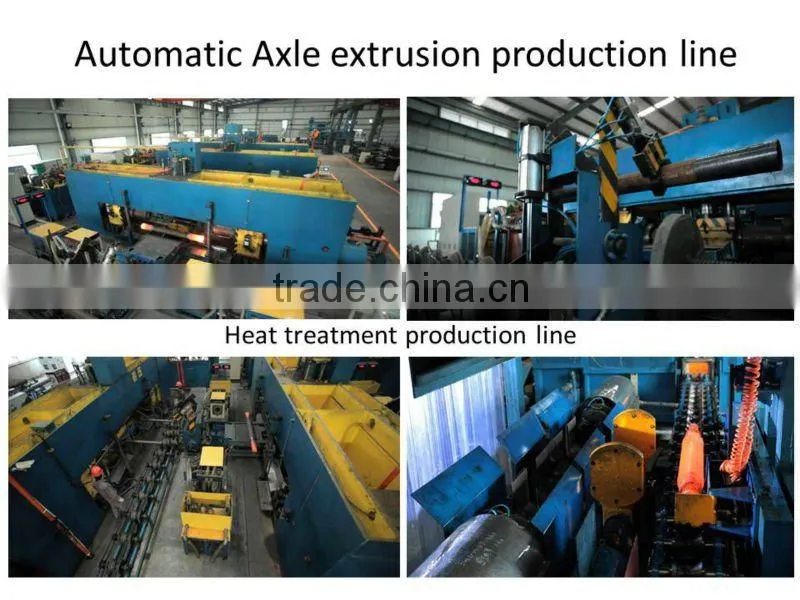

Production line:
- All the equipments of Germany type axle production line adopt digital technique.
- The axle assembly line adopt automatic painting line and assembly line.One axle assembly can be finished in 90 seconds
- Automatic founding production line have PLC automatic device and mechanized production line, producing drum, hub and so on.
- Pressing production line have 25T to 800T pressing equipment, controlled speed device, integrated unit automatic gas-welding machine and automatic electrophoretic flow line, producing dust covers, brake shoes, suspensions and so on.
- Quality Control: spectral analysis, Omnipotence expander machine, Omnipotence expander machine, Fatigue test machinery, Salt spray test machine, Metallurgical analysis, Rigidity Analysis etc.
Advantages of HJ axle:
- HJ Germany Bpw axle spindle, made of alloy material, is processed by digital control lathe. Bearing position is under intermediate frequency, wear-resisting.
- HJ Germany axle brake lining is non-asbestos, with long service life.
- Use famous brand grease, with high lubricating performance and efficiency.
- Famous brand bearing for axle, with good loading capacity, high rotating speed, good intensity,abrade resistant and heat resistant.
- Axle brake drum use HT250 material, high-temperature resistance, stable, good performance of tensile strength, shock absorption
- Axle wheel hub use QT450-10 material, high-temperature resistance, wearing-resistance, good bearing capacity
- Use double side single hole boring lathe and double side three hole boring lathe, which process the both side of axle body at the same time to insure the axle concentric.
- Axle hub bolt are made of alloy material, which has the capacity of high intensity, well stretch& bends intensity.
- HJ axle spare parts are processed by digital equipment, complied with the international standards, which can be exchanged with the original BPW spare parts.
- HJ axle designed according to international standards, ABS system is alternative, aslo can assemble ECO hub system
- Special design for customer
After-sales service:
--We guarantee that, under normal use,all defective axle can be repaired and changed for free(except easy wearing parts) .The guarantee period of axle tube is 3years.
--0ur company holds the notice all the time"frist -class goods,reasonable price.
Please contact with us or visite our website for more information on BPW type semi trailer bogie.
