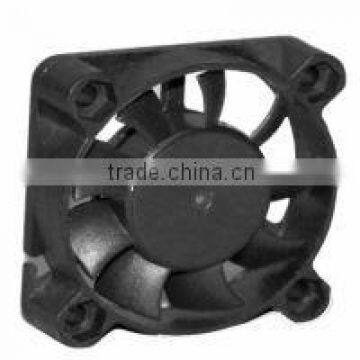

5v/12v/24v DC brushless cooling fan with PWM 40x40x10mm
USD $1 - $5
/ Piece
500 Pieces(Min.Order)
- 20000 Piece / Pieces per Month
- shenzhen
- T/T
You May Like
Product Details
| Electric Current Type: | DC | Mounting: | Other, cooling fan | Blade Material: | Plastic |
| Place of Origin: | Guangdong, China | Brand Name: | ODM/OEM | Model Number: | YM0504PFS(B)2 |
| Voltage: | 5V/12V/24V | Power: | 0.60w | Air Volume: | 6.33cfm |
| Speed: | 6000rpm | Certification: | CE, UL, ROHS, Other, UL, CE, CE, UL, ROHS, ISO9000, UL ,CE, RoHS, TUV |
Product Description
Specifications
we supply cooling fan1. motor protection
2. Ball or sleeve bearing
3. CE,RoHS,UL,TUV passed
4. low noise and long life
40*40*10mm dc cooling fan
General Specifications:
Frame | plastic(UL94v-0) |
Impeller | plastic(UL94v-0) |
Bearing type | Sleeve Bearing and Dual Ball Bearing |
Leadwire | UL1007AWG#26 or Equivalent (+):Red(-):Black |
Motor | Impedance Protected and Reverse Polarity Protected |
Voltage | 5V/12V/24V |
Certification | ISO9000, UL ,CE, RoHS, TUV |
Expected Life:
1.Ball Bearing 50,000 hours(40°c)
2.Sleeve Bearing 30,000 hours(40°c)
Allowable Ambient Temperature Range
1.-10°c~+70°c (Operating)
2.-40°c~+70°c (Storage)
3.(non-condensing environment)
Specifications:
| Size(mm) | Model | Rated voltage (v) | Operating Voltage Range(v) | Current amp (Amp) | Rated Input Power Watt | Speed (rpm) | Max air Flow(CFM) | Max Static Pressure (Inch-H2o) | Noise Leve (dB-A) | Weight (g) |
| 40 *40 X*10 | YM0504PFS(B)1 | 5 | 3.5 to 5.5 | 0.14 | 0.70 | 6500 | 6.80 | 0.12 | 35 | 16.00 |
| YM0504PFS(B)2 | 5 | 3.5 to 5.5 | 0.12 | 0.60 | 6000 | 6.33 | 0.11 | 30 | 16.00 | |
| YM0504PFS(B)3 | 5 | 3.5 to 5.5 | 0.09 | 0.45 | 5500 | 5.72 | 0.10 | 25 | 16.00 | |
| YM1204PFS(B)1 | 12 | 7.0 to 13.8 | 0.07 | 0.84 | 6500 | 6.80 | 0.12 | 35 | 16.00 | |
| YM1204PFS(B)2 | 12 | 7.0 to 13.8 | 0.06 | 0.72 | 6000 | 6.33 | 0.11 | 30 | 16.00 | |
| YM1204PFS(B)3 | 12 | 7.0 to 13.8 | 0.05 | 0.60 | 5500 | 5.72 | 0.10 | 25 | 16.00 | |
| YM2404PFS(B)1 | 24 | 14.0to27.6 | 0.05 | 1.20 | 6500 | 6.80 | 0.12 | 35 | 16.00 | |
| YM2404PFS(B)2 | 24 | 14.0to27.6 | 0.04 | 0.96 | 6000 | 6.33 | 0.11 | 30 | 16.00 | |
| YM2404PFS(B)3 | 24 | 14.0to27.6 | 0.03 | 0.72 | 5500 | 5.72 | 0.10 | 25 | 16.00 |
