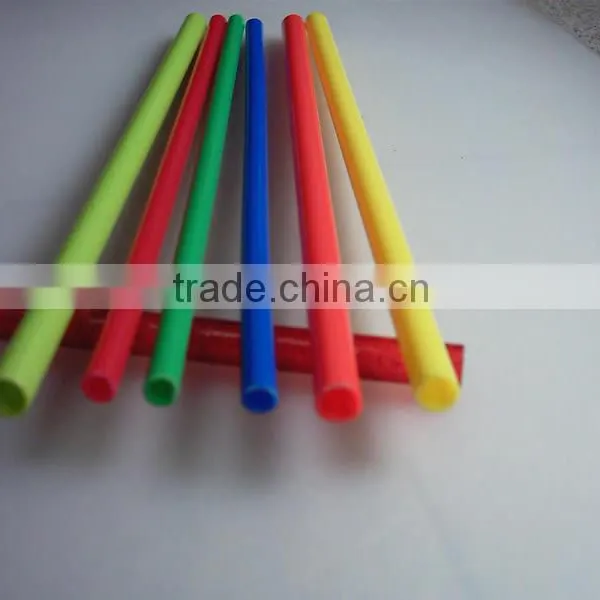

Polyurethane Sleeve
1)Made of CPU, can be machined by CNC lathe
2)Special Formulations
3)Replace Austrian product
4)ISO9001
Casting Polyurethane Sleeve For Flexible Seal Production
General
MF-MPT-95 is a hydrolysis resistant PU Sleeve with a hardness of 95 +/-2 Shore A with very good physical properties. The resistance to most common hydraulic fluids and oil-water emulsions makes it a very universal material for seal applications.
Chemical resistance
Resistant to Sea Water, HFA, HFB fluids, mineral oils, vegetable oils, silicone oils, biodegradable oils, ozone, cold oxygen
Main application
Static and dynamic seals (standard and special), wipers, O-rings, back-up rings, flange seals, rotary seals, low friction and wear, high extrusion resistance, compatibility with water, excellent low temp characteristics.
Analysis and Evaluation
The properties relate to fundamental values for polyurethane products. Values mentioned above are corresponding to GB/T (stricter) or DIN standards and have been tested on standardized plates in the laboratory. All immersion tests are made under laboratory conditions.
| Specification of polyurethane drum | |||
| Name | Size(OD*ID*L) | Hardness | Color |
| PU tube | 33*150 | 95+/-2 | Red/Green |
| PU tube | 38*13*150 | 95+/-2 | Red/Green |
| PU tube | 48*22*150 | 95+/-2 | Red/Green |
| PU tube | 58*27*150 | 95+/-2 | Red/Green |
| PU tube | 65*35*150 | 95+/-2 | Green |
| PU tube | 70*40*150 | 95+/-2 | Green |
| PU tube | 68*37*150 | 95+/-2 | Red/Green |
| PU tube | 78*47*150 | 95+/-2 | Red/Green |
| Polyurethane tube | 80*50*150 | 95+/-2 | Green |
| Polyurethane tube | 88*52*150 | 95+/-2 | Red/Green |
| Polyurethane tube | 90*60*150 | 95+/-2 | Green |
| Polyurethane tube | 98*62*150 | 95+/-2 | Red/Green |
| Polyurethane tube | 105*75*150 | 95+/-2 | Green |
| Polyurethane tube | 108*67*150 | 95+/-2 | Red/Green |
| Polyurethane tube | 110*80*150 | 95+/-2 | Green |
| PU drum | 118*77*150 | 95+/-2 | Red/Green |
| PU drum | 122*95*150 | 95+/-2 | Red/Green |
| PU drum | 128*87*150 | 95+/-2 | Green |
| PU drum | 130*75*150 | 95+/-2 | Red |
| PU drum | 130*95*150 | 95+/-2 | Green |
| PU drum | 133*97*150 | 95+/-2 | Green |
| PU drum | 143*107*150 | 95+/-2 | Green |
| PU drum | 150*125*150 | 95+/-2 | Green |
| PU drum | 153*117*150 | 95+/-2 | Green |
| PU drum | 163*127*150 | 95+/-2 | Green |
| PU drum | 170*132*150 | 95+/-2 | Green |
| PU drum | 173*132*150 | 95+/-2 | Green |
| PU drum | 188*142*150 | 95+/-2 | Green |
| PU drum | 198*152*150 | 95+/-2 | Green |
| PU drum | 208*180*150 | 95+/-2 | Green |
| PU drum | 240*200*150 | 95+/-2 | Green |
| PU drum | 250*215*150 | 95+/-2 | Green |
| PU drum | 320*280*150 | 95+/-2 | Green |
| PU drum | 330*290*150 | 95+/-2 | Green |
| PU drum | 340*305*150 | 95+/-2 | Green |
| *Other sizes&colors are also available under customers' request | |||
| * Custom polyurethane drum is available 30 days after your requirements or drawings | |||
| Packaging Detail: | Be well packed with transparency bag and cartons, or according to customers' request |
| Delivery Detail: | Within 30days after receive the deposit |
• Competitive price with stable quality
• Better control on holding the part cost if raw material price increased
why choose us?
1.the customer as the center
2. hours service
3. sponsibility to human
4.ng-term service
5. gh efficiency

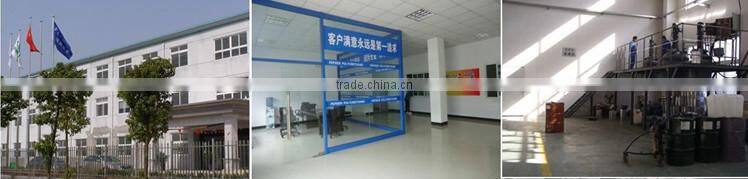

Our company was established in 2004, located in north China region rubber products base--XingTai ,is a company specializing in the production of auto parts.
We have been to create our own enterprise culture:
Proactive, continuous innovation all the time,
adhere to provide superior quality, abide by the good business enterprise principle of management .
Looking forward to cooperate with you!
Please feel free to contact me:
TEl:+86-0319-5231517
....
