Chinese Professional HASL LED PCB for 10 years

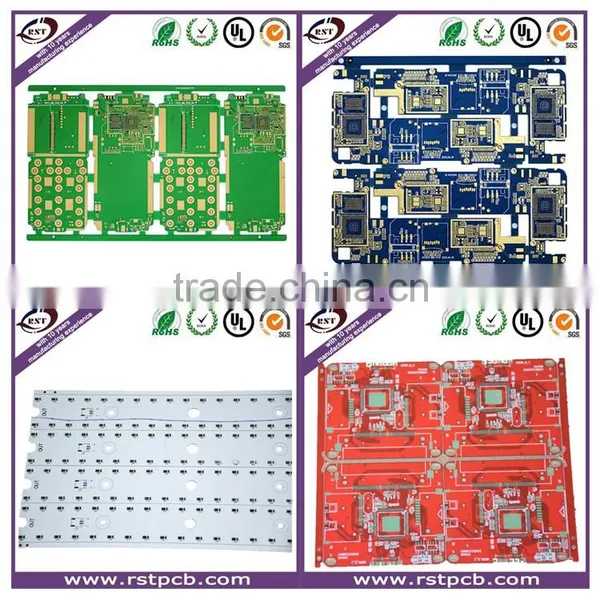

RST is an expert at PCB and PCBA manufacturer based in JiangXi and ShenZhen of China. We are specialized in manufacturing Single-sided PCB, Double-sided PCB, HDI and multilayer PCB. It is honored the excellent supplier by many large companies both at home and abroad. We can offer all kinds of service including PCB and PCB assembly sample order and batch order , what we produced are highly appreciated by ShenZhen High Tech Item Program.

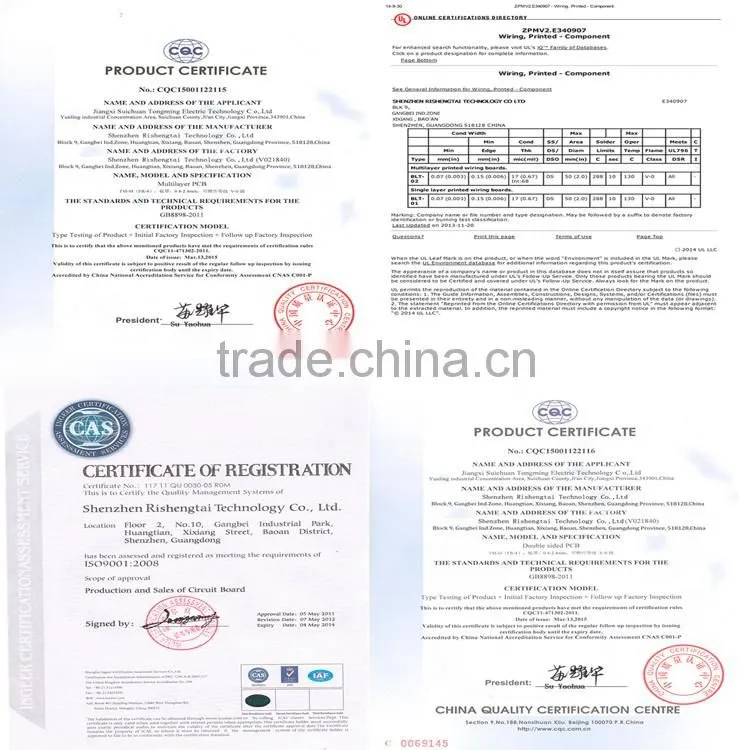

We have got the ISO9001 ISO14001 TS16949 ISO13485 and the UL(E332411) approval. Our PCB capacity reaches 6,000 to 8,000 square meters every month.

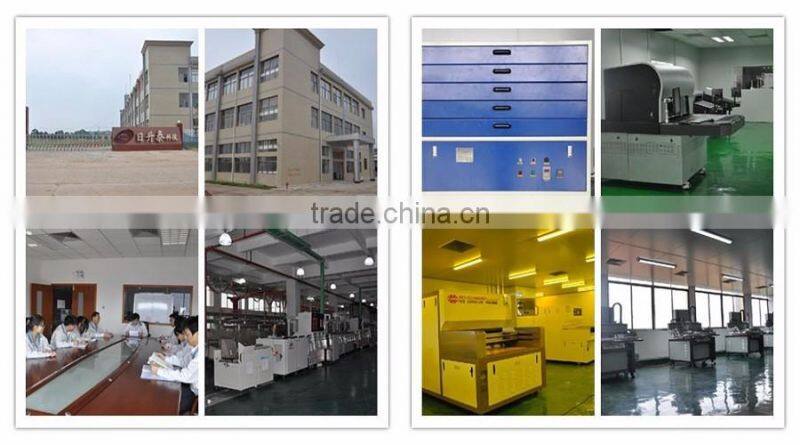

We have imported the advanced facilities from oversea to improve our production and technical ability.
We have set a great example in the PCB field of flying probe testing, buried and blind via and special controlled impedance With the continuous effort of the R&D, we have successfully established our reputation in mechanical micro via, high density impedance and HDI.
| Item | Serial | Technical Data | Item | Serial | Technical Data |
| 1 | Layers | 2-20 layers | 15 | Aspect ratio | 10:1 |
| 2 | Base Material | FR4, CEM-1, Aluminium, High Tg Material, High Frequence Rogers | 16 | Thermal Shock | 3x10Sec@288℃ |
| 3 | Max Board Size | 18" x 24" | 17 | Warp and Twist | <0.7% |
| 4 | Min Board Thickness | 4layers:0.4mm, 6layers:0.8mm, 8layers:1.0mm , 10layers:1.2mm | 18 | Electric Strength | >1.3KV/mm |
5 |
Min Line Width | 0.1mm | 19 | Peel Strength | 1.4N/mm |
| 6 | Min Line Space | 0.1mm | 20 | Solder Mask Abrasion | >6H |
| 7 | Min Hole Size | 0.1mm | 21 | Flammability | 94V-0 |
| 8 | PTH Wall Thickness | 0.02mm | 22 | Impedance Control | ±5% |
| 9 | PTH dia tolerance | ±0.05mm | 23 | Surface Finishing | HASL (Tin-Lead Free), ENIG(Immersion Gold), Immersion Silver , Gold Plating (Flash Gold), OSP, etc. |
| 10 | NPTH hole dia tolerance | ±0.03mm | 24 | Solder Mask | Green, White, Red, Yellow, Black, Blue, transparent photosensitive soldermask |
| 11 | Hole Position Deviation | ±0.05mm | 25 | Color of silk-screen | White, Black, Yellow ect. |
| 12 | Outline Tolerance | ±0.1mm | 26 | E-Testing | 100% E-Testing (High Voltage Testing); Flying Probe Testing |
| 13 | S/M Pitch | 0.8mm | 27 | Thickness of Copper | 0.5-4oz |
| 14 | Insulation Resistance | 1E+12Ω(Normal) | 28 | MOQ | No |
Q1: How do you make sure the quality of the PCBs?
A1: Our PCBs are all 100% test including Flying Probe Test, E-test or AOI.
Q2: Can I get the best price?
A2: Yes. To help customers control cost is what we are always trying to do. And our new factory in JiangXi is set up to reduce costs.
Q3: What is the lead time?
A3: Sample needs 2-4 working days, mass production needs 7-10 working days. It depends on the files and quantity.
Q4: Do you keep our information and files secret?
A4: Keeping secret for customers is the basic principle of our factory. We can sign with the NDA with you.
Q5: What files should we offer?
A5: If only need PCBs, the Gerber files are needed; If need PCBA, both Gerber files and BOM are needed.
Q6: Can we visit your company?
A6: No problem. You are welcome to visit us in Shenzhen. And the other factory is in JiangXi province.
Q7: Can I get a sample?
A7: Yes, It's reasonable to get a sample to test our quality at first. But you have pay for the samples, and we will return half of the cost when the order is more than 20 sqm.
Q8: Do you have any MOQ?
A8: Yes, our MOQ is USD150.00 for each PCB.
