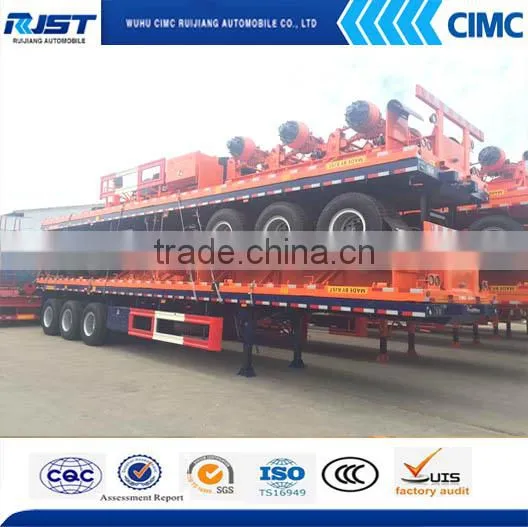

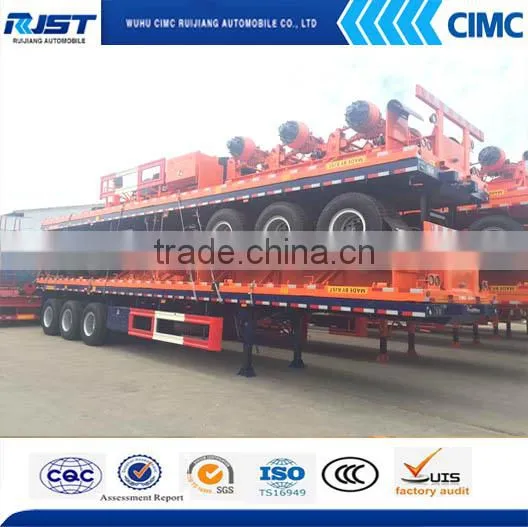

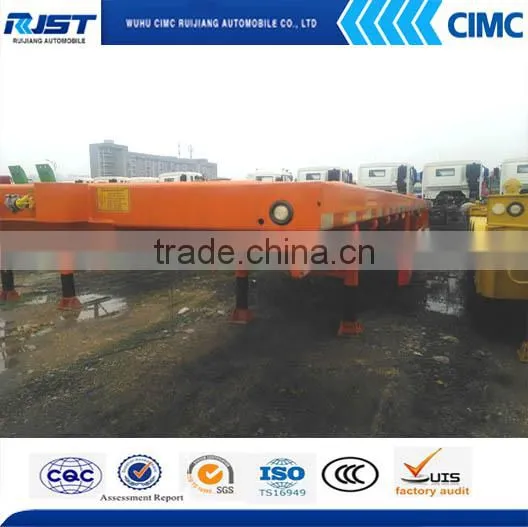

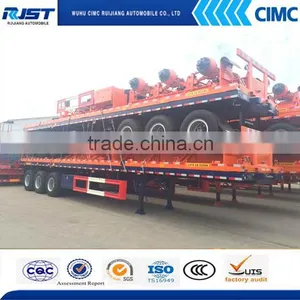

Hot sale CIMC Brand Three Axle Flat-Bed Trailer For Sale

CIMC Brand Three Axle Flat-Bed Trailer For Sale

Model: WL9400TJZ

Dimensions
Overall length 12391mm
Overall width 2480mm
Overall height 1500mm
Dimensions mentioned here are approximations.
Capacity
Loading capacity: 40ton

Running gear
FUWA high quality Trailer Axle 13Ton, Three Units;
Tires: 11.00R20 12 PCS,
Wheel Rim: 8.0*20 12 PCS;
Twist lock: 12 sets, for delivery 1*40', 2*20', 1*20' ISO Standard container
Longitudinal beams: Top flange 14mm, bottom: 16mm, middle thickness: 6mm
Platform: 3mm thickness checked steel floor
Kingpin 23" bolted type.
28T landing legs.

Accessories
Spare tire carrier: 2 Nos.
Tool box: 1 PC.
Other terms are in accordance with the Standards of CIMC Ruijiang.


Painting
Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals; Steel blasting completely;
Painting color is according to customer's wish.
Package
Shipped by containers in SKD model, two units in one 40HQ container, the end of the trailer should be cut and you need assemble at the destination or shipped by bulk vessel with whole unit. )
