Painting
Before the painting, surfaces and accessories are made smooth and then cleaned with a mixture of chemicals;
Steel blasting completely;
Painting color is according to customer’s wish.
Shipped by containers in SKD model, two units in one 40HQ container, you only need to do a little assembly work at the destination to complete the vehicles or shipped by bulk vessel with whole unit.

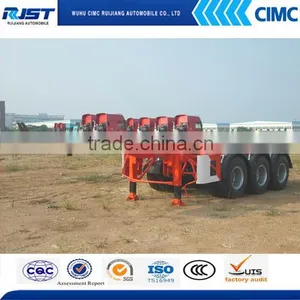

| CIMC Container Chassis, 40FT Skeleton Semi Trailer | ||
| METER | Dimension(mm) | L*W*H: 12391*2480*1600mm (MM) |
| King pin setting(mm) | 780mm | |
| Fifth wheel height (mm) | 1203mm | |
| Axle space(mm) | 7160mm+1310mm+131mm |
|
| Tare weight(kg) | 5400KGS | |
| Payload (kg) | 34600KGS | |
| G.V.W.R. | 40000KGS | |
| OEM | Axle | FUWA square axle, 13 ton capacity/set |
| Tire | 11.00R20-18PR, 12units | |
| Rim | 8.0V-20,12units | |
| Lock | 12 sets, for delivery 1*40’, 2*20’, 1*20’ ISO Standard container | |
| Landing gear | JOST D200 | |
| Main beam | 500/14/6/16 | |
| Kingpin | 2” Bolted type,JOST | |
| Brake system | 30/30 type on each axle | |
| ABS | No | |
| Suspension | mechanical suspension | |
| ACCESSORIES | Tool box | 1 |
| Spare tire carrier | 2 | |
| Paint | Painting color is according to customer’s wish | |
1. Why you choose us?
CIMC RUIJIANG is a special vehicle manufacturer that belongs to CIMC group .We have more than 10 years produce experience.And our company produces at least 300 varieties of special vehicles of more than 10 series.
2. How to trust us?
Following the business philosophy of our company which is“your partner for modern transportation”,the sales network of CIMC RUIJIANG has been covering China mainland and global markets including Asia, Africa, South America, East Europe, etc. and welcome visits our company at any time.
3. How about the delivery time?
Most of our trucks are all have in stock ,We can delivery to you within 7 days, if specially ordered , we always need around 30 days for production.
4.How do you ensure the quality of product?
Our Factory is standard production workship,got ISO CCC BV Certification,our workers are well trained. Our very product under goes a scrutinizing inspection process.
