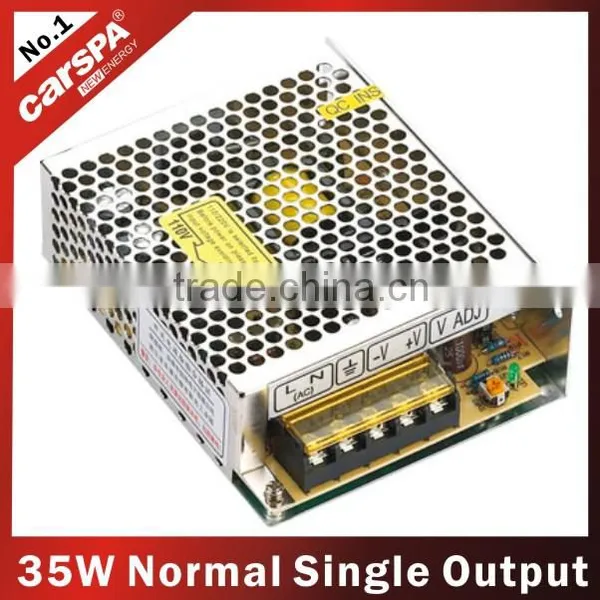

S series single output switching power supply 35W

Model

S-35-5

S-35-12

S-35-15

S-35-24

 Output

 DC voltage

5V

12V

15V

24V

 Voltage tolerance

±2%

±1%

±1%

±1%

 Rated current

7A

3A

2.4A

1.5A

 Current range

0~7A

0~3A

0~2.4A

0~1.5A

 Rated power

35W

36W

36W

36W

 Ripple&noise

100mvp-p

120mvp-p

120mvp-p

120mvp-p

 DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

 Input

 Voltage range

90~132VAC/180~264VAC(selected by switch), 255~373VDC

 Frequency

47~63Hz

 AC current

0.8A/115VAC, 0.45A/230VAC

 Efficiency

72%

76%

76%

78%

 Inrush current

cold start current 18A/115VAC, 36A/230VAC

 Leakage current

< 3.5mA/240VAC

 Protection

 Overload

above 115%~150% rated power

protection type: part layer type current limit, auto-recovery after fault condition is removed

 Environment

working temp,humidity

-10°C~+60°C, 20%~90%RH

Storagetemp,humidity

-20°C~+85°C, 10%~95%RH non-condensing

Withstand vibration

10~500Hz, 2G 10min/1cycle, period for 60 minutes, each axes

Safety

 Withstand voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

 Isolated resistance

I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC

Fitstandard

 Safety standard

Fit UL1012

 EMC standard

meet EN55022, CLASS A

Others

 Dimension

129*98*38mm (L*W*H)

 Weight/packing

0.4kg/45pcs/19kg/0.034m³/1.2CUFT

Note

 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
