Specifications
AC input voltage range selected by switch100% full load burn-in test

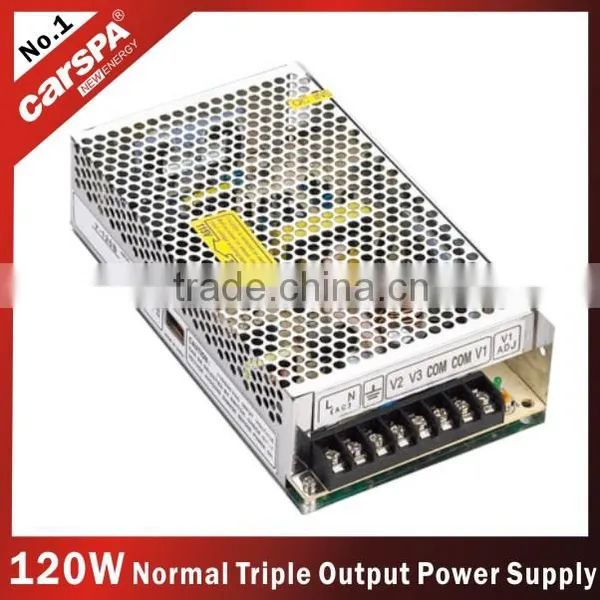

Triple output switching power supply 120W (T-120W)
Why Choose Us?
1. Professional Manufacturer---10years experience
2. High Quality Products----Hot selling in European Market
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.
Features:
·AC input voltage range selected by switch
·Small volume, low weight, high efficiency
·Protections: short circuit/over load
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
Specifications:
| 120W T series Triple Output Switching Power Supply | ||||||
| Model | T-120A | T-120B | ||||
| DC output | 5V,2-11A | 12V,0.5-5A | -5V,0.2-1A | 5V,2-11A | 12V,0.5-4.5A | -12V,0.2-1A |
| Output voltage error | ±2% | ±6% | ±6% | ±2% | ±6% | ±6% |
| Output voltage range | 80mV | 120mV | 80mV | 80mV | 120mV | 120mV |
| Efficiency | 77% | 77% | ||||
| Input voltage range | 90-132VAC/180-264VAC 47-63HZ; 255-373VDC | |||||
| Over load protection | 110-150% cut off the output,restart | |||||
| Over voltage protection | 115-135% cut off the output,restart | |||||
| Withstand voltage | I/P-O/P: 1.5KVA 1minutes | |||||
| I/P-F/G: 1.5KVA 1minutes | ||||||
| O/P-F/G: 0.5KVA 1minutes | ||||||
| Working environment | -10°C - +60°C, 20%-90% RH | |||||
| Dimension | 199 x 110 x 50mm | |||||
| Weight/packing | 0.85Kg, 24pcs/Carton/21.5Kg | |||||
