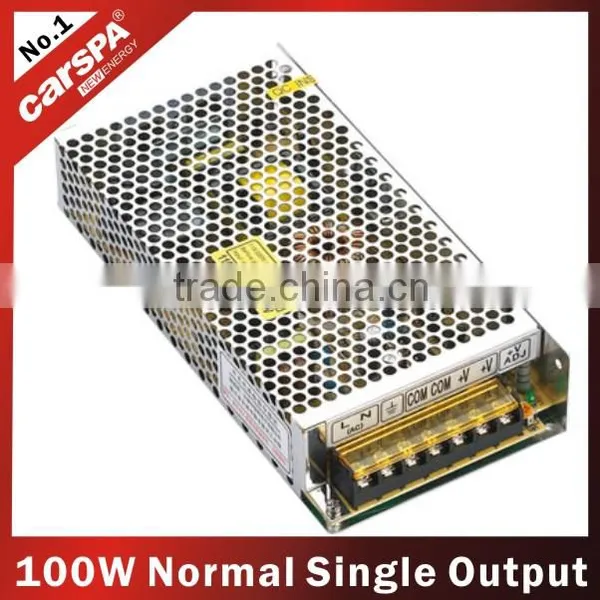

S Series Single Output Switching Power Supply 100W

S Series Single Output Switching Power Supply 100W thumbnail-1
S Series Single Output Switching Power Supply 100W photo-1
Negotiable MOQ: 400 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CARSPA
Model Number:
S-100W
Contact Supplier Request Quote Chat Now
Zhejiang Carspa New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name CARSPA
Model Number S-100W
Output Power 51 - 100W
Output Type Single
Input Voltage Other
Output Voltage 12V, 15V, 24V
Output Frequency 47~63Hz
Output Current 0~8.33A

Specifications

AC input voltage range selected by switch,
1 Year warranty

Normal single switching power supply S-100W

Features:

·AC input voltage range selected by switch

·Small volume, low weight, high efficiency

·Protections: short circuit/over load

·Cooling by free air convection

·LED indicator for power on

·100% full load burn-in test

·2 Year warranty



S-100W
Model S-100-5 S-100-12 S-100-15 S-100-24 S-100-36 S-100-48
Output DC voltage 5V 12V 15V 24V 36V 48V
Voltage tolerance ±2% ±1% ±1% ±1% ±1% ±1%
Rated current 20A 8.5A 6.7A 4.5A 2.8A 2A
Current range 0~20A 0~8.5A 0~6.7A 0~4.5A 0~2.8A 0~2A
Rated power 100W 102W 100.5W 108W 100.8W 96W
Ripple&noise 100mvp-p 120mvp-p 120mvp-p 150mvp-p 150mvp-p 150mvp-p
DCvoltage ADJ.range -9%~+10% ±10% ±10% ±10% ±10% ±10%
Input Voltage range 90~132VAC/180~264VAC(selected by switch), 255~373VDC
Frequency 47~63Hz
AC current 2.4A/115VAC,1.2A/230VAC
Efficiency 78% 80% 80% 82% 82% 83%
Inrush current cold start current 18A/115VAC, 36A/230VAC
Leakage current < 3.5mA/240VAC
Protection Overload above 115%~150% rated power
protection type: cutoff output, recovery after restart power
Environment working temp,humidity -10°C~+60°C, 20%~90%RH
storagetemp,humidity -20°C~+85°C, 10%~95%RH non-condensing
withstand vibration 10~500Hz,2G 10min/1cycle, period for 60 minutes, each axes
Safety withstand voltage I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC
Fitstandard Safety standard Fit UL1012
EMC standard meet EN55022, CLASS A
Others Dimension 199*98*38mm (L*W*H)
Weight/packing 0.6kg/30pcs/19kg/0.034 m³/1.2CUFT
Note 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
