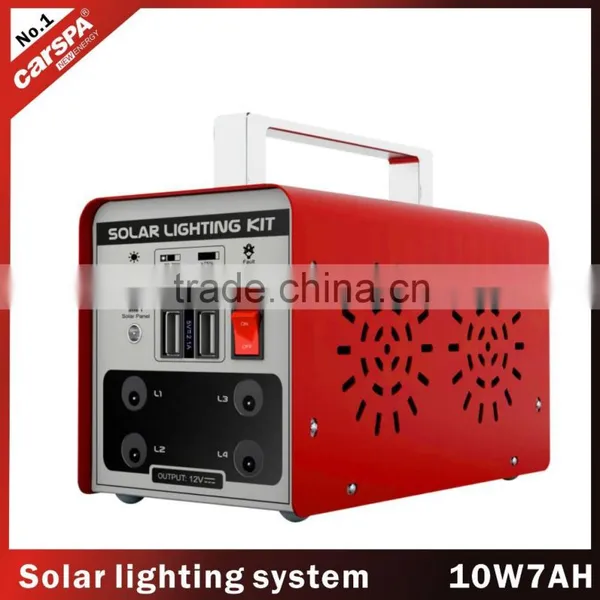

10W/7Ah Solar Lighting System, 12V solar power system

Name: 10W/7Ah Solar Lighting System, 12V solar power system
Brand: CARPSA
Price: Negotiable

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port Shanghai/Ningbo solar lighting system
Payment Terms:T/T D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	CARPSA	Model Number:	SL1007
Specification:	Mini	Application:	Home	Output Voltage (V):	12v
Load Power (W):	12w	Solar Power (W):	10w	Work Time (h):	0.8H

Product Description

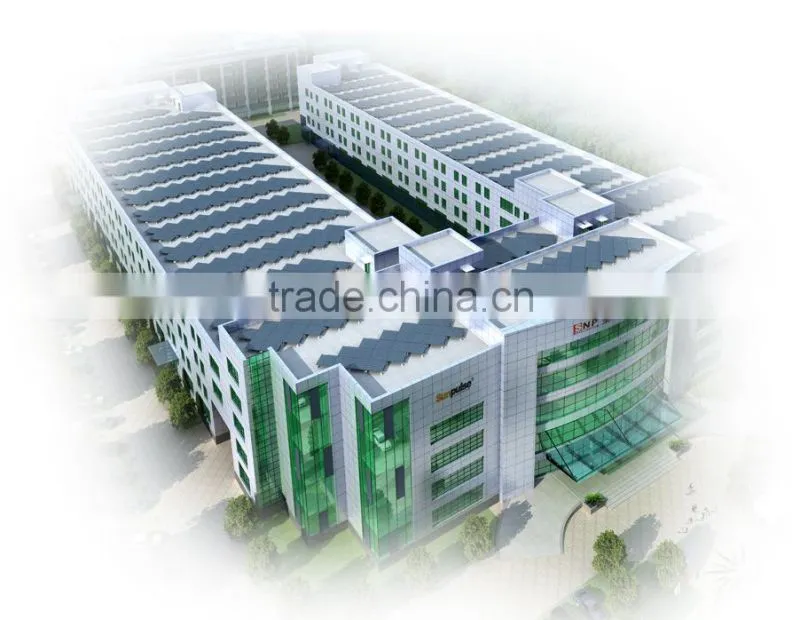

Company Information

Established in 2004, Carspa Company located in Wenzhou,the largest manufa- cturing base of low voltage electric equi-

pment in China.

With the powerful technology support and advanced pro- duction and inspec-

tion devices, Carspa products have exported to may regions and many countries.

Product Description

Product Features:

Protection Function:

Specifications:

Packaging & Shipping

10W/7Ah solar lighting system, 12v solar power system

Application:

multi-functional. Used in where is lack-in power. Offer you best solution for electricity crisis. During the electricity power shortages, go anywhere portable solar power system is extremely useful! Solar systems can be used for electricity to power phones, lamps and fan etc. it can be used in rural home electrification, remote cabins, tool sheds and barns and emergency power.

Features:

No pollution, green energy.

With a handle, easy to install and use.

Save energy and electricity consumption

For rural area, camping, remote cabins, emergency power.

Environment friendly, lower-cost.

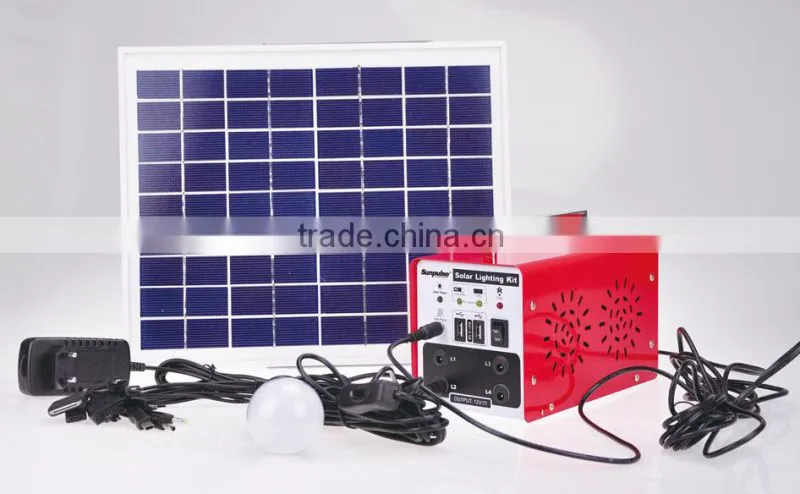

Configuration:

Solar panel: monocrystalline 10W 18v, with 5 noodle.

Integrated power box: built-in maintenance free lead acid battery 12V7Ah.

PWM controller, LED indicators indicates the solar power, battery status, and failure condition.

Two USB of output to the mobile phone charging.

4pcs DC output port for 4pcs 3W 12V LED lighting, DC fan, DC TV power supply, DC video etc.

LED lighting: 3W12V, with 5meters and line switch.

Details:

Model		SL1007
System voltage		12V
Solar light kit	Max. solar charge controller	5A
	Rated discharge current	5A
	Open circuit loss	<5mA
	Over voltage protection	17V
	Lift charge voltage	14.6V
	Lower voltage protection	11.8V
	Over discharge voltage	11V
	Double USB port	5V2.1A
	LED indicators	Fault, battery capacity, solar power
	Solar /AC input port
	Temperature compensation	-4.0mv/0°C/2V
	DC12V output plug	2pcs or 4pcs
	Charge control mode	PWM control
	Protection circuit	Over charge, over discharge, overload, short circuit, solar panel and battery reverse polarity
Solar panel	18V with 6m cable	10W
Storage battery	12V lead acid battery	7Ah
AC charging adaptor	Input 100-240V, 14.5V2A	Optional
USB charger adaptor	10 different connectors	Optional
Lighting source	LED 3W	2pcs or 3pcs or 4pcs
Lighting cable	5M	2pcs or 3pcs or 4pcs
Operating temperature	-35~65°C
Unit size	190107.2118mm

We can customize your personal system as your request.

If you are interested in it, please feel free to contact us to get more information. Thanks in advance.

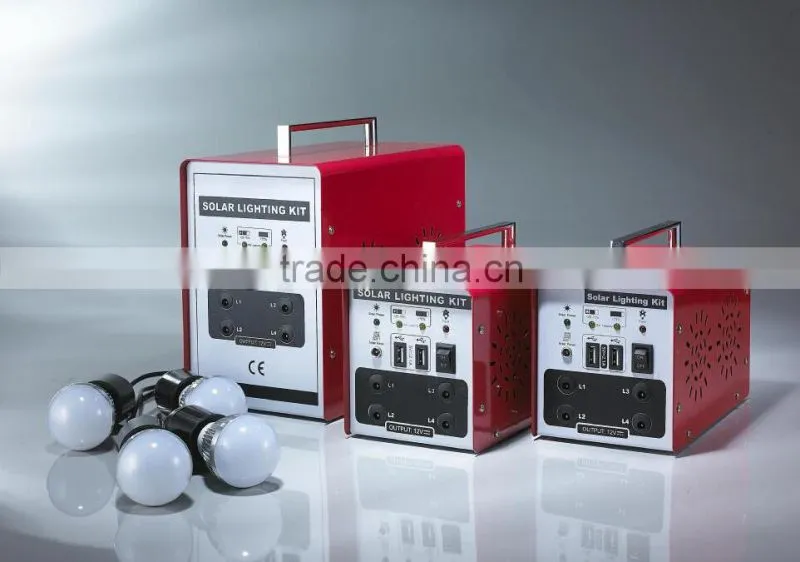

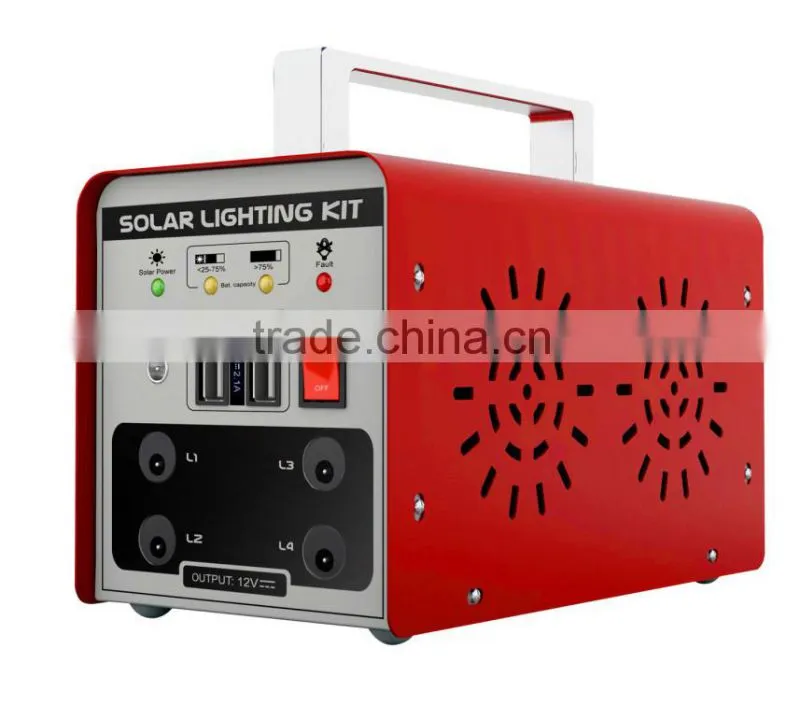

Product show:

Certificate:

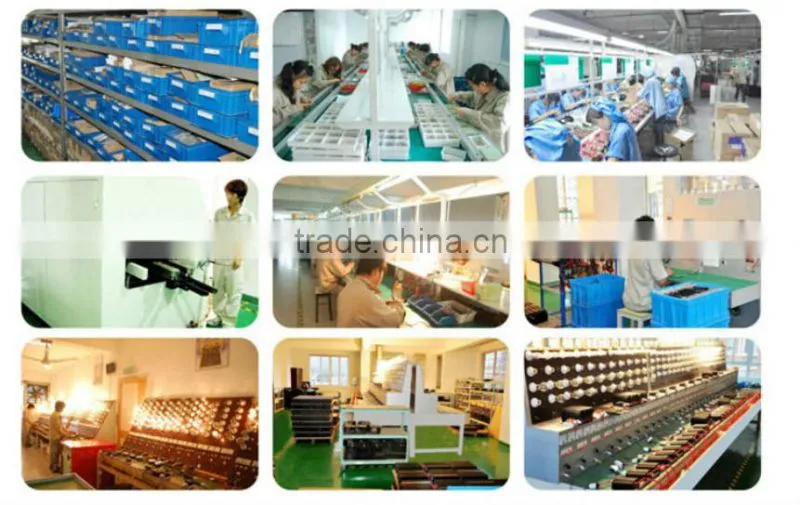

Production line:

Exhibition picture:
