SL7-N Series Non Polarity dc Circuit Breaker for pv Solar System 2P DC550V 16A
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CARSPA
Model Number:
SL7-N-2P-550V 16A
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
9000BTU 100% Solar Air Conditioner System for Homes 48v dc Inverter Air ConditionerUS$ 1,000 - 1,200MOQ: 1 Piece -
12000BTU 100% Solar Air Conditioner System for Homes OfficesUS$ 100 - 300MOQ: 1 Piece
-
18000BTU Wall Split Type DC Inverter Solar Air ConditionerUS$ 1,000 - 1,200MOQ: 1 Piece
-
the New Product Competitive Price Hot Sale Number One 24000BTU Solar Air Conditioner PriceUS$ 1,000 - 1,200MOQ: 1 Piece
-
10W/7Ah Solar Lighting System, 12V Solar Power SystemNegotiableMOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
CARSPA
Model Number
SL7-N-2P-550V 16A
Type
High Voltage
Poles Number
1
Specifications
SL7-N Series non polarity dc circuit breaker for pv solar system 2P DC550V 16ASL7-N Series non polarity dc circuit breaker for pv solar system 2P DC550V 16A
SL7 series PV Non polarity DC circuit breaker supplementary protectors are designed to provide over current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not require. Devices are designed for direct current (DC) control circuit applications.
Specifications:
| SL7 series NP PV DC circuit breaker | ||||||||
| Model | SL7- 63 | |||||||
| Frame degree rated current(A) | 63 | |||||||
| Electrical performance | ||||||||
| Poles | 1P | 2P | 3P | 4P | ||||
| Rated operating voltage( VDC) | 250 | 550 | 800 | 750 | 1000 | 1200 | ||
| Rated current ( A) | 6-10-16-20-25-32-40-50-63 | |||||||
| Rated insulation voltage( VDC) | 1200 | |||||||
| Rated impact voltage (k V) | 4 | |||||||
| Ultimate breaking capacity ( k A) | 6 | |||||||
| Run breaking capacity | 75% | |||||||
| Curve type | C | |||||||
| Trip type | thermail- magnetic | |||||||
| Mechanical | Actual averae value | 20000 | ||||||
| Standard value | 8500 | |||||||
| Electric | Actual averae value | 2500 | ||||||
| Standard value | 1500 | |||||||
| Accessories | ||||||||
| Shunt release | Optional | |||||||
| Under voltage release | ||||||||
| Auxilary contactor | ||||||||
| Alarm contactor | ||||||||
| Connection and installation | ||||||||
| Wiring capacity (mm^2) | 6~32A: 1~25mm^2; 40~63A: 10~35mm^2 | |||||||
| Ambient temparature(°C) | 20 ~ 70°C | |||||||
| Altitude | ≤2000 | |||||||
| Relative humidity | ≤95% | |||||||
| Pollution level | 3 | |||||||
| Installation environment | No obvious shock and vibration | |||||||
| Installation category | Class III | |||||||
| Installation | DIN standard rail | |||||||

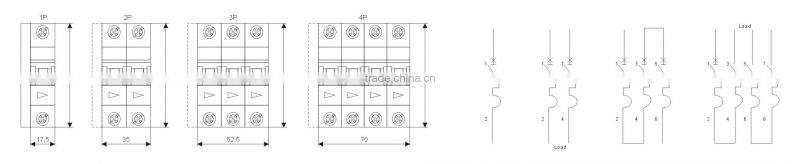

| Dimensions(mm) | W | 17.5 | 35 | 52.5 | 70 | |||
| H | 80 | 80 | 80 | 80 | ||||
| Deep | 71 | 71 | 71 | 71 | ||||
| Weight(kg) | 0.12 | 0.24 | 0.36 | 0.48 | ||||
