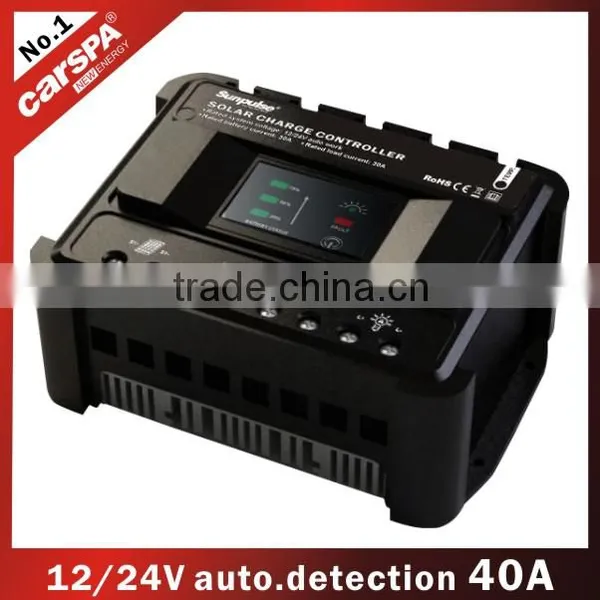

Pwm 40amp Solar Battery Charger With LED Indicators With New Design With Load - ENS12/24-40D
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sunpulse/OEM
Model Number:
ENS12/24-40
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12v 24v 48v Solar Charge Controller Charged for the Battery 30A With Led Indicators Pwm ENS12/24-30DNegotiableMOQ: 5000 Pieces -
Pwm Solar Charge Controller 60A for off Gird Solar System With Lcd Display 12/24v Automatic Detective -ENS12/24-60DNegotiableMOQ: 500 Pieces
-
Pwm Pulse Width Modulation 50A Solar Charger Controller With Ldc Display With High Quality ENS12/24-50DNegotiableMOQ: 500 Pieces
-
12 /24 Volt Automatic Detective 40 Amp Solar Charger Controller With Lcd Display for Small Solar System ENS12/24-40DNegotiableMOQ: 500 Pieces
-
Pwm Solar Charge Controller 12/24v 30a for Home Solar System With Lcd Display With High Quality With New Design ENS12/24-30DNegotiableMOQ: 500 Pieces
Place of Origin
Zhejiang, China
Brand Name
Sunpulse/OEM
Model Number
ENS12/24-40
Application
Solar System Controller
Rated Voltage
Other, 12V/24V
Maximum Current
40A
pwm 40amp solar battery charger with LED indicators with new design with load - ENS12/24-40D
Specifications
System Voltage: 12/24V auto.detection
Max.charge current: 40A
Pulse Width Modulation
LED indicators
Introduction:
CARSPA company 's newest PWM solar charge controller, it is a state-of-the art device which was developed according to the latest available technical standards.
Main Features and Functions:
·Pulse Width Modulation Technology, which offers the good efficiency of your PV system.
·Automatically detects 12/24V system voltage.
·LED indicators to indicate the different charge battery capacity, on/off, and fault status
·Temperature-compensated, three-stage I-U curve charge regulation ·Full electronic protection (reverse polarity, over-current, short-circuit, over temperature, current drawback, lightning etc.)
·Highest efficiency
·Positive grounding
·Dual terminals for solar panel input
·Battery type can be: GEL, AGM and solar battery etc.
Specifications:
Model |
ENS12/24-20 |
ENS12/24-30 |
ENS12/24-40 |
ENS12/24-50 |
ENS12/24-60 |
Normal voltage |
12/24V, automatic recognition |
||||
Nominal battery charge current |
20A |
30A |
40A |
50A |
60A |
Max. PV input power |
300W@12V
600W@24V
|
450W@12V
900W@24V
|
600W@12V
1200W@24V
|
750W@12V
1500W@24V
|
900W@12V
1800W@24V
|
lar input voltage Voc |
>30V/48V |
||||
lar input voltage Vmp |
>16V/32V |
||||
Power conversion efficiency |
Max. 90% |
||||
Standby power consumption |
<15mA |
<15mA |
<20mA |
<20mA |
<20mA |
Length≤1m charge loop drop |
<0.25V
|
||||
Length≤1m discharge loop drop |
<0.05V
|
||||
Temperature compensation |
-3 mv/cell *K |
||||
Dimensions |
172*126.3*73mm(L*W*H) |
||||
Weight |
0.35kg |
0.36kg |
0.38kg |
0.4kg |
0.4kg |
Ambient temperature range |
-40 to +50°C |
||||
Case protection |
IP22 |
||||
Float charge |
13.8V/27.6V |
||||
Constant voltage charge |
14.6V( 14~15V settable )29.2V (28~30V settable) |
||||
Low disconnect voltage |
11V( 10.4~11.4V settable)/ 22V( 20.8~22.8V settable) |
||||
Low reconnect voltage |
12.8V( 12.2~13.2V settable)/ 25.6V( 24.4~26.4V settable) |
||||
Grounding |
Positive grounding |
||||
Battery type |
GEL,AGM, Solar battery etc. |
||||
