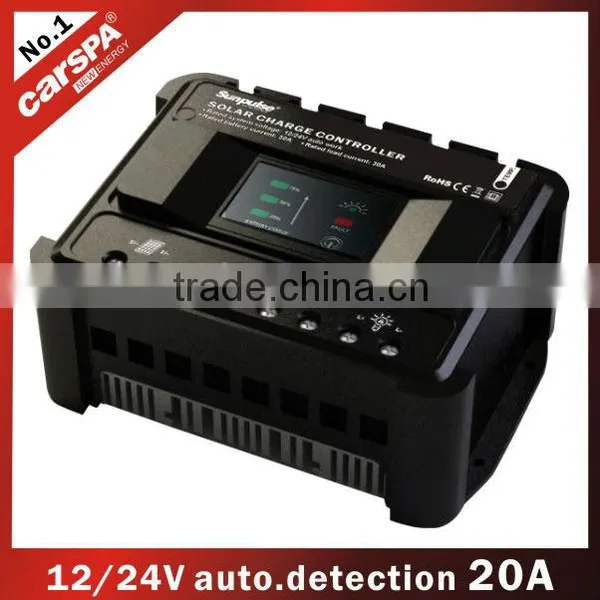

12/24V Auto. Detection Solar Charge Controller with LED Indicators
Introduction:
The newest designed PWM solar charge controller of CARSPA Company, it is a state-of-the art device which was developed according to the latest available technical standards.
Main Features and Functions:
1. Pulse Width Modulation Technology, which offers the good efficiency of your PV system.
2. Automatically detects 12/24V system voltage.
3. LED indicators to indicate the different charge battery capacity, on/off, and fault status
4. Highest efficiency
5. Positive grounding
6. Dual terminals for solar panel input
7. Battery type can be: GEL, AGM and solar battery etc.
Specifications:
Model |
ENS12/24-20 |
ENS12/24-30 |
ENS12/24-40 |
ENS12/24-50 |
ENS12/24-60 |
Normal Voltage |
12/24V, automatic recognition |
||||
Nominal Battery Charge Current |
20A |
30A |
40A |
50A |
60A |
Max. PV Input Power |
300W@12V |
450W@12V |
600W@12V |
750W@12V |
900W@12V |
Max. Solar Input Voltage Voc |
>30V/48V |
||||
Min. Solar Input Voltage Vmp |
>16V/32V |
||||
Power Conversion Efficiency |
Max. 90% |
||||
Standby Power Consumption |
<15mA |
<15mA |
<20mA |
<20mA |
<20mA |
Length≤1m Charge Loop Drop |
<0.25V |
||||
Length≤1m Discharge Loop Drop |
<0.05V |
||||
Temperature Compensation |
-3 mv/cell *K |
||||
Dimensions |
172*126.3*73mm(L*W*H) |
||||
Weight |
0.35kg |
0.36kg |
0.38kg |
0.4kg |
0.4kg |
Ambient Temperature Range |
-40 to +50ºC |
||||
Case Protection |
IP22 |
||||
Float Charge |
13.8V/27.6V |
||||
Constant Voltage Charge |
14.6V( 14~15V settable )29.2V (28~30V settable) |
||||
Low Disconnect Voltage |
11V( 10.4~11.4V settable)/ 22V( 20.8~22.8V settable) |
||||
Low Reconnect Voltage |
12.8V( 12.2~13.2V settable)/ 25.6V( 24.4~26.4V settable) |
||||
Grounding |
Positive grounding |
||||
Battery Type |
GEL, AGM, Solar battery etc. |
||||
