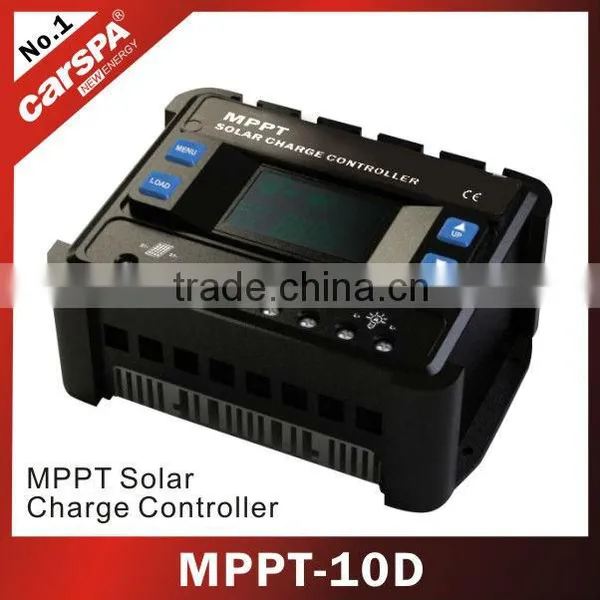

MPPT Series 10A Solar Controller (MPPT-10)
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
CARSPA
Model Number:
MPPT-10
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MPPT Series 70A Solar Controller (MPPT-70AD)NegotiableMOQ: 500 Pieces -
MPPT Series 20A Solar Controller (MPPT-20D)NegotiableMOQ: 500 Pieces
-
MPPT Series 60A Solar Controller (MPPT-60AD)NegotiableMOQ: 500 Pieces
-
MPPT Series 50A Solar ControllerNegotiableMOQ: 500 Pieces
-
MPPT Series 40A Solar Controller (MPPT-40A)NegotiableMOQ: 500 Pieces
Place of Origin
China
Brand Name
CARSPA
Model Number
MPPT-10
Application
Solar System Controller
Rated Voltage
12V
Maximum Current
10A
Specifications
intelligent solar charge controller, solar charge controller, PV controller, MPPTIntroduction:
MPPT-10A solar controller (also known as an intelligent solar charge controller, solar charge controller, PV controller) can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by 10%-30%. CARSPA- MPPT solar controllers 10A--60A include 12V series, 24V series and 48V series.
MPPT advantage:
Maximum Power Point Tracking (MPPT in short) system is a system which allows PV panels to outputs more Power by adjusting working condition of the electrical module. In Figure1 A indicates that the ordinary controller, which makes PV battery work on 12V ,only outputs a power point of 53W (a general power point), B indicates that MPPT controller makes PV battery always work at the maximum power point, thus outputs the power point of 75W (the maximum power point).
Product features:
Applicable to various types of batteries,
MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration)
Thunder protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection
MPPT principle:
The maximum power point is mainly affected by the ambient temperature and the intensity of sunshine. The intensity of sunshine being constant, the maximum output power decreases with the rise of the temperature. The temperature being constant, when the sunshine intensifies, the open circuit voltage of PV battery basically keeps unchanged. But the short circuit current increases substantially, thus the maximum output power increases substantially.
This MPPT solar controller can intelligently regulate the working voltage of solar panels, letting the solar panels always work at Maximum Power Point of V-A curve. Compared with ordinary solar controller, this MPPT controller can increase the efficiency of PV modules by about 30%.
However, due to many different factors, such as the difference in solar panel making, the change the Sun luminance, change in temperature, the efficiency of the controller etc., the actually available increased rate is 10%-30%.
| Model | MPPT-10A |
| Rated Voltage | 12V / 24V / 48V |
| Max Load current | 10A |
| Input voltage range | 12V~40V / 24V~80V / 48V~110V |
| Length≤1m Charge loop drop |
<0.25V |
| Length≤1m Discharge loop drop |
<0.05V |
| Over voltage protection | 17V / 34V / 68V |
| Full charge cut | 13.7V / 27.4V / 54.8V |
| Low voltage cut | 10.5V~11V / 21V~22V / 42V~43V |
| Temperature compensation | -3mv/°C/cell |
| No load loss | ≤10mA |
| Max wire area | 2.5 mm2 |
| Ambient temperature | -25°C——+55°C |
| N.W./pcs | 0.26kg |
| Pcs/ ctn | 50pcs |
| G.W./ctn | 14kg |
