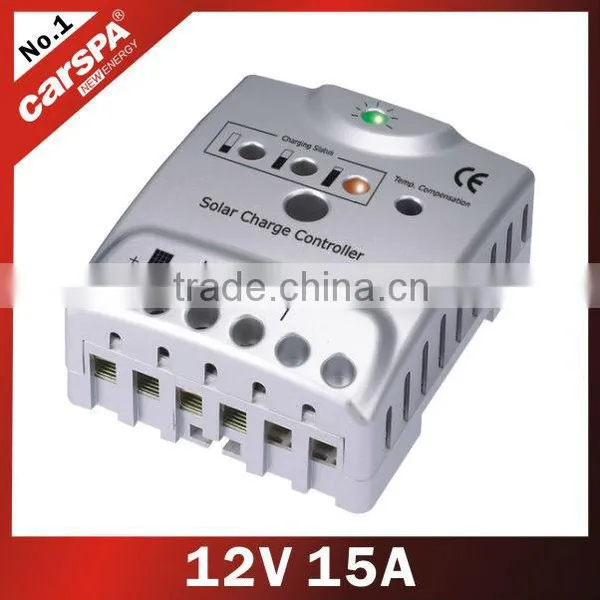

C series 12V15A solar system regulators (C1215)

Specifications

smart and new version, Mini Size
Charging current: 15Amper
DC Voltage: 12V
Suitable Solar System: 12V

C series 12V15A solar system regulators (C1215)



Why Choose Us?

1. Professional Manufacturer---9years experience
2. High Quality Products----Hot selling in European Market

3. Reliable Service---We serve for our clients with a golden team.

4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.

5. Advanced Technology---We have adopted the SMT & used the imported components.

6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.

7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc.



Introduction:
Our new charge controller are developed and engineered with the latest technical standards, representing the most innovative and benchmark technology in the industry.



Features:
1. Clear indication of charging status, easy to read
2. Maximum 16 Sq.mm connection terminals
3. Automatic protection for reverse polarity connection on batteries, solar panels and load output.
4. Full electronic protection: short circuit, reverse polarity and overload.
5. Battery remaining capacity based protection model and battery voltage based protection model.
6. Selectable charging model (gel battery and sealed battery)
7. Current back flow blocking
8. Automatic recovery after protection is initialized
9. Both wall and rail mountable
10. Automatic temperature compensation
11. 3 LED dispay 3 different charge state : >25%,25~75%,>75%



Specification:

Model	C1210	C1212	C1215
System voltage	12V
Max. charge current	10A	12A	15A
Float charge	13.7V
Boost charge	14.5V
Temp. compensation	Yes
LED indicator	3 LED indicators for different charge status
Brands	CARSPA or OEM
Case color	Blue, Silver, black optional
Unit size	8.5*7*3.5cm
Unit weight	110g
Meas. / CTN	55.5*24.5*36cm
G.W. / CTN	15.6kg
Certification	CE-EMC/LVD,RoHS
Warranty	24 months
