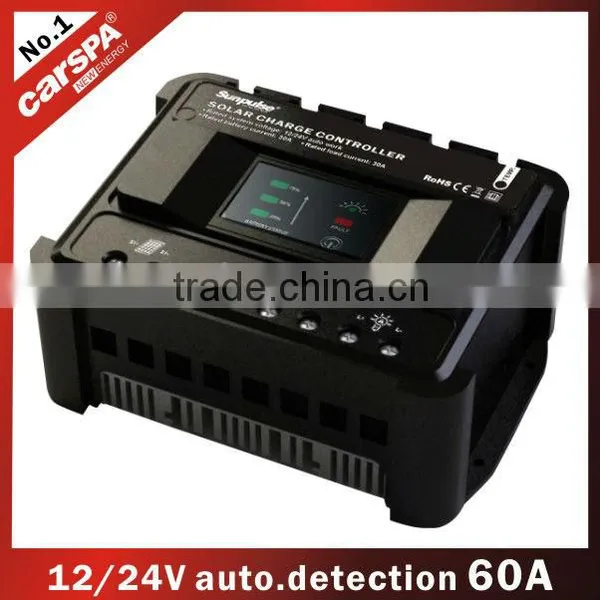

PWM Solar Charge Controller 60A With LED Indicators

PWM Solar Charge Controller 60A With LED Indicators thumbnail-1
PWM Solar Charge Controller 60A With LED Indicators photo-1
Negotiable MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Sunpulse
Model Number:
ENS12/24-60
Contact Supplier Request Quote Chat Now
Zhejiang Carspa New Energy Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Sunpulse
Model Number ENS12/24-60
Application Solar System Controller
Rated Voltage Other, 12/24V
Maximum Current 60A

Specifications

System Voltage: 12/24V auto.detection
Max.charge current: 60A
Max.load current: 60A
Pulse Width Modulation
LED indicators

PWM Solar Charge Controller 60A with LED indicators



PWM Solar Charge Controller 60A with LED indicators



Introduction:

CARSPA company 's newest PWM solar charge controller, it is  a state-of-the art device which was developed according to the latest available technical standards.



Main Features and Functions:
1. Pulse Width Modulation Technology, which offers the good efficiency of your PV system.
2. Automatically detects 12/24V system voltage.
3. LED indicators to indicate the different charge battery capacity, on/off, and fault status
4. Temperature-compensated, three-stage I-U curve charge regulation
5. Full electronic protection (reverse polarity, over-current, short-circuit, over temperature, current drawback, lightning etc.)
6. Highest efficiency
7. Positive grounding
8. Dual terminals for solar panel input
9. Battery type can be: GEL, AGM and solar battery etc.



Specifications:

Model

ENS12/24-60

Nominal voltage

12/24V, automatic recognition

Nominal battery charge current

60A

Max. PV input power

900W@12V,  1800W@24V

Max. solar input voltage Voc

>30V/48V

Min. solar input voltage Vmp

>16V/32V

Power conversion efficiency

Max. 95%

Standby power consumption

<15mA

Length≤1m charge loop drop

<0.25V

Length≤1m discharge loop drop

<0.05V

Temperature compensation

-3 mv/cell *K

Dimensions

172*126*75mm(L*W*H)

Weight

0.5kg

Ambient temperature range

-40 to +50°C

Case protection

IP22

Float charge

13.8V/27.6V

Constant voltage charge

14.6V( 14~15V settable ) / 29.2V (28~30V settable)

Low disconnect voltage

11V( 10.4~11.4V settable) / 22V( 20.8~22.8V settable)

Low reconnect voltage

12.8V( 12.2~13.2V settable) / 25.6V( 24.4~26.4V settable)

Grounding

Positive grounding

Battery type

GEL, AGM, Solar battery etc.



PWM Solar Charge Controller 60A with LED indicators



PWM Solar Charge Controller 60A with LED indicators



PWM Solar Charge Controller 60A with LED indicatorsPWM Solar Charge Controller 60A with LED indicators
