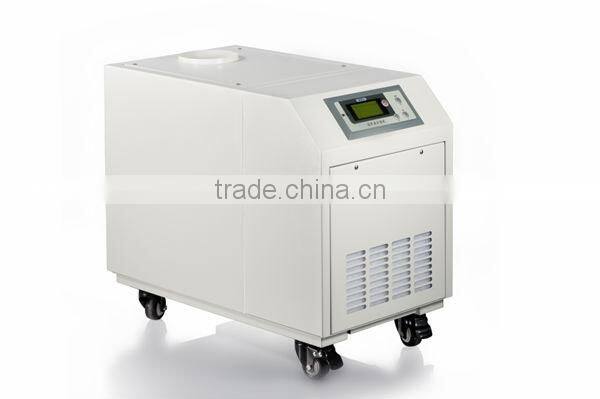

Textile manufacturing 6kg/H High Industrial Ultrasonic Ionizer Humidifier

1. Name: Wall Mounted Humidifier, Portable Small Ultrasonic Humidifier
2. Humidifying capacity: 6L/HR
3. Power: 600W
4. Voltage: 220V/50Hz
5. Steam Vent: 110mm
6. Dimension: 640*500*160mm
7. Control way: Microcomputer controling

6kg/H High Industrial Ultrasonic Humidifier for Textile manufacturing

Competitive Advantage:

Wall mounted;

Compact;

High efficiency humidifier .
Easy operation.

High atomization efficiency
Low noise,health

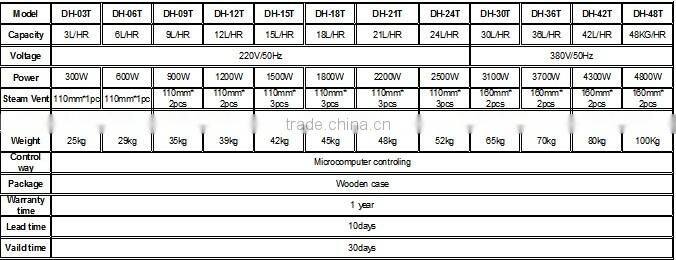

Specifications:

Working Principle :

Ultrasonic humidifiers use a piezo-electric transducer to create a high frequency mechanical oscillation in a body of water. The water tries to follow  the high frequency oscillation but cannot because of its comparative weight and mass inertia. Thus, a momentary vacuum is created on the negative oscillation, causing the water to cavitate into vapor. The transducer follows this with a positive oscillation that creates high pressure compression waves on the water's surface, releasing tiny vapor molecules of water into the air. This is an extremely fine mist, about one micron in diameter, that is quickly absorbed into the air flow. Since the mist is created by oscillation, not heat, the water temperature need not be raised. Ultrasonic humidifiers, therefore, can create instantaneous humidity, and don't have to wait for a heating element to boil the water. This precise on/off humidity control is the hallmark of ultrasonic humidifiers.

In addition, unlike wet pad humidifiers, ultrasonic units can be of comparatively small size, and still produce significant amounts of vapor. When the sensors which pick up ultrasonic humidifier has decreased below a certain level of humidity of the air ultrasonic humidifier comes into operation. When, however, capture a high degree of moisture the cool mist humidifier is turned off. In this way is very simple to maintain a high degree

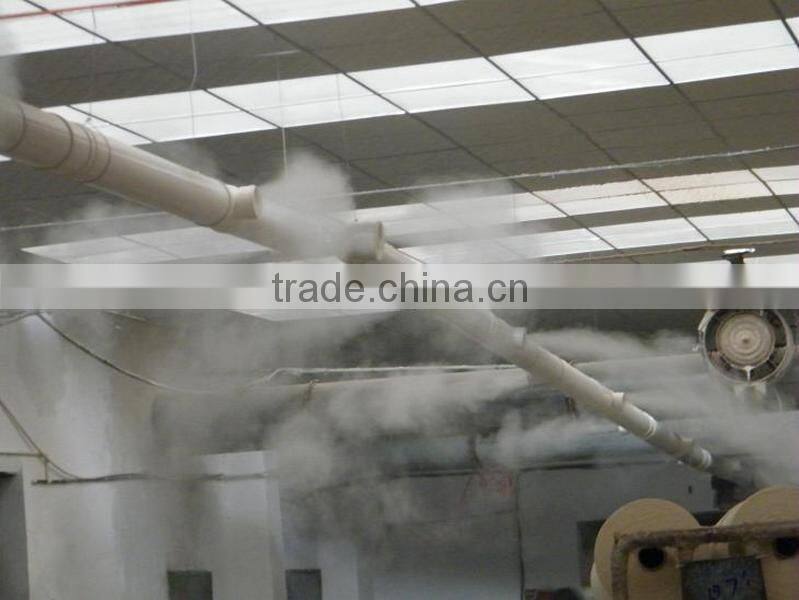

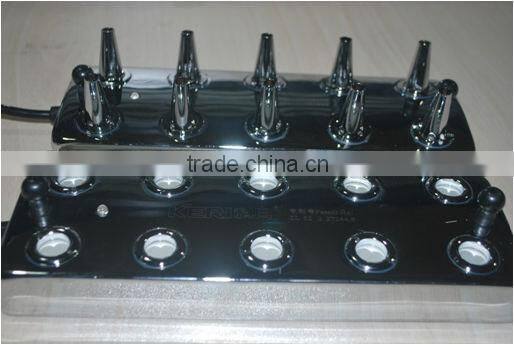

 Detail images:

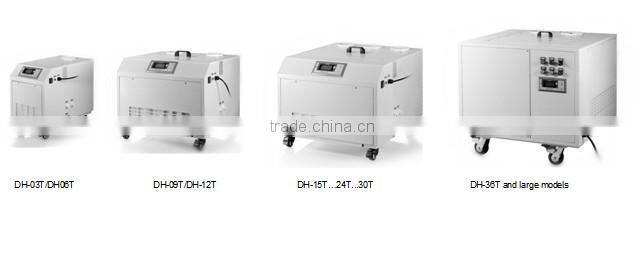

More model for selecting:

Warranty:

1.The product has one-year free warranty from the date of purchase.

2.The warranty shall not apply: (i) to any Product subjected to  accident, misuse, neglect, alteration, Acts of God, improper handling,  improper transport, improper use, improper testing or  unauthorized repair or (ii) to cosmetic problems or defects  which result from normal wear and tear under ordinary use, and  do not affect the performance or use of the Product.All warranties  are void if the product is opened, altered, and/or damaged.

3. CUSTOMER MUST PRESENT THE SALES INVOICE OR  RECEIPT FOR FREE WARRANTY SERVICES
