Best Rotary Desiccant Electric Heater Dehumidifier
How does it works
The core part of dehumidifier is cellular structure desiccant rotor, formed by special ceramic fiber composite and silica gel. The rotor is divided into two area by a seal device, one is process area(dehumidification area), the other is reactivation area. When the dehumidifier is in operation, two streams of air pass through two areas simu 14.4L/D 200M Desiccant Industrial Dehumidifier ltaneously. One is the air that will be dehumidified by silica gel in rotor, the other is hot air used to dry the running rotor so that it will be able to remove moisture again. The moisture is taken away by the hot and very humid air steam.
Part of the design brief for the Rotary Desiccant Electric Heater Dehumidifier series was to make a machine that removing as much moisture as possible with as low a running cost as possible.
We have been examining building Rotary Desiccant Dehumidifier for many years and we are happy that we developed successfully the Ya Ke Dehumidifier series, providing the best quality units for customers. Quality is very important because this type of dehumidifier is often used in dirty and demanding situations but it is important that the customer receives several years problem free use.
All they conform to both harmonised European Standards and to CE marking specifications. It’s compact, rugged, and lightweight design facilitates easy transportation by one person and is easily accommodated within space restricted areas. Dehumidifier incorporates a PTC Heater ensuring maximum drying is immediately reached and constantly maintained while the unit is running. In addition to the hours run meter, which shows the units running time, an ammeter is also incorporated in order to monitor the units drying effectiveness. Manual / Automatic control is a standard feature within the RY-M range of desiccant dehumidifiers. The spigot connectors allow quick and easy installation. All models incorporate a high efficiency patented PPS Rotor. All desiccant rotors are washable, and designed for high performance and long life(long 10 years)
Specifications
Model |
RY-3500 |
Dehumidifying capacity(20°C,60%) |
22.5kg/h |
Process air flow |
3500m3/h |
Reactivation air flow |
1300m3/h |
Applied Temperature |
-20°C-70°C |
Max power |
35KW |
Power rating |
30KW |
Voltage |
380V |
Current |
65A |
Dimension |
780*1000*1490mm |
Weight |
250kg |
Certification |
CE+RoHs |
Lead time |
20days |
Warranty time |
1 year |

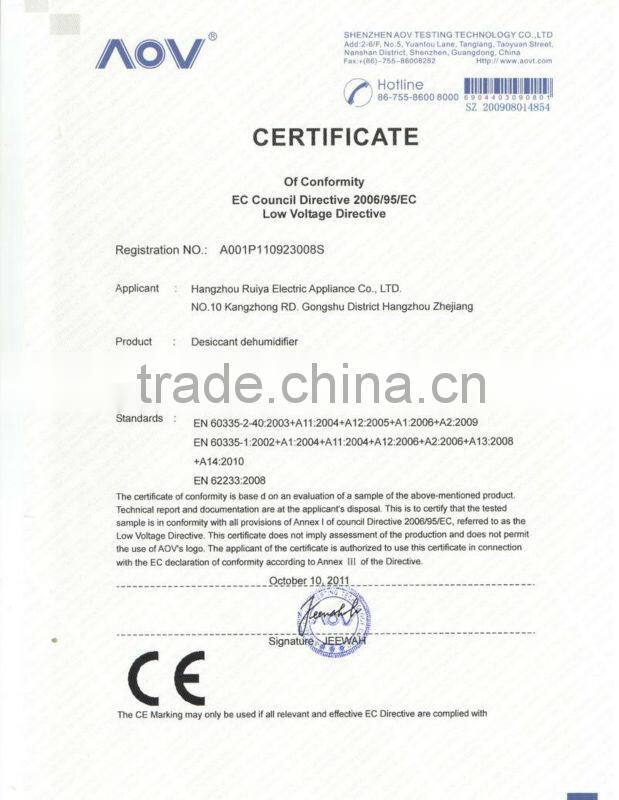

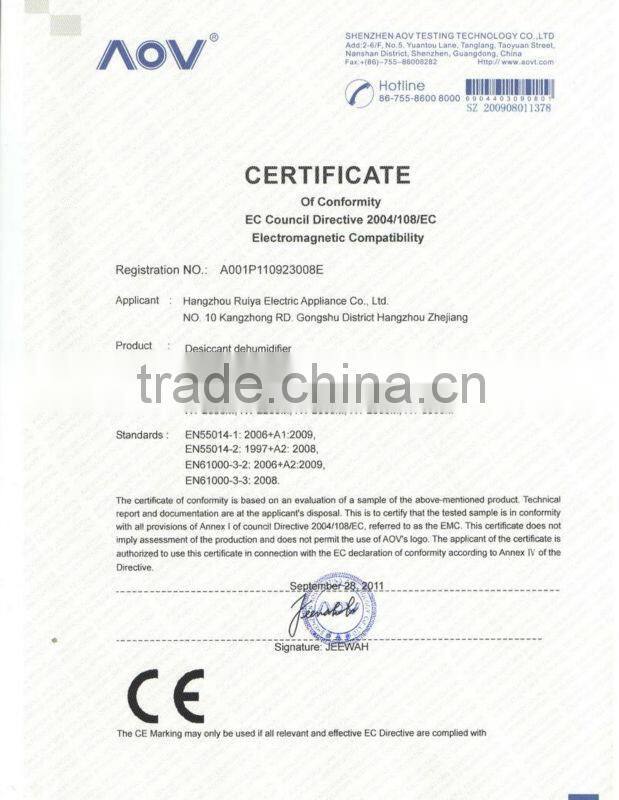

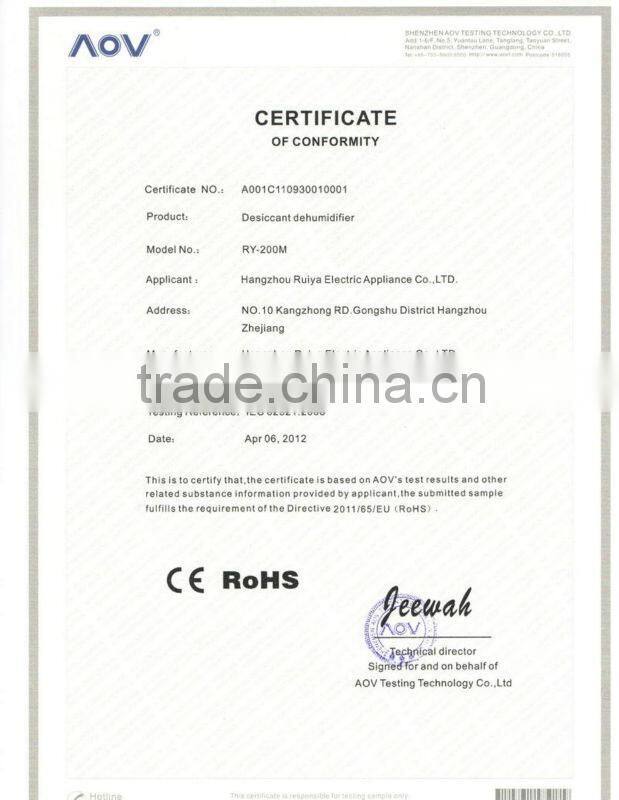

Certifications
Main Features
1.Accurate camputer contral system
2.Timer function
3.Proflute Rotor, imported from Sweeden, washable
4.Delaytime protection circuit
5.Silence, economical, saving, and easy operation
6.Fault locator system
7.Cleanable air filters helps improve the quality of air being circulated through the system at the processing air entrance&reactivation air entrance
8.Easy installation and checking.
9. 3years long warranty
Projects
Package
Installation Guidance
Warranty:
1.The product has three-year free warranty from the date of purchase.
2.The warranty shall not apply: (i) to any Product subjected to accident, misuse, neglect, alteration, Acts of God, improper handling, improper transport, improper use, improper testing or unauthorized repair or (ii) to cosmetic problems or defects which result from normal wear and tear under ordinary use, and do not affect the performance or use of the Product.All warranties are void if the product is opened, altered, and/or damaged.
3. CUSTOMER MUST PRESENT THE SALES INVOICE OR RECEIPT FOR FREE WARRANTY SERVICES
4. Service Hotline: (86) 571-86817211-811 Fax Hotline: (86)571-86817100
IMPORTANT NOTICES:
IN NO EVENT SHALL OUR COMPANY OR THE SUPPLIER BE LIABLE TO YOU OR ANY OTHER PARTY FOR ANY DIRECT INDIRECT GENERAL SPECIAL INCIDENTAL CONSEQUENTIAL EXEMPLARY OR OTHER DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT INCLUDING WITHOUT LIMITATION DAMAGES FOR INJURY LOSS OF PROPERTY BUSINESS PROFITS BUSINESS INTERRUPTION OR FROM ANY BREACH OF WARRANTY EVEN IF OUR COMPANY OR SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES IN NO CASE SHALL OUR COMPANY OR SUPPLIER S LIABILITY EXCEED THE AMOUNT YOU PAID FOR THE PRODUCT
Specifications designs and dimensions subject to change without prior notice;
