Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Wire > Prestressing Steel Strand, PC Strand

Prestressing Steel Strand, PC Strand

Name: Prestressing Steel Strand, PC Strand
Brand: GTQC STEEL
SKU: 119386153
Availability: InStock

Prestressing Steel Strand, PC Strand thumbnail-1

Prestressing Steel Strand, PC Strand thumbnail-2

Prestressing Steel Strand, PC Strand thumbnail-3

Prestressing Steel Strand, PC Strand thumbnail-4

Prestressing Steel Strand, PC Strand thumbnail-5

Prestressing Steel Strand, PC Strand thumbnail-6

Prestressing Steel Strand, PC Strand photo-1

Prestressing Steel Strand, PC Strand photo-2

Prestressing Steel Strand, PC Strand photo-3

Prestressing Steel Strand, PC Strand photo-4

Prestressing Steel Strand, PC Strand photo-5

Prestressing Steel Strand, PC Strand photo-6

Negotiable MOQ: 1 Ton (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Steel Grade:

77B/82B

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge:

12.70mm

Contact Supplier Request Quote Chat Now

Tianjin Guotai Qiancheng Iron & Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Steel Grade 77B/82B

Standard AISI, ASTM, BS, DIN, GB, JIS

Wire Gauge 12.70mm

Place of Origin Tianjin, China

Type Other, Anchorage

Application Construction

Alloy Or Not Is Alloy

Special Use Cold Heading Steel

Model Number 12.70mm

Brand Name GTQC STEEL

Product Detail

Quick Details

Steel Grade: 77B,82B
Standard: AISI, ASTM, BS, DIN, GB, JIS
Wire Gauge: 12.7mm/15.2mm/15.24mm/17.8mm
Place of Origin: Tianjin, China (Mainland)
Type: Anchorage
Application: Construction
Alloy Or Not: Is Alloy
Special Use: Cold Heading Steel
Model Number: 12.70 mm
Brand Name: GTQC STEEL
Color: Black
Packing: Coil

Packaging & Delivery

Packaging Details:	pc strand is packed with packing sheet and also with fuming wooden support.
Delivery Detail:	15-25days after receiving the deposit or L/C

Product Description

PC Stranded Steel Wire

Construction: 1*2, 1*3, 1*7, 1*19

Standard: ASTM A416, ABNT NBR 7483:2008, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006, JISG3536

Grade: 250K / 270K / 290K, Tensile Strength: 1770Mpa / 1860Mpa / 1960Mpa, the 1000h Relaxation is 2.0% max and the elongation is 4.0% min.

Categories: plain, spiral ribs, indented, galvanized, PE coated, epoxy resin coated.

Diameter: 9.3mm, 9.53mm, 11.1mm, 12.5mm, 12.7mm, 12.9mm, 15.2mm, 15.7mm, 17.8mm, 18.9mm, 21.6mm, 21.8mm

Package: Standard export packing and each package roll is 2000-4000kgs.

The third party inspection: BV SGS China national construction steel quality supervision and test centre

PC strands are used for precast concrete railway sleeper, subway track board; post-tensioned concrete beams, girders, slabs of bridges, concrete floor, underground park, of industrial buildings, commercial buildings; water projects, rock-coil anchoring, slope protection, coal mine; long span stadiums, station.

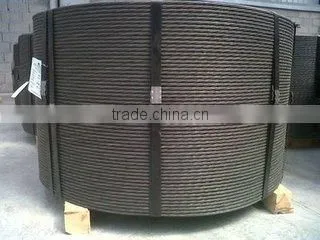

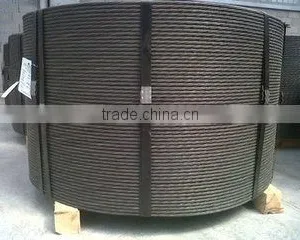

Picture of PC Stranded Steel Wire:

Specification of PC Stranded Steel Wire:

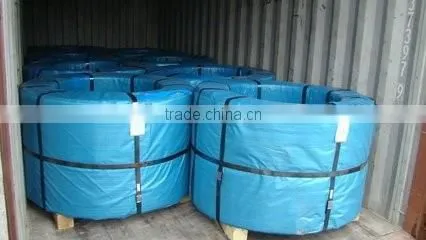

Packaging & Shipping

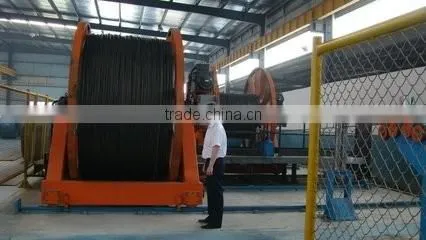

Production Flow Chart:

Application:

Company Profile:

Tianjin Guotai Qiancheng Iron & Steel Co., Ltd., based in the largest steel trading market in China, Tianjin, as a direct agent of Tiantie Zhaer Steel which is one of the largest steel manufacturers in China specializes in the export of Screw-thread steel bars for the prestressing of concrete ,anchorages and PC stranded steel wire including HRB500, PSB500, PSB785, PSB830, PSB930, PSB1080 of 15mm, 16mm, 18mm 20mm, 22mm, 25mm, 28mm, 32mm, 36mm, 40mm, 50mm, 75mm and other specifications, Left hand screw thread steel bars, Right hand screw thread steel bars and Deformed steel bars of HRB500E, HRB500 , HRB400E , HRB335 grades. Besides, we also supply construction and building use steel products including Stainless steel pipes,sheets and coil, Aluminum ingots and billets, Steel angle bars, I beam, H beam, T beam, PPGI and other steel products from major steel mills in China.

Adhering to the integrity of management and customer first concept, we will continue providing high quality products to customers with good service.
