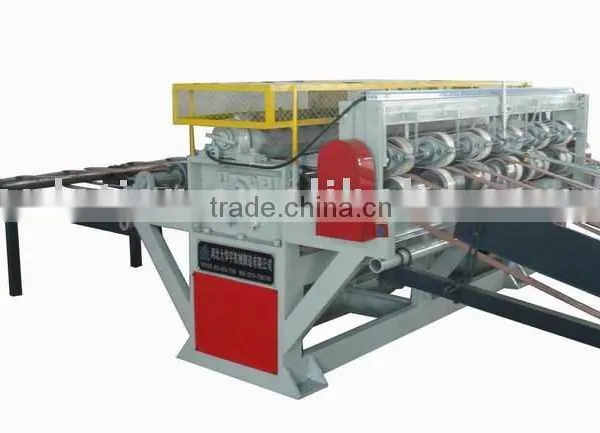

Help CenterSLC2300A NC Veneer Clipper
Related Products
Specifications
SLC2300A NC Veneer Clipper1>Max.Processing Width: 2300mm
2>Max.Processing Length: 2500mm
3>Min.Processing Length: 300mm
Main Specifications
Max. Processing Width: 2300mm
Max. Processing Length: 2500mm
Min. Processing Length: 300mm
Veneer Thickness: 0.4-4.0mm
Speed: 15-40m/min
Weight: 2500kg
Out Measure: 4800*1700*1450kg
Power: 7kW
Main Charactors
1.imported SC system makes more reliable
2.cutting different length veneer, and its size canbe choose between 300mm-2500mm
3. It cuts the veneer quickly from head of a volume different lengths' veneer, then resumes cutting board needed, the auto-switching of machine at end canbe mediate and transform
4. With the veneer peeling lathe synchronization production, and they form the production-line.
5. The depth of cutting board is between 0.5mm-4.0mm, no adjustment.
6. The conveyor belt connect with veneer peeling lathe, it can do the long-distance transportation
7. the error of board’s width is 1.5mm, that of board ‘s parallelism is only 0.1. Its precision is much better than manual
